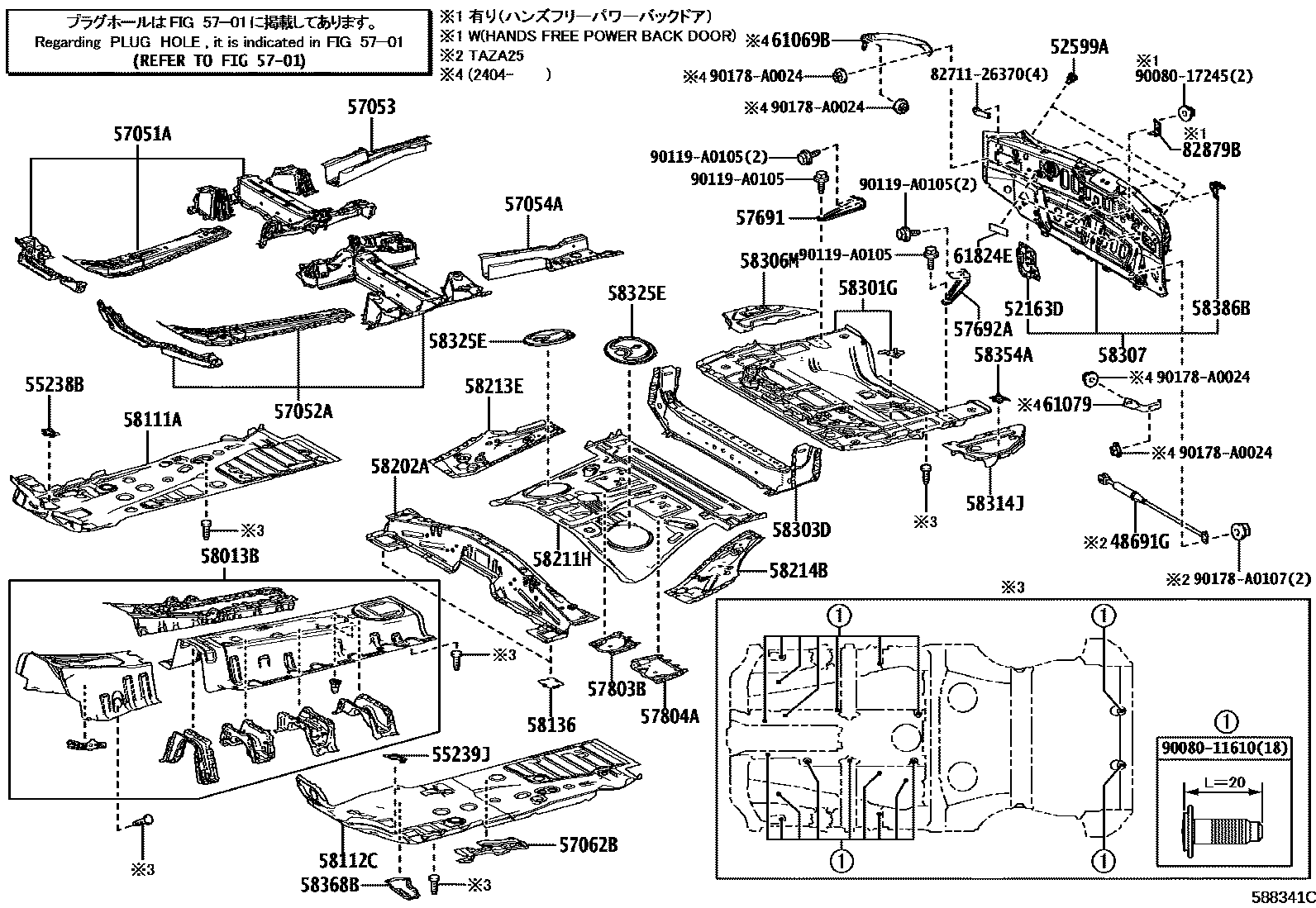

FLOOR PAN & LOWER BACK PANEL
48691GDAMPER, SUSPENSION TOWER
LUXURY PACKAGE
PREMIUM PACKAGE
52163DPLATE, REAR BUMPER REINFORCEMENT, RH
52599ASTOPPER, REAR BUMPER, UPPER
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH
57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH
57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH
57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58136COVER, FRONT FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58213EPANEL, SEAT FLOOR SIDE, RH
58301GPAN SUB-ASSY, REAR FLOOR
PUERTO RICO SPEC&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J
sub58301-F6903
58303DPANEL SUB-ASSY, REAR FLOOR PARTITION
58306MPANEL SUB-ASSY, REAR FLOOR SIDE
58314JPANEL, REAR FLOOR SIDE, LH
58354ASTAY, REAR FLOOR, LH
58368BBRACKET, FUEL TUBE, NO.2
58386BBRACKET, REAR BUMPER COVER, NO.2
61069BBRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 RH
61079BRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 LH
61824EPLATE, NOISE CONTROL, NO.1
82879BADAPTER, COMPUTER INTEGRATION BOX
8271126370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26370
9008011610
main90080-11610
9008017245
main90080-17245
90119A0105
main90119-A0105
90178A0024
main90178-A0024
90178A0107
main90178-A0107
42 parts on this diagram · 2 diagrams in section
