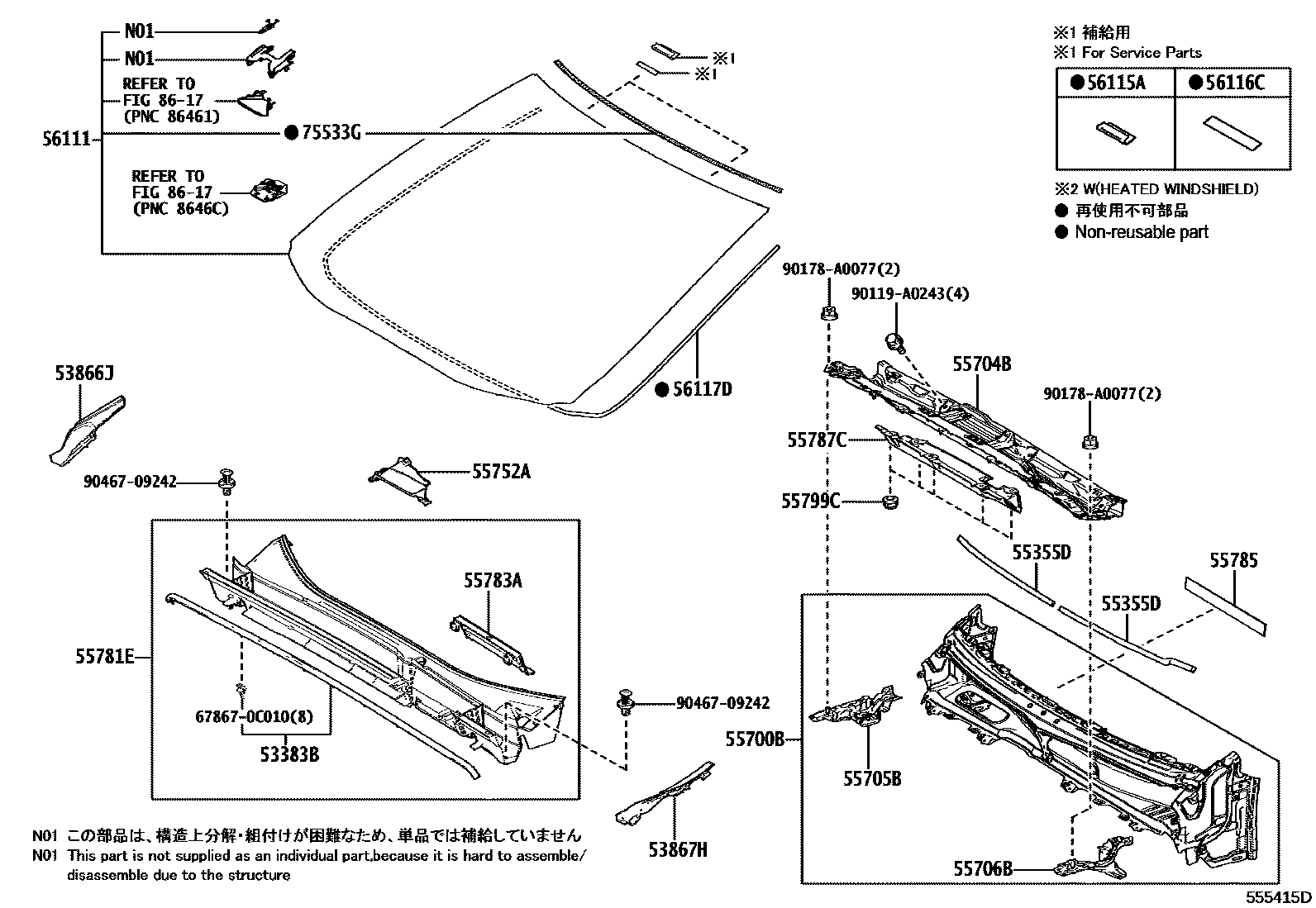

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55355DCUSHION, INSTRUMENT PANEL, NO.1
55704BPANEL SUB-ASSY, COWL VENTILATOR
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55752ASHIELD, COWL VENTILATOR SPLASH, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55785PAD, COWL OUTER PANEL, NO.2
55787CINSULATOR, COWL TOP PANEL, NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&HEAD UP DISPLAY-WITHOUT
INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
L=2952
L=2952,COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)
L=2952,COLD AREA SPEC&INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
L=2952,INTERMITTENT WIPER-WITH(RAIN SENSOR)
L=2952,INTERMITTENT WIPER-WITH(RAIN SENSOR)&HEAD UP DISPLAY-WITH
L=2952,COLD AREA SPEC
L=2952,COLD AREA SPEC&HEAD UP DISPLAY-WITHOUT
L=2952,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & MIST)&HEAD UP DISPLAY-WITHOUT
L=2952,HEAD UP DISPLAY-WITHOUT
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
90119A0243
main90119-A0243
90178A0077
main90178-A0077
9046709242
main90467-09242
24 parts on this diagram · 2 diagrams in section
