FRONT FENDER APRON & DASH PANEL
16562MSEAL, RADIATOR TO SUPPORT, NO.2
16563DSEAL, RADIATOR TO SUPPORT, NO.3
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
16594AGUIDE, RADIATOR AIR, NO.2
16595BGUIDE, RADIATOR AIR, NO.1 LH
16681APLATE, RADIATOR UPPER AIR GUIDE
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
47233BBRACKET, RESERVOIR TANK, NO.1
48691PDAMPER, SUSPENSION TOWER
PREMIUM PACKAGE
LUXURY PACKAGE
52129CARM, FRONT BUMPER, UPPER NO.2 RH
52139CARM, FRONT BUMPER, UPPER NO.2 LH
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53164BRACKET, RADIATOR SUPPORT SIDE
53174EBRACKET, RADIATOR SUPPORT SIDE
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53223CBRACKET, RADIATOR GRILLE MOUNTING, RH
53224BBRACKET, RADIATOR GRILLE MOUNTING, LH
53301GCUSHION, HOOD BUMPER
53481BBRACKET, HOOD SUPPORT, RH
53482BBRACKET, HOOD SUPPORT LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH
53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH
53705CBRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 RH
53706EBRACKET SUB-ASSY, FRONT SUSPENSION UPPER, NO.1 LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53725GAPRON, FRONT FENDER NO.2 SIDE, RH
53726DAPRON, FRONT FENDER NO.2 SIDE, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733JMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH
53734GMEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53785AGUSSET, FRONT FENDER APRON, UPPER RH
53786BGUSSET, FRONT FENDER APRON, UPPER LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835HBRACE, FRONT FENDER TO EXTENSION, RH
53836GBRACE, FRONT FENDER TO EXTENSION, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
7403
9008010105
9008010342
main90080-10342
90119A0261
main90119-A0261
90119A0451
main90119-A0451
90119A0461
main90119-A0461
90119A0514
main90119-A0514
90178A0114
main90178-A0114
90178A0119
main90178-A0119
9046707214
9046707215
9046707220
9046710216

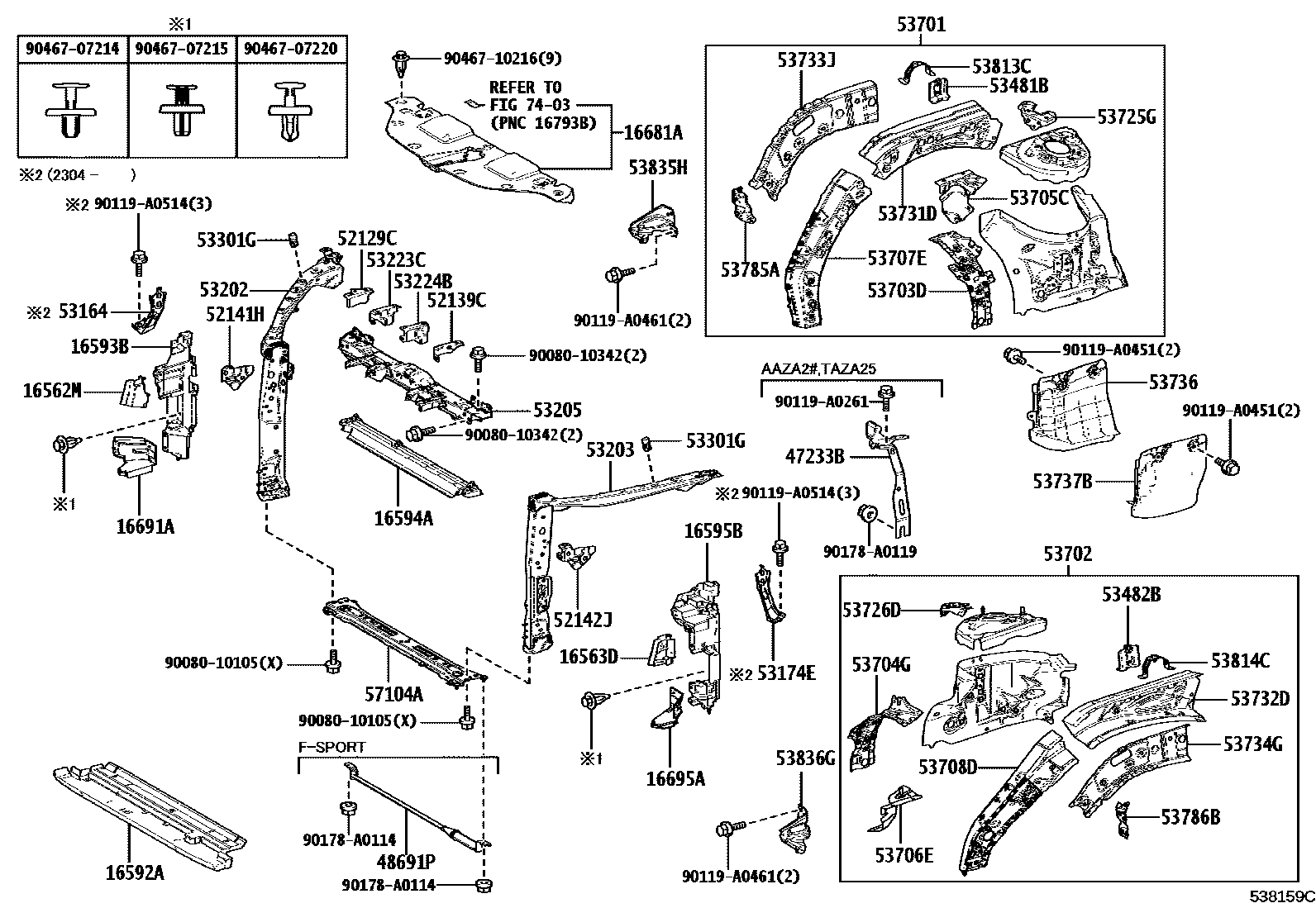

61 parts on this diagram · 2 diagrams in section
