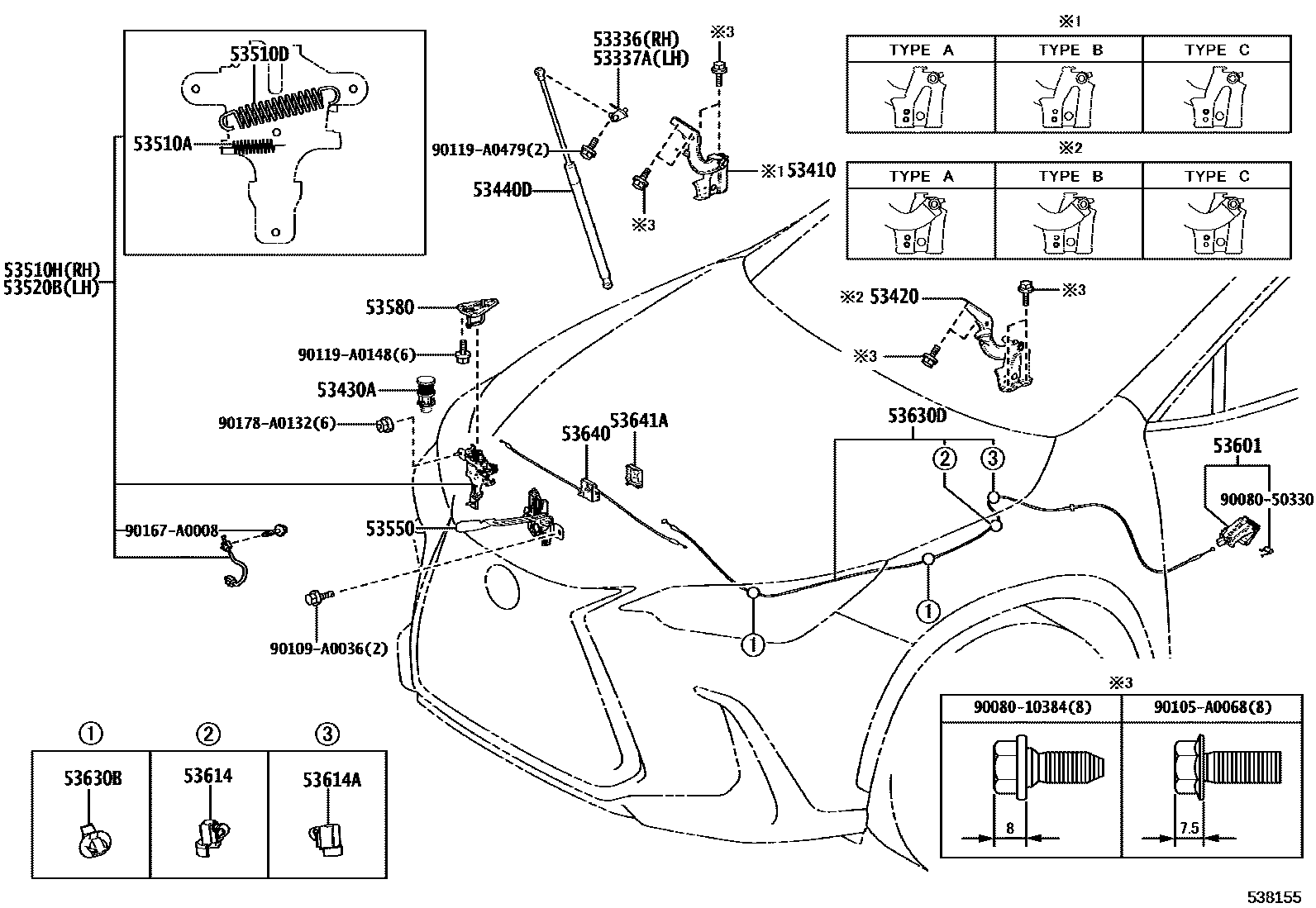

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337ABRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
53420HINGE ASSY, HOOD, LH
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
53430ASPRING, TENSION(FOR HOOD SUPPORT)
53440DSUPPORT ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.0,CW=14
53510HLOCK ASSY, HOOD, RH, W/COURTESY LAMP SWITCH
53520BLOCK ASSY, HOOD, LH
53550HOOK ASSY, HOOD AUXILIARY CATCH
53580STRIKER ASSY, HOOD LOCK
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#,3#,4#
53614CLAMP, HOOD LOCK CONTROL CABLE
53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53630DSET, CABLE & LEVER, HOODLOCK CONTROL
53640JUNCTION ASSY, HOOD LOCK CONTROL
53641ACOVER, HOOD LOCK CONTROL
9008010384
main90080-10384
9008050330
main90080-50330
90105A0068
main90105-A0068
90109A0036
main90109-A0036
90119A0148
main90119-A0148
90119A0479
main90119-A0479
90167A0008
main90167-A0008
90178A0132
main90178-A0132
27 parts on this diagram · 1 diagram in section
