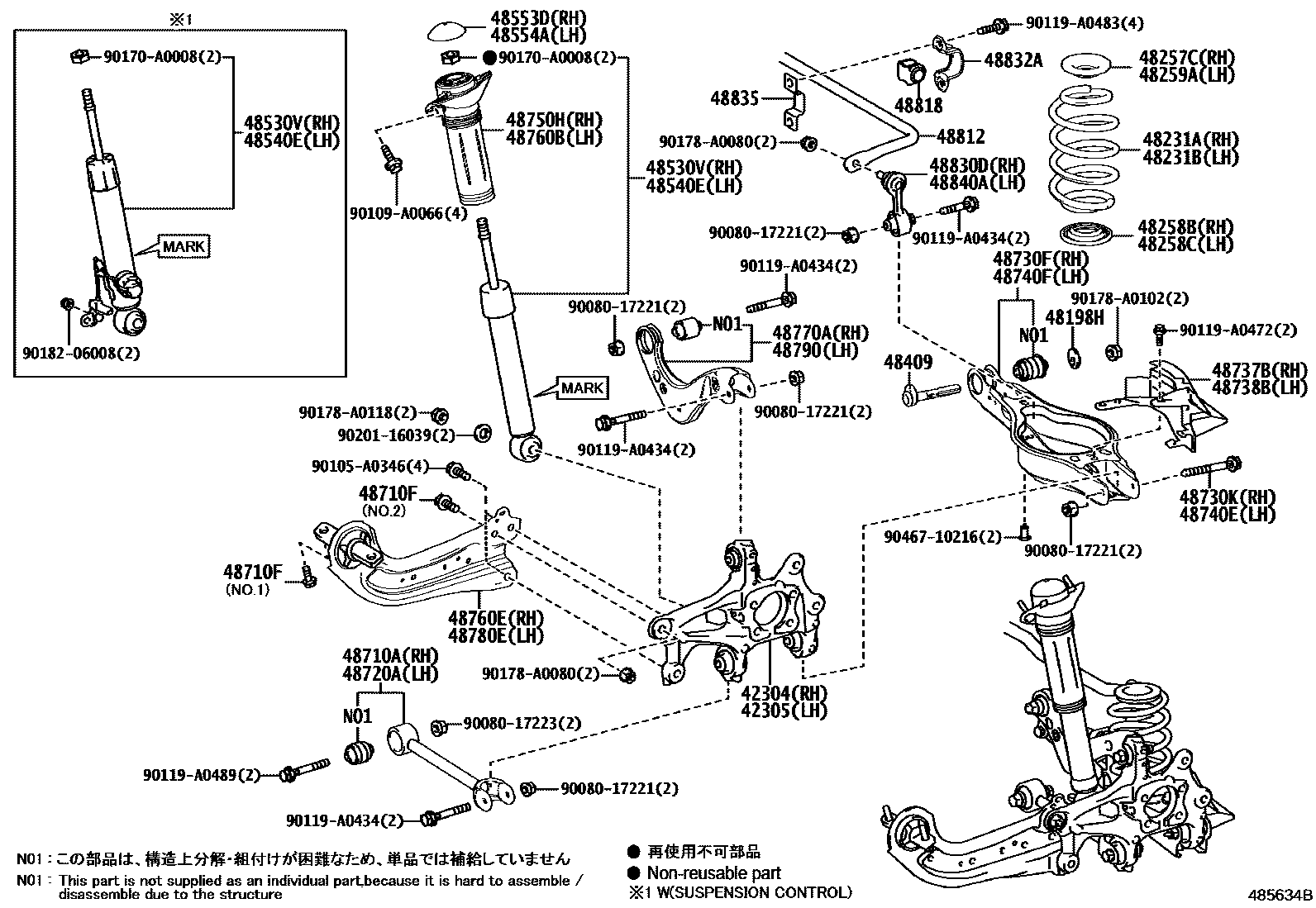

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
(L)
(J)
48231ASPRING, COIL, REAR RH
LUXURY PACKAGE
PREMIUM PACKAGE
LUXURY PACKAGE
PREMIUM PACKAGE
MEXICO SPEC
PREMIUM PACKAGE
LUXURY PACKAGE
MEXICO SPEC
PREMIUM PACKAGE
LUXURY PACKAGE
MEXICO SPEC
48231BSPRING, COIL, REAR LH
LUXURY PACKAGE
PREMIUM PACKAGE
LUXURY PACKAGE
PREMIUM PACKAGE
MEXICO SPEC
PREMIUM PACKAGE
LUXURY PACKAGE
MEXICO SPEC
PREMIUM PACKAGE
LUXURY PACKAGE
MEXICO SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
(L)
(J)
48530VABSORBER SET, SHOCK, REAR RH
MARK 48530-78170,MEXICO SPEC
MARK 48530-78270
MARK 48530-78500,MEXICO SPEC
MARK 48530-F6010
MARK 48530-F6020,STEERING COLUMN-MANUAL(TILT & TELESCOPIC)
MARK 48530-F6020
MARK 48530-F6020,PREMIUM PACKAGE
MARK 48530-F6020,LUXURY PACKAGE
MARK 48530-F6030,MEXICO SPEC
LUXURY PACKAGE
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)
PREMIUM PACKAGE
MARK 48530-F6100
MARK 48530-F6110,LUXURY PACKAGE
MARK 48530-F6110
MARK 48530-F6110,PREMIUM PACKAGE
MARK 48530-F6110,STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)
MARK 48530-F6120,MEXICO SPEC
48540EABSORBER SET, SHOCK, REAR LH
MARK 48530-78170,MEXICO SPEC
MARK 48530-78500,MEXICO SPEC
MARK 48530-F6010
MARK 48530-F6020
MARK 48530-F6020,PREMIUM PACKAGE
MARK 48530-F6020,STEERING COLUMN-MANUAL(TILT & TELESCOPIC)
MARK 48530-F6020,LUXURY PACKAGE
MARK 48530-F6030,MEXICO SPEC
PREMIUM PACKAGE
LUXURY PACKAGE
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)
MARK 48530-F6100
MARK 48530-F6110,STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)
MARK 48530-F6110,LUXURY PACKAGE
MARK 48530-F6110
MARK 48530-F6110,PREMIUM PACKAGE
MARK 48530-F6120,MEXICO SPEC
MARK 48540-78020
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
NO.2
NO.1
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
48737BCOVER, LOWER CONTROL ARM, RH NO.1
48738BCOVER, LOWER CONTROL ARM, LH NO.1
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760EARM ASSY, TRAILING, REAR RH
LUXURY PACKAGE
PREMIUM PACKAGE
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
STEERING COLUMN-MANUAL(TILT & TELESCOPIC),WITHOUT(LOCK)
LUXURY PACKAGE
PREMIUM PACKAGE
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
9008017221
main90080-17221
9008017223
main90080-17223
90105A0346
main90105-A0346
90109A0066
main90109-A0066
90119A0434
main90119-A0434
90119A0472
main90119-A0472
90119A0483
main90119-A0483
90119A0489
main90119-A0489
90170A0008
main90170-A0008
90178A0080
main90178-A0080
90178A0102
main90178-A0102
90178A0118
main90178-A0118
9018206008
main90182-06008
9020116039
main90201-16039
9046710216
main90467-10216
50 parts on this diagram · 1 diagram in section
