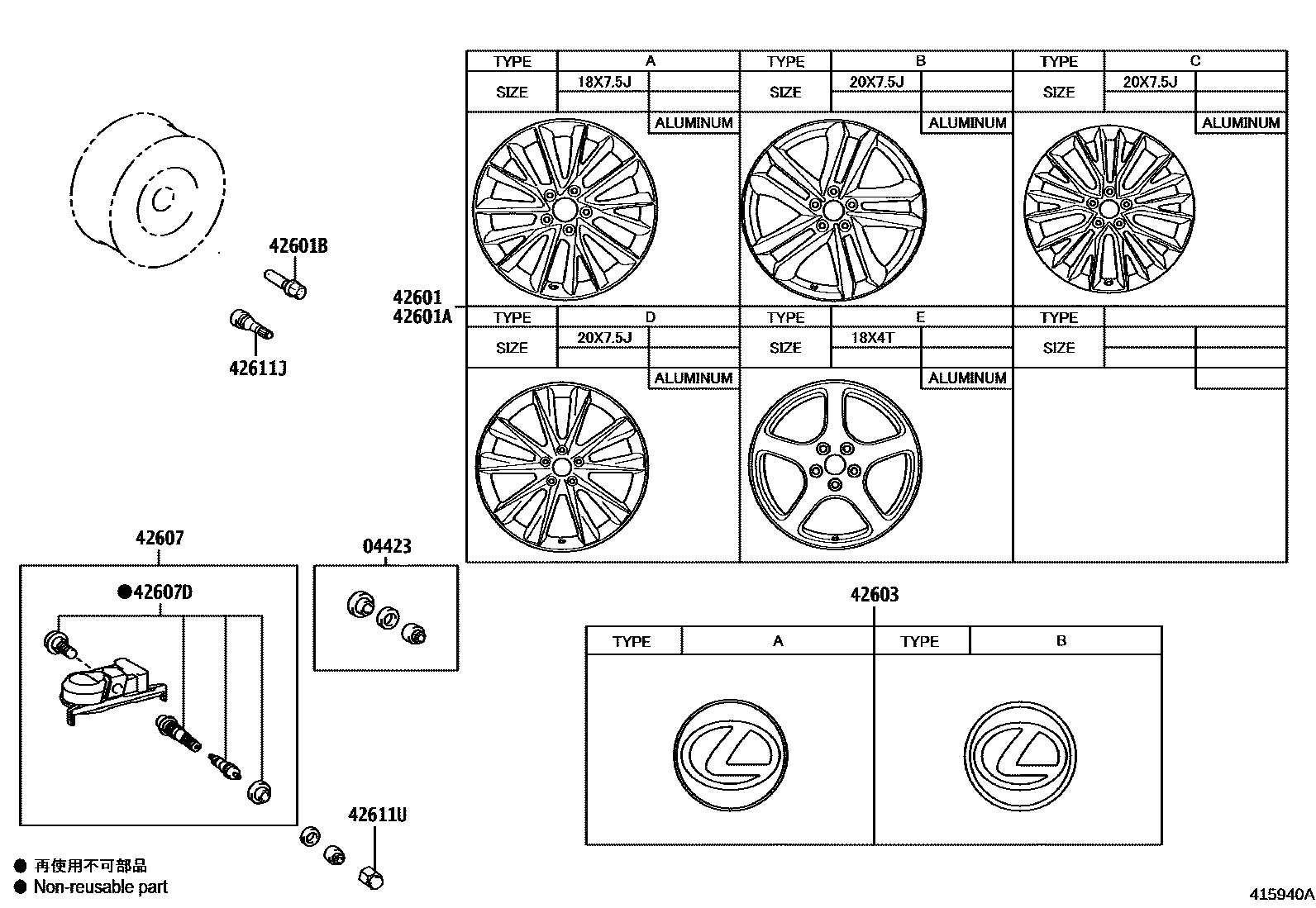

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X7.5J, #,TYPE A:REFER ILLUST.
18X7.5J, #,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J,TYPEA:REFER ILLUST.
18X7.5J, #,TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE EMT, 7.5J,TYPE A:REFER ILLUST.
20X7.5J,#,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
42601BBOLT, HUB (FOR AXLE)
WHEEL LOCKS-WITH
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE EMT, 7.5J
WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J,TYPE A:REFER ILLUST.
*ALU,WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE EMT, 7.5J,TYPE A:REFER ILLUST.
*ALU,WHEEL LOCKS-WITH&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE A:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J,TYPE A:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE EMT, 7.5J,TYPE A:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE A:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
9 parts on this diagram · 1 diagram in section
