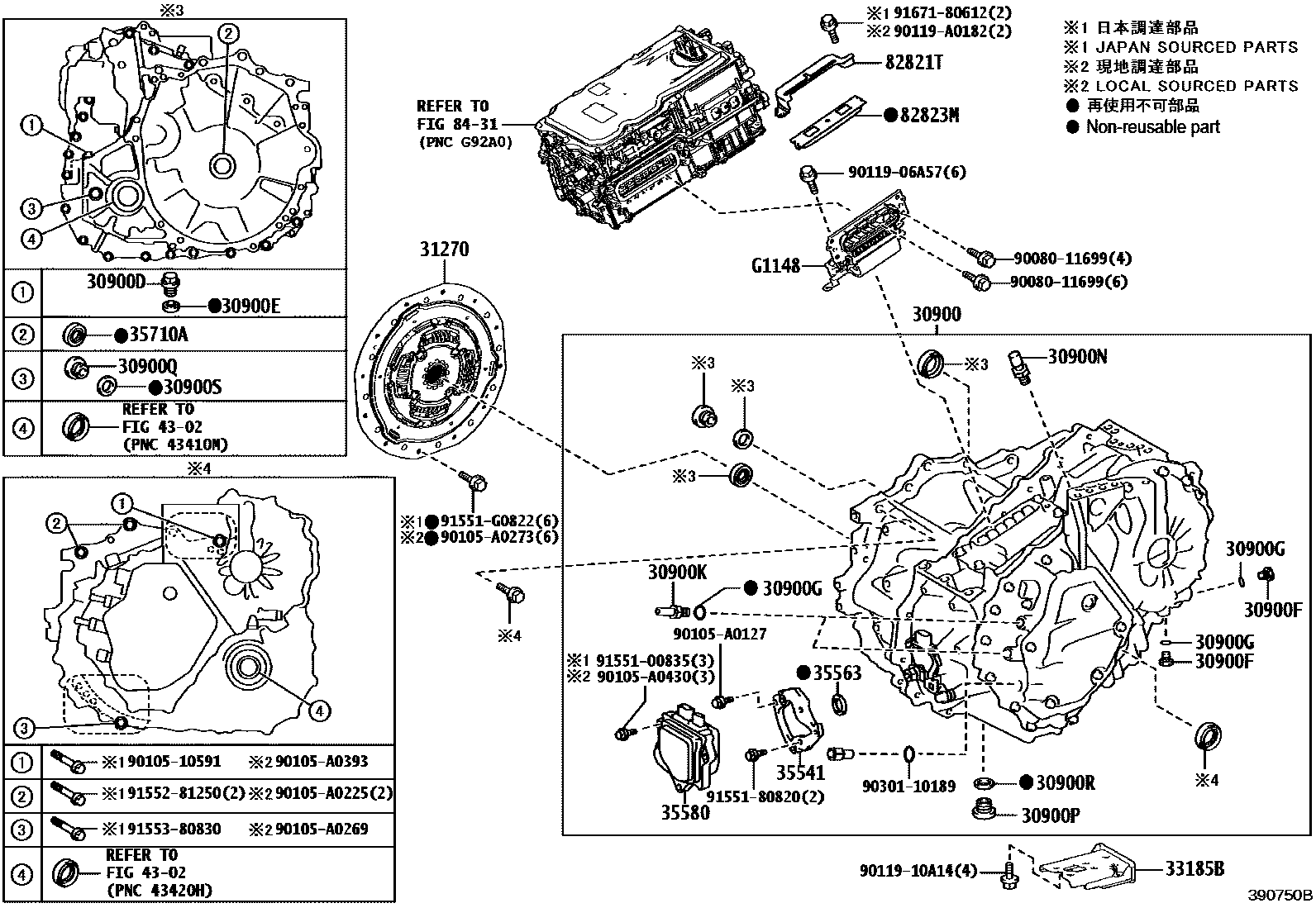

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1RR TRACTION W/TRANSAXLE MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-F6010iAAZH25202203-202404

main30900-F6020iAAZH25202404

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAAZH25202203

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAAZH25202203

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001iAAZH25202203

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189iAAZH25202203

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAAZH25202203-202404

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAAZH25202203-202404

30900PPLUG, DRAIN(HEV)

main90341-18016iAAZH25202203

30900QPLUG, FILLER(HEV)

main90341-18016iAAZH25202203

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAAZH25202203

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAAZH25202203

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-48040iAAZH25202203

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-0E010iAAZH25202203

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-78010iAAZH25202203

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iAAZH25202203

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-52010iAAZH25202203-202205

sub35580-52011

main35580-52011iAAZH25202205

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003iAAZH25202203

4302

82821TCOVER, CONNECTOR

main82821-47240iAAZH25202203

82823MCAP, TERMINAL

main82823-47040iAAZH25202203

8431

G1148CABLE, MOTOR

mainG114848110iAAZH25202203

9008011699

main90080-11699

9010510591

main90105-10591

90105A0127

main90105-A0127

90105A0225

main90105-A0225

90105A0269

main90105-A0269

90105A0273

main90105-A0273

90105A0393

main90105-A0393

90105A0430

main90105-A0430

9011906A57

main90119-06A57

9011910A14

main90119-10A14

90119A0182

main90119-A0182

9030110189

main90301-10189

9155100835

main91551-00835

9155180820

main91551-80820

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

40 parts on this diagram · 2 diagrams in section
