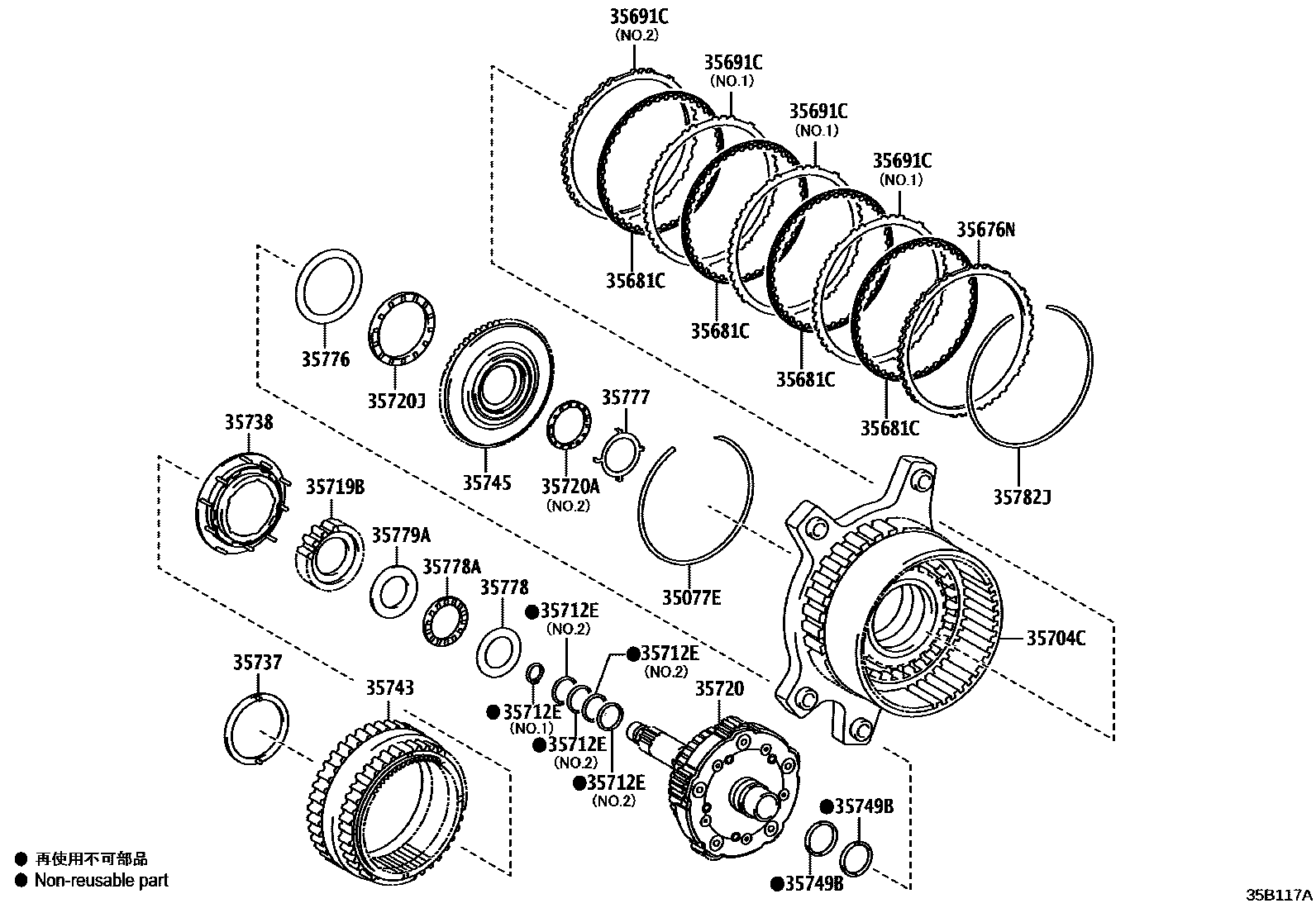

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
35676NFLANGE, BRAKE, NO.1
T=4.0,MARK 0
T=4.1,MARK 1
T=4.2,MARK 2
T=4.3,MARK 3
T=4.4,MARK 4
T=4.5,MARK 5
T=4.6,MARK 6
35681CDISC, BRAKE, NO.1
35691CPLATE, BRAKE, NO.1
NO.1
NO.2
35712ERING, INPUT SHAFT OIL SEAL
NO.1
NO.2
NO.2
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
NO.1
NO.2
NO.2
NO.1
35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)
35737WASHER, PLANETARY CARRIER THRUST
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35745FLANGE, FRONT PLANETARY RING GEAR
35749BRING, INPUT SHAFT OIL SEAL, REAR
35782JRING, SNAP
21 parts on this diagram · 4 diagrams in section
