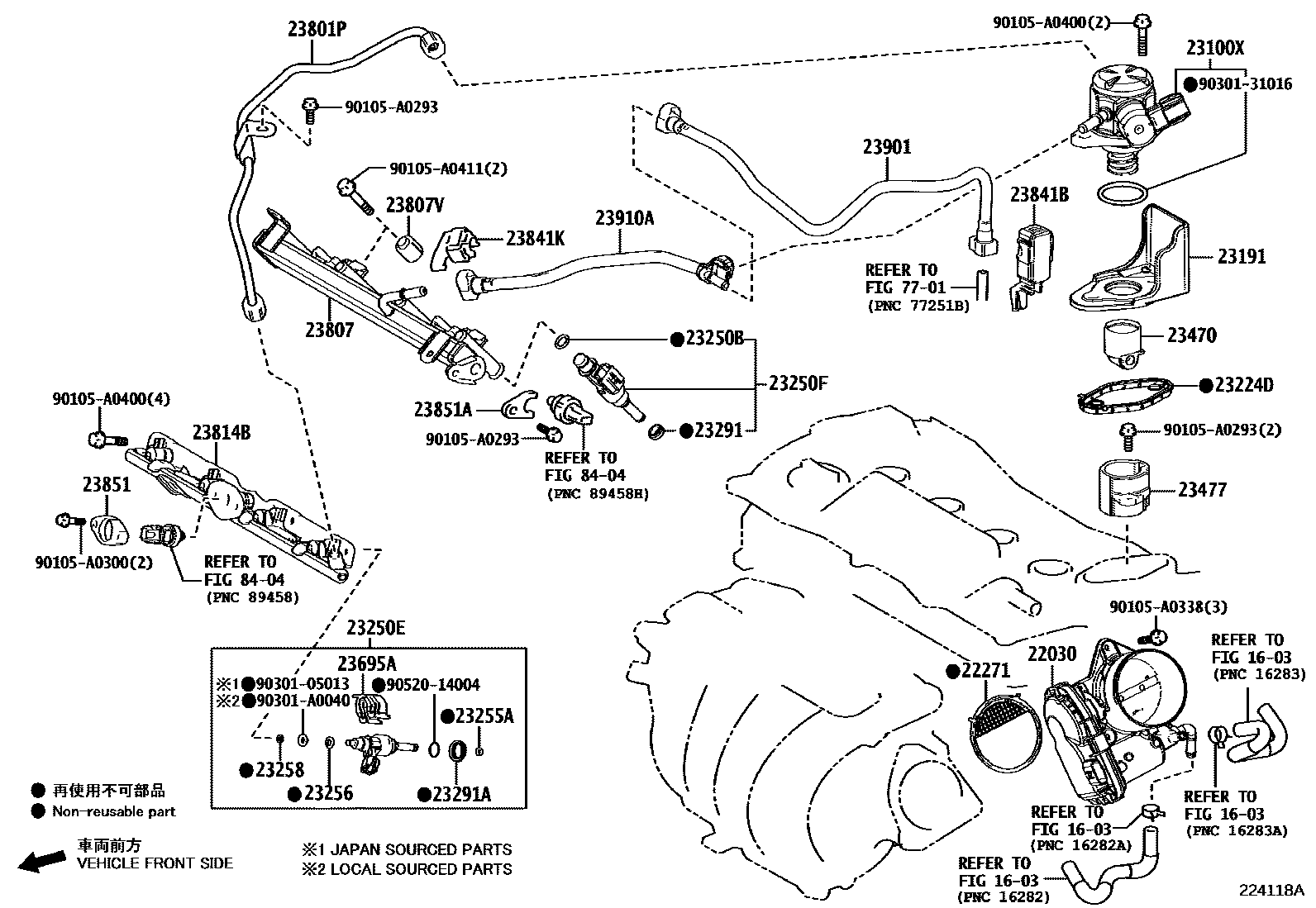

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
(J)
(L)
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
(J)
(L)
23191FLANGE, FUEL PUMP
(J)
(L)
23224DGASKET, FUEL PUMP SPACER
(J)
(L)
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 8
MARK 9
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
(J)
(J)
(L)
23255ASEAL, FUEL INJECTOR
(J)
(L)
23256RING, FUEL INJECTOR BACK-UP, NO.1
(J)
(L)
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
(J)
(L)
23477GUIDE, FUEL PUMP LIFTER
(J)
(J)
(L)
(L)
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
(J)
(J)
(L)
(L)
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23814BPIPE, FUEL DELIVERY
(J)
(L)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
(J)
(L)
23841KCLAMP, FUEL PIPE
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
(J)
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
(J)
(L)
23901TUBE SUB-ASSY, FUEL
23910ATUBE SUB-ASSY, FUEL
7701
8404
90105A0293
main90105-A0293
90105A0300
main90105-A0300
90105A0338
main90105-A0338
90105A0400
main90105-A0400
90105A0411
main90105-A0411
9030105013
main90301-05013
9030131016
main90301-31016
90301A0040
main90301-A0040
9052014004
main90520-14004
38 parts on this diagram · 3 diagrams in section
