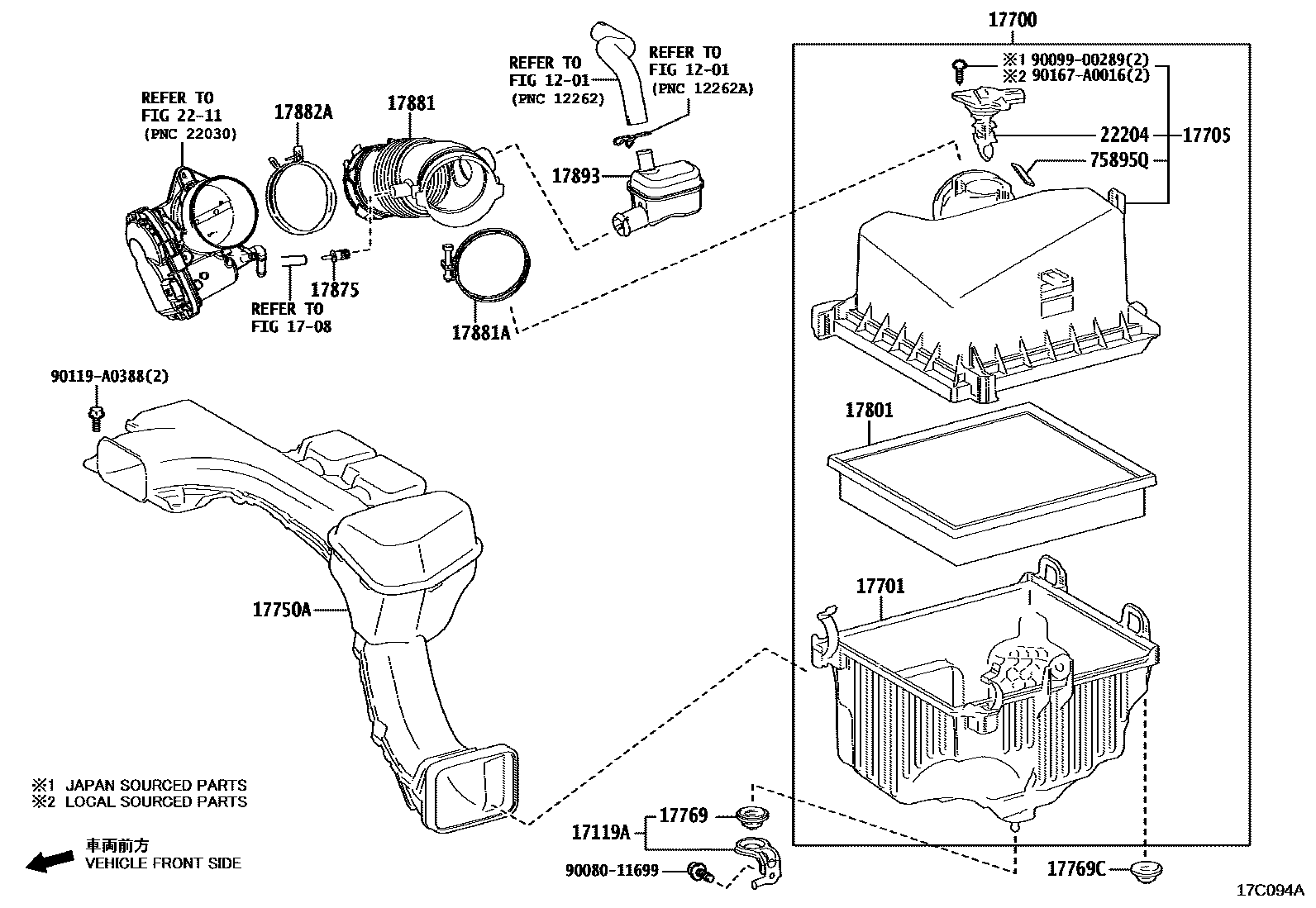

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

1201

1708

17119ABRACKET, AIR CLEANER

main17119-F0010iT24AFTS..TAZA25202203-202508

17700CLEANER ASSY, AIR

main17700-F0330iA25AFXS..AAZH25202203

main17700-F0350iT24AFTS..TAZA25202203

main17700-F0380iA25AFKS..AAZA2#202203-202508

17701CASE SUB-ASSY, AIR CLEANER

main17701-F0110iA25AFXS..AAZH25202203

main17701-F0200iA25AFKS..AAZA2#202203-202508

17705CAP SUB-ASSY, AIR CLEANER

main17705-F0130iA25AFKS..AAZA2#202203-202508

main17705-F0240iA25AFXS..AAZH25202203

main17705-F0270iT24AFTS..TAZA25202203

17750AINLET ASSY, AIR CLEANER

main17750-F0210iA25AFKS..AAZA2#202203-202508

main17750-F0220iA25AFXS..AAZH25202203

main17750-F0230iT24AFTS..TAZA25202203

17769SUPPORT, AIR CLEANER

main17769-25020iT24AFTS..TAZA25202203-202508

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iA25AFKS..AAZA2#202203-202508

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-25020iA25AFKS..AAZA2#202203-202508

(J)

main17801-77050iA25AFXS..AAZH25202203

(J)

main17801-F0020iA25AFXS..AAZH25202203

(L)

main17801-F0050iA25AFKS..AAZA2#202203-202508

(L)

17875PIPE, INTAKE AIR CONNECTOR

main17875-F0020iA25AFKS..AAZA2#202203-202508

17881HOSE, AIR CLEANER, NO.1

main17881-F0070iA25AFKS..AAZA2#202203-202508

main17881-F0080iA25AFXS..AAZH25202203

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25AFXS..AAZH25202203

main96111-10880iT24AFTS..TAZA25202203-202508

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25AFXS..AAZH25202203

main90466-71001iA25AFKS..AAZA2#202203-202508

17893RESONATOR, INTAKE AIR

main17893-F0130iA25AFKS..AAZA2#202203-202508

main17893-F0140iA25AFXS..AAZH25202203

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iT24AFTS..TAZA25202203-202508

75895QTAPE, MOULDING, NO.1

main75895-52050iAAZA2#202203-202508

9008011699

main90080-11699

9009900289

main90099-00289

90119A0388

main90119-A0388

90167A0016

main90167-A0016

22 parts on this diagram · 4 diagrams in section
