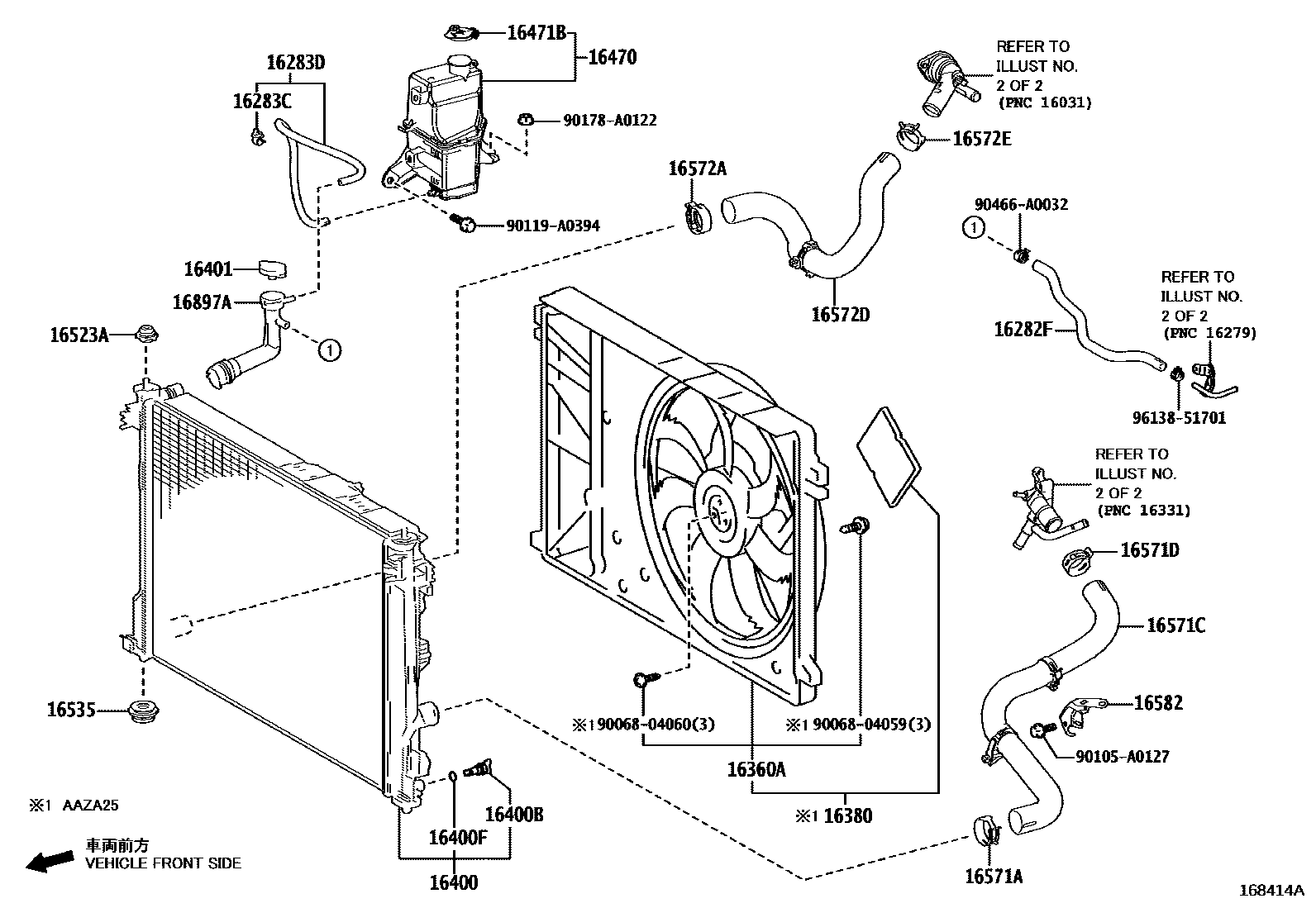

RADIATOR & WATER OUTLET
16282HOSE, WATER BY-PASS, NO.5
(J)
(L)
16282FHOSE, WATER BY-PASS, NO.5
16283HOSE, WATER BY-PASS, NO.6
16283CCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16283DHOSE, WATER BY-PASS, NO.6
16360AFAN ASSY, W/MOTOR
16380BRACKET ASSY, FAN
16400RADIATOR ASSY
MARK=0P55
16400BPLUG, RADIATOR DRAIN COCK
sub16417-21280
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16471BCAP, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16582BRACKET, RADIATOR, NO.1
16897ANECK, FILLER
9006804059
main90068-04059
9006804060
main90068-04060
90105A0127
main90105-A0127
90119A0394
main90119-A0394
90178A0122
main90178-A0122
90466A0032
main90466-A0032
9613851701
main96138-51701
30 parts on this diagram · 10 diagrams in section
