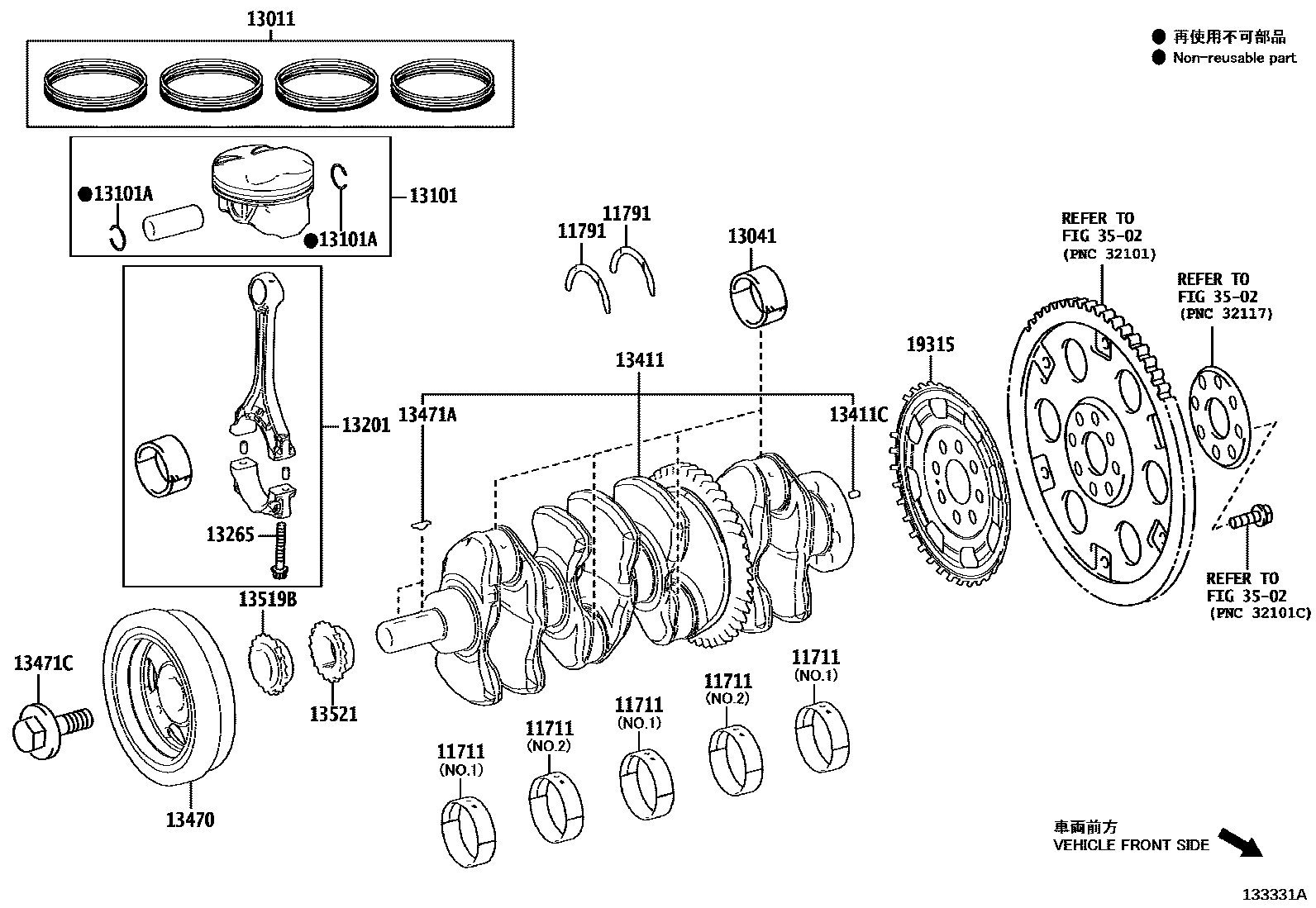

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1:REFER ILLUST.
MARK 2,NO.1:REFER ILLUST.
MARK 3,NO.1:REFER ILLUST.
MARK 4,NO.1 & NO.2,REF. R/M
MARK 5,NO.1 & NO.2,REF. R/M
MARK 1,NO.2:REFER ILLUST.
MARK 2,NO.2:REFER ILLUST.
MARK 3,NO.2:REFER ILLUST.
MARK 4,NO.2:REFER ILLUST.
MARK 5,NO.2:REFER ILLUST.
MARK 1,NO.1:REFER ILLUST.
MARK 2,NO.1:REFER ILLUST.
MARK 3,NO.1:REFER ILLUST.
MARK 4,NO.1:REFER ILLUST.
MARK 1,NO.2:REFER ILLUST.
MARK 2,NO.2:REFER ILLUST.
MARK 3,NO.2:REFER ILLUST.
MARK 4,NO.2:REFER ILLUST.
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(J)
STD
13011RING SET, PISTON
STD,(J)
STD
STD,(L)
13041BEARING, CONNECTING ROD
MARK 1,(J),REFER R/M
MARK 2,(J),REFER R/M
MARK 3,(J),REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD,(J)
STD
STD,(L)
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,(L),REFER R/M
MARK B,(L),REFER R/M
MARK C,(L),REFER R/M
13265BOLT, CONNECTING ROD
(J)
13411CRANKSHAFT
(J)
(L)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
13470PULLEY ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
13519BSPROCKET, OIL PUMP DRIVE
(J)
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(J)
(L)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(J)
(L)
3502
17 parts on this diagram · 3 diagrams in section
