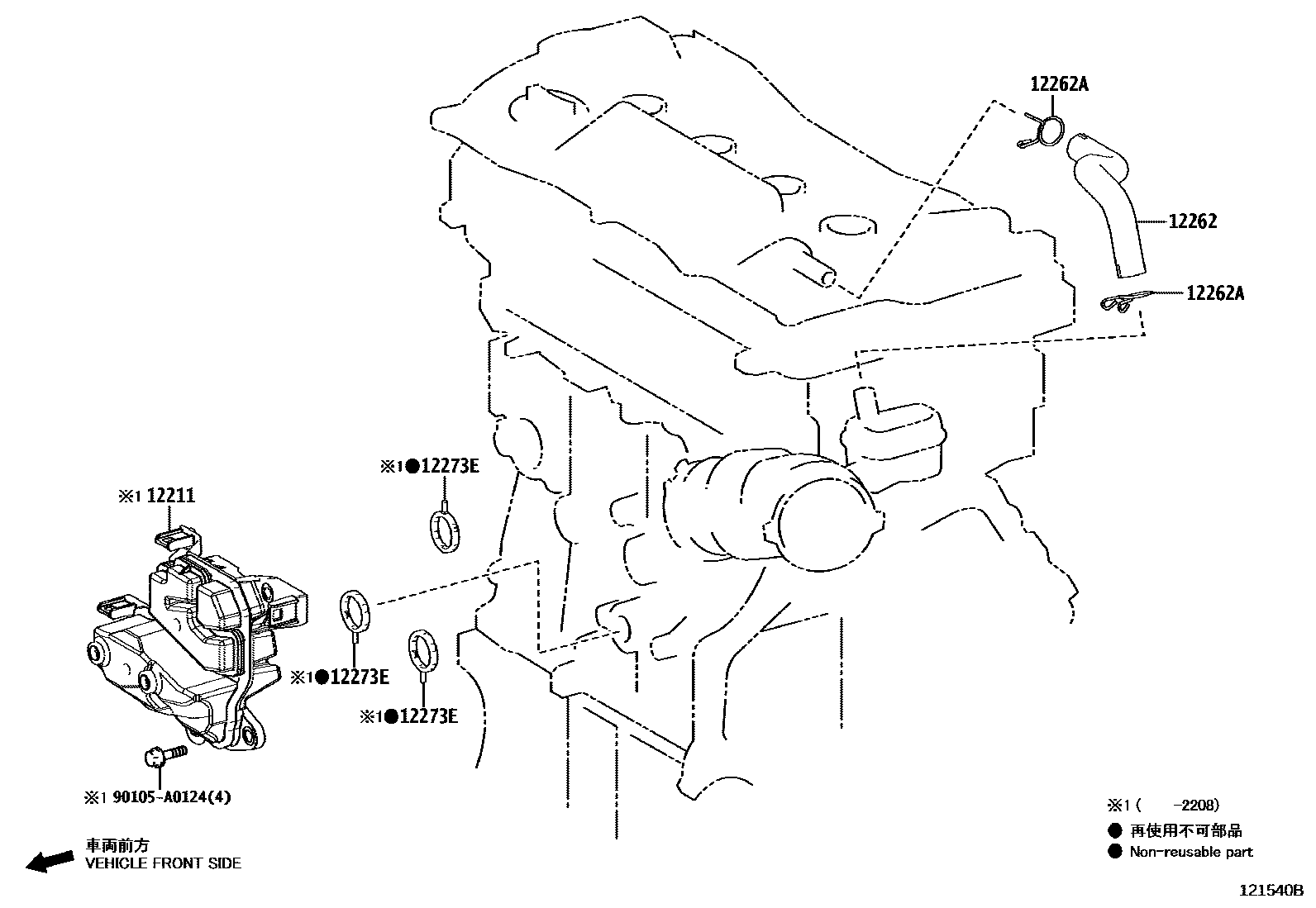

VENTILATION HOSE
12211CASE, VENTILATION, NO.1
12262HOSE, VENTILATION, NO.2
(J)
(L)
12262ACLIP(FOR VENTILATION HOSE NO.2)
12273EGASKET(FOR VENTILATION CASE)
90105A0124
main90105-A0124
5 parts on this diagram · 3 diagrams in section
