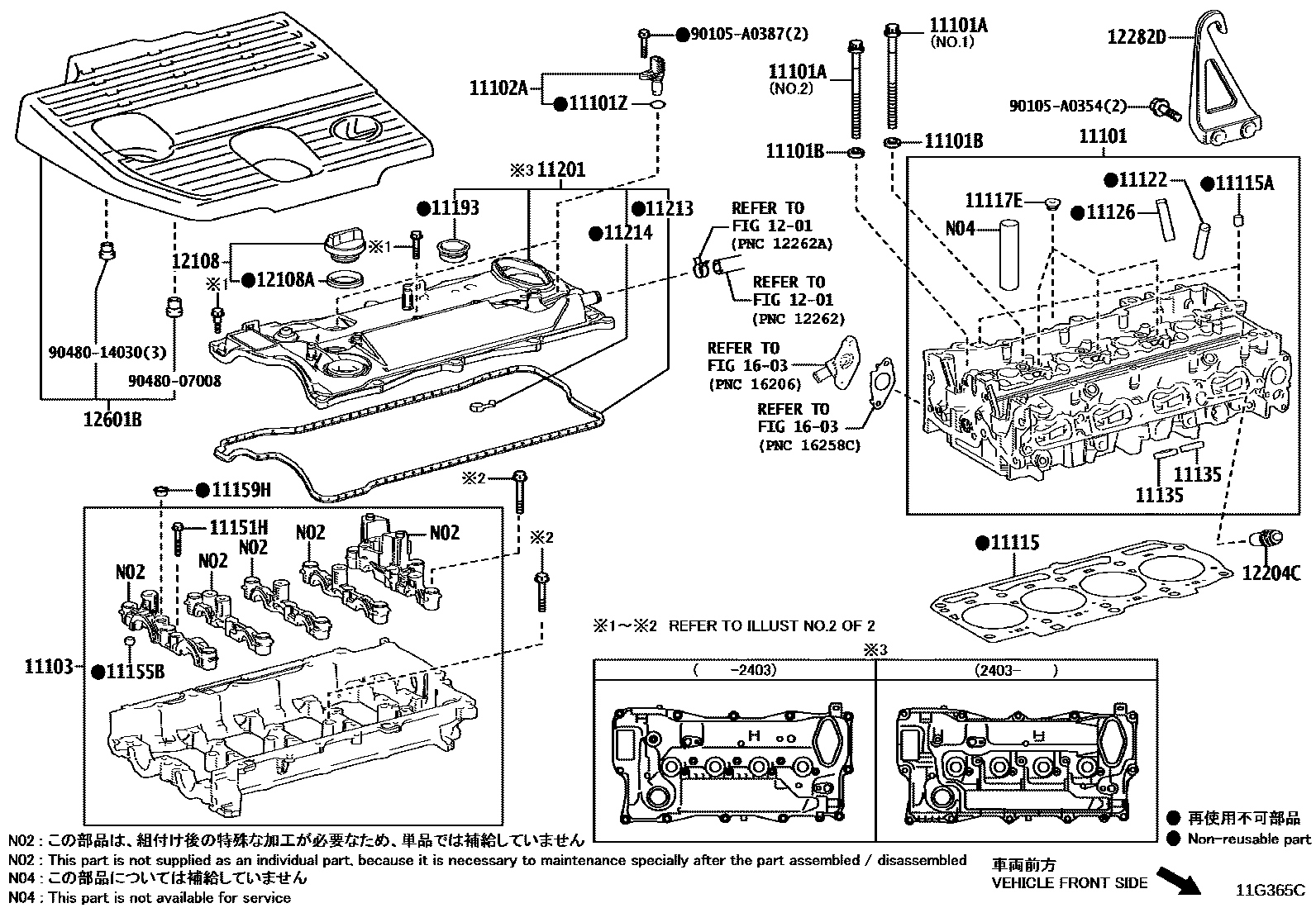

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
(L)
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1,(J)
N0.2
NO.2,(J)
NO.2
NO.1:REFER ILLUST.
NO.1,(L)
NO.2:REFER ILLUST.
NO.2,(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
(J)
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
(J)
(L)
11115GASKET, CYLINDER HEAD
(J)
(L)
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11122BUSH, INTAKE VALVE GUIDE
STD,*694
STD
STD,*695
O/S 0.05
O/S 0.05,*694
O/S 0.05,*695
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD
STD,*694,*695
STD,*694
STD,*694
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11155BPIN, RING
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
(J)
(L)
11213GASKET, CYLINDER HEAD COVER
(J)
(L)
11214GASKET, CYLINDER HEAD COVER, NO.2
(J)
(L)
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12204CVALVE SUB-ASSY, VENTILATION
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
(J)
(J)
(L)
(L)
1603
90105A0354
main90105-A0354
90105A0387
main90105-A0387
9048007008
9048014030
30 parts on this diagram · 6 diagrams in section
