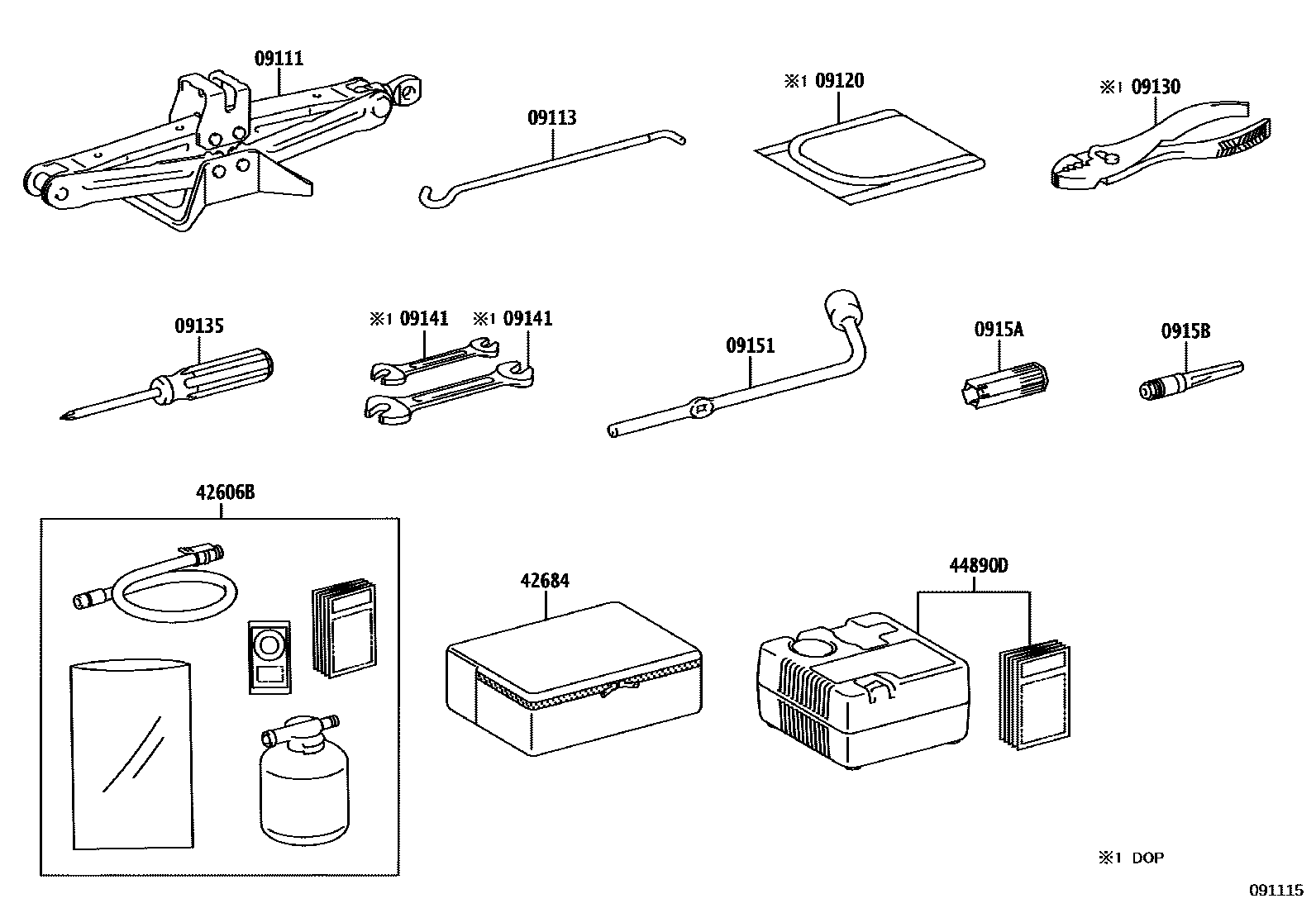

STANDARD TOOL

09111JACK SUB-ASSY

main09111-0W151

09113HANDLE, JACK

main09113-08020

09120BAG, TOOL

main09120-48010

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main99915-10700iAAZA2#,AAZH25,TAZA25202203-202508

09141SPANNER

main09141-60010

main09141-60020

09151WRENCH, HUB BOLT BOX

main09151-F6010

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-F6010

0915BPIN, WHEEL GUIDE

main0915B-F6010

42606BREPAIR KIT, TUBELESS TIRE

42684CASE, TIRE REPAIR KIT

main42684-78010

44890DCOMPRESSOR ASSY, AIR

12 parts on this diagram · 1 diagram in section
