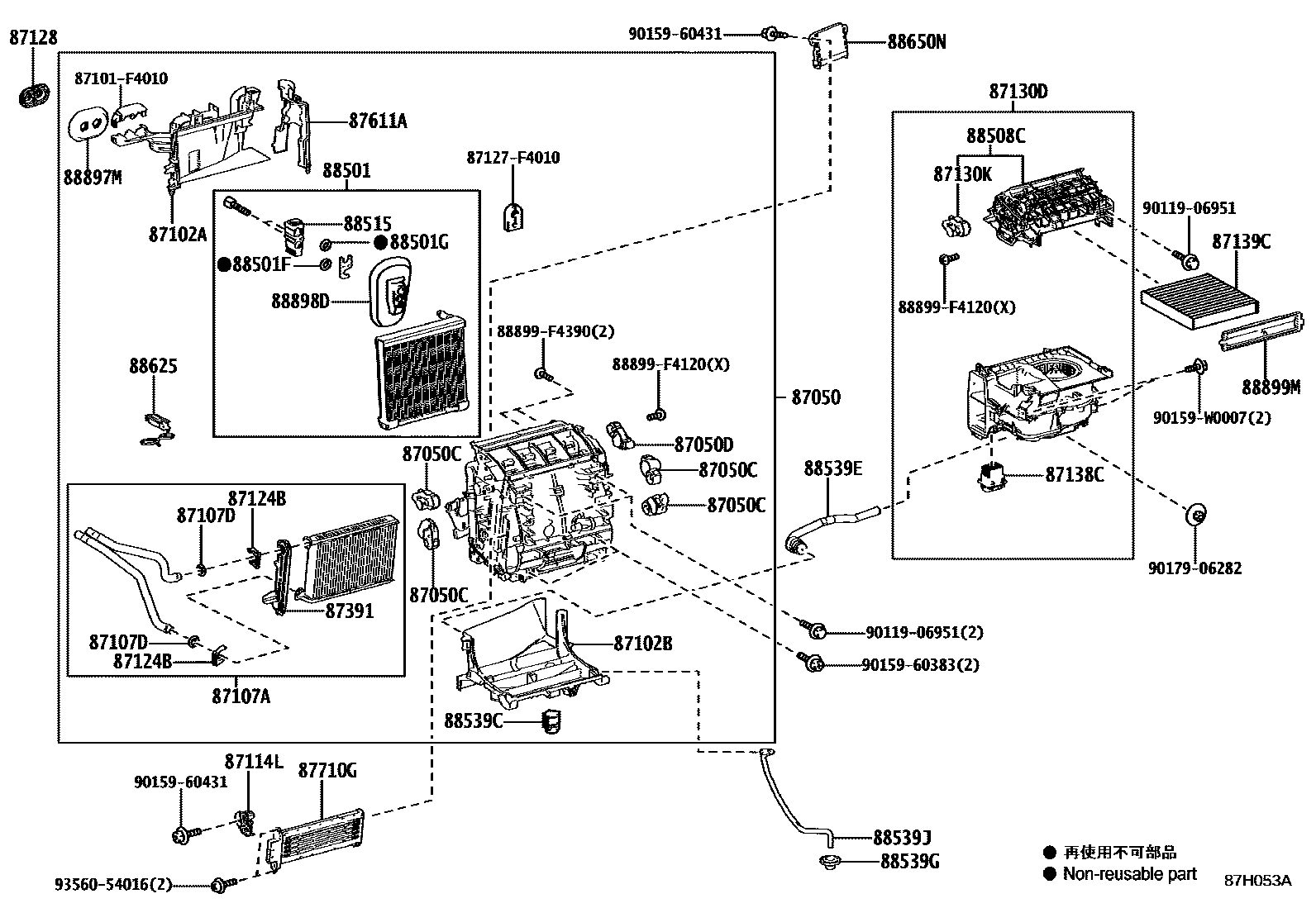

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87102ACASE SUB-ASSY, RADIATOR
87102BCASE SUB-ASSY, RADIATOR, NO.2
87107AUNIT SUB-ASSY, HEATER RADIATOR
87107DRING, O (FOR HEATER RADIATOR UNIT)
ID=15.47,OD=22.27
87128GROMMET, HEATER
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
POLLEN FILTER,OE PART
DEODORANT FILTER
POLLEN FILTER
87391COVER, BLOWER MOTOR
87611ACASE, HEAT EXCHANGER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.82,OD=14.46
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=14,OD=17.64
ID=13.4,OD=18.2
88508CFILTER SUB-ASSY, AIR
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539EHOSE, COOLER UNIT DRAIN, NO.3
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88650NAMPLIFIER ASSY, AIR CONDITIONER
88898DGROMMET
88899MPLATE, COVER(FOR AIR FILTER)
87101F4010BRACKET SUB-ASSY, VISCOUS HEATER NO.1
main87101-F4010
87127F4010PACKING, HEATER AIR DAMPER
main87127-F4010
88899F4120COVER, EVAPORATOR
main88899-F4120
88899F4390COVER, EVAPORATOR
main88899-F4390
9011906951
main90119-06951
9015960383
main90159-60383
9015960431
main90159-60431
90159W0007
main90159-W0007
9017906282
main90179-06282
9356054016
main93560-54016
41 parts on this diagram · 4 diagrams in section
