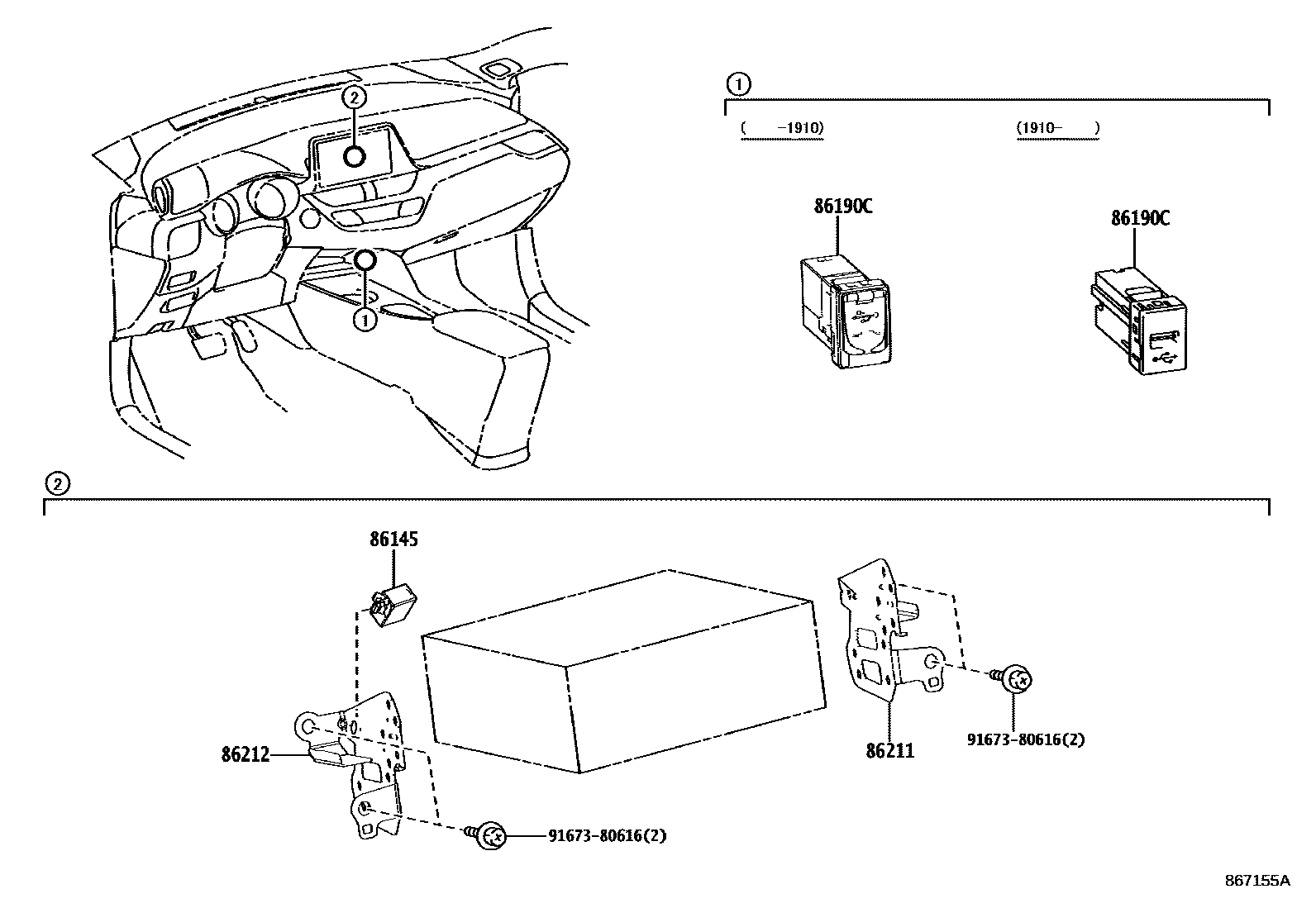

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1CONDENSER

86145CONNECTOR, ANTENNA MALE

main86145-52010iZGX10201801-201806

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12060iZGX10201910-202008

sub86190-12061

main86190-12061iZGX10202009-202212

main86190-42040iZGX10201801-201910

86211BRACKET, RADIO, NO.1

main86211-10150iZGX10201801-201806

86212BRACKET, RADIO, NO.2

main86212-10150iZGX10201801-201806

9167380616

main91673-80616

5 parts on this diagram · 2 diagrams in section
