AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-47050iZGX10201801-202212

89170ACOMPUTER ASSY, AIRBAG

main89170-10080iZGX10201801-201910

main89170-10110iZGX10201910-202109

main89170-10220iZGX10202109-202212

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iZGX10201801-202212

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iZGX10201801-202212

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iZGX10201801-202212

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-28030iZGX10201801-201910

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-28030iZGX10201801-201910

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-28040iZGX10201801-202109

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-28040iZGX10201801-202109

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-47050iZGX10201801-202212

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-47050iZGX10201801-202212

89835SENSOR, DOOR SIDE AIRBAG, LH

main8983A-47010iZGX10201801-202212

89865SENSOR, DOOR SIDE AIRBAG, RH

main8983A-47010iZGX10201801-202212

89952COMPUTER, OCCUPANT DETECTION

main89952-12030iZGX10201807-202212

main89952-47010iZGX10201801-201806

sub89952-12030

9011908C89

main90119-08C89

9155380620

main91553-80620

91553A0620

main91553-A0620

9415180600

main94151-80600

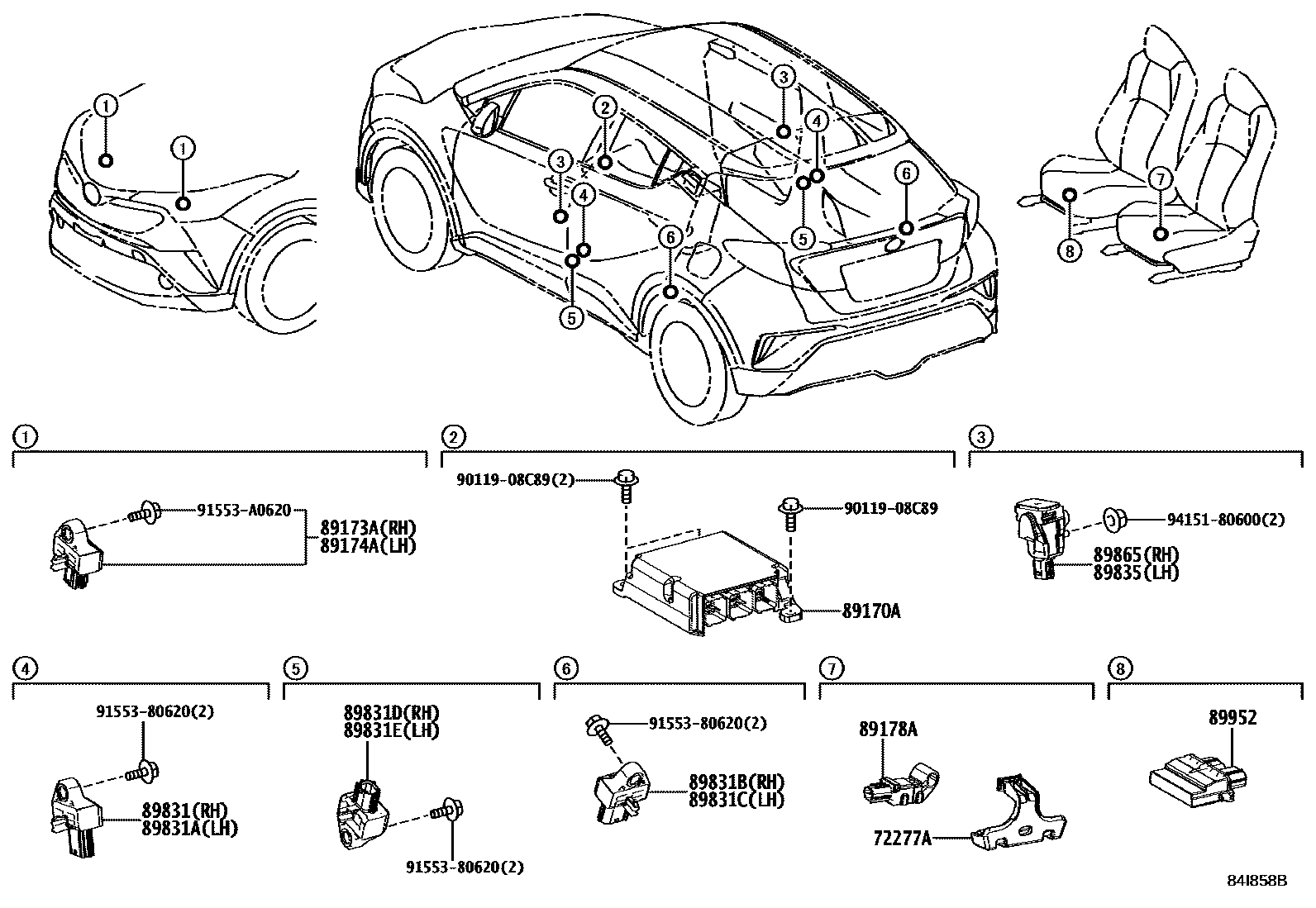

18 parts on this diagram · 1 diagram in section
