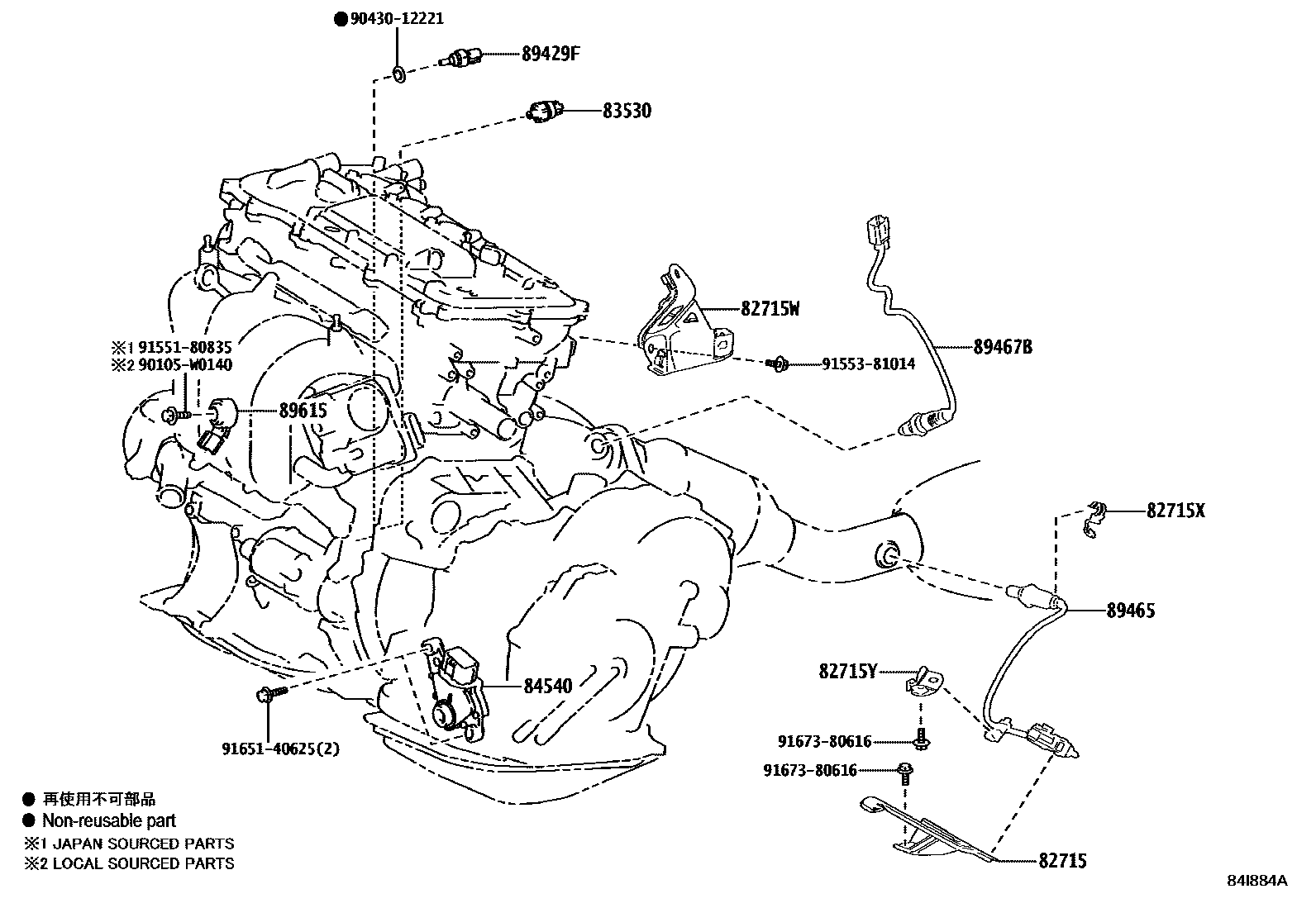

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1COWL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1SEAT 0009 1DOOR & ROOF 0010 1FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-10330iZGX10201801-202212

82715WBRACKET, WIRING HARNESS CLAMP

main82715-F4200iZGX10201801-202212

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-44510iZGX10201801-202212

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-47690iZGX10201801-202212

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZGX10201801-202212

DENSO,*369

main83530-60020iZGX10201801-202212

YAZAKI,*369

84540SWITCH ASSY, NEUTRAL START

main84540-28030iZGX10201801-202212

89429FSENSOR, TEMPERATURE

main89429-12010iZGX10201801-202212

89465SENSOR, OXYGEN

main89465-10080iZGX10201801-202212

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZGX10201801-202212

89615SENSOR, KNOCK CONTROL

main89615-20090iZGX10201801-202212

90105W0140

main90105-W0140

9043012221

main90430-12221

9155180835

main91551-80835

9155381014

main91553-81014

9165140625

main91651-40625

9167380616

main91673-80616

16 parts on this diagram · 10 diagrams in section
