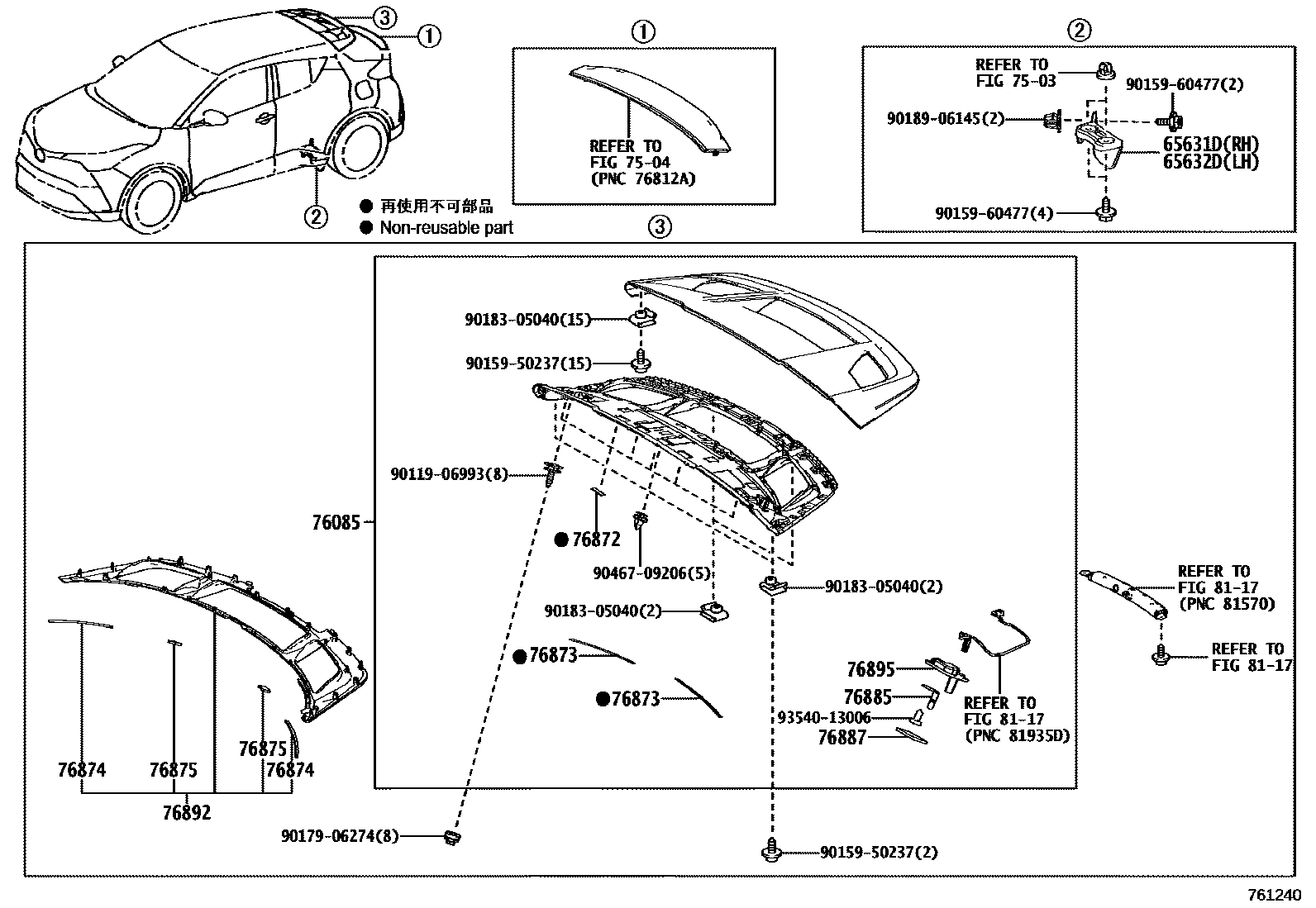

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
7503
7504
76085SPOILER SUB-ASSY, REAR
WHITE PEARL CS.,070
WHITE,2NE ,2NG ,2NJ
PLATINUM WHITE PEARL MC.,089
MEYAL STREAM ME.,1K0 ,2TA
MEYAL STREAM ME.,1K0
GRAY ME.,1G3
BLACK MC.,209
BLACK,2NA ,2NB ,2NH ,2NK ,2TB ,2TC ,2VP
BLACK,2NA ,2NF ,2NK ,2RV
RED MC.,3T3
EMOTIONAL RED 2,3U5
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
CYAN METALLIC,8W9
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76875PROTECTOR, REAR SPOILER, NO.4
76885RETAINER, REAR SPOILER, NO.5
76887SEAL, REAR SPOILER
76892SPOILER, REAR NO.2
76895PROTECTOR, REAR SPOILER, NO.5
8117
9011906993
main90119-06993
9015950237
main90159-50237
9015960477
main90159-60477
9017906274
main90179-06274
9018305040
main90183-05040
9018906145
main90189-06145
9046709206
main90467-09206
9354013006
main93540-13006
22 parts on this diagram · 2 diagrams in section
