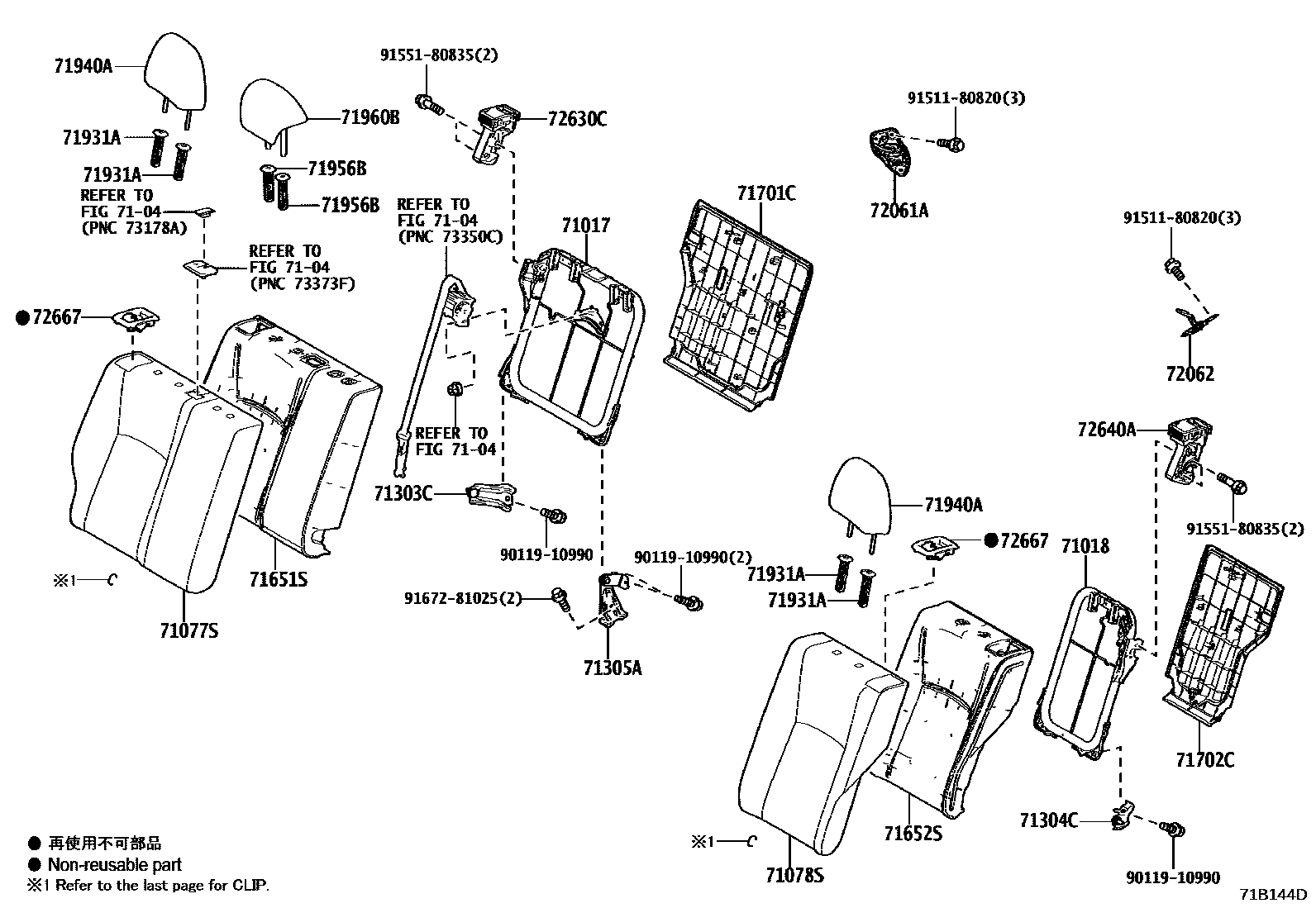

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
7104
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM8#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK,TRIM2#
DARK GREY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM8#
71303CHINGE SUB-ASSY, REAR SEATBACK, RH
71304CHINGE SUB-ASSY, REAR SEATBACK, LH
71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
71931ASUPPORT, REAR SEAT HEADREST
W/O(LOCK),BLACK,TRIM2#,8#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#,4#,8#
71940AHEADREST ASSY, REAR SEAT
DARK GREY,TRIM2#
BLACK,TRIM2#
BLACK,TRIM8#
BLACK,TRIM8#
71956BSUPPORT, REAR SEAT HEADREST
W(LOCK),BLACK,TRIM2#
W(LOCK),BLACK,TRIM2#,4#,8#
W(LOCK),BLACK,TRIM2#,8#
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM2#,8#
W/O(LOCK),BLACK,TRIM2#,4#,8#
71960BHEADREST ASSY, REAR SEAT, CENTER
BLACK,TRIM8#
NIGHTSHADE PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK),BLACK,TRIM2#,8#
BLACK,TRIM2#
BLACK,TRIM8#
BLACK,TRIM2#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
72630CLOCK ASSY, REAR SEATBACK, RH
72640ALOCK ASSY, REAR SEATBACK, LH
72667BEZEL, REAR SEATBACK LOCK, UPPER
BLACK,TRIM2#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#,8#
9011910990
main90119-10990
9151180820
main91511-80820
9155180835
main91551-80835
9167281025
main91672-81025
25 parts on this diagram · 3 diagrams in section
