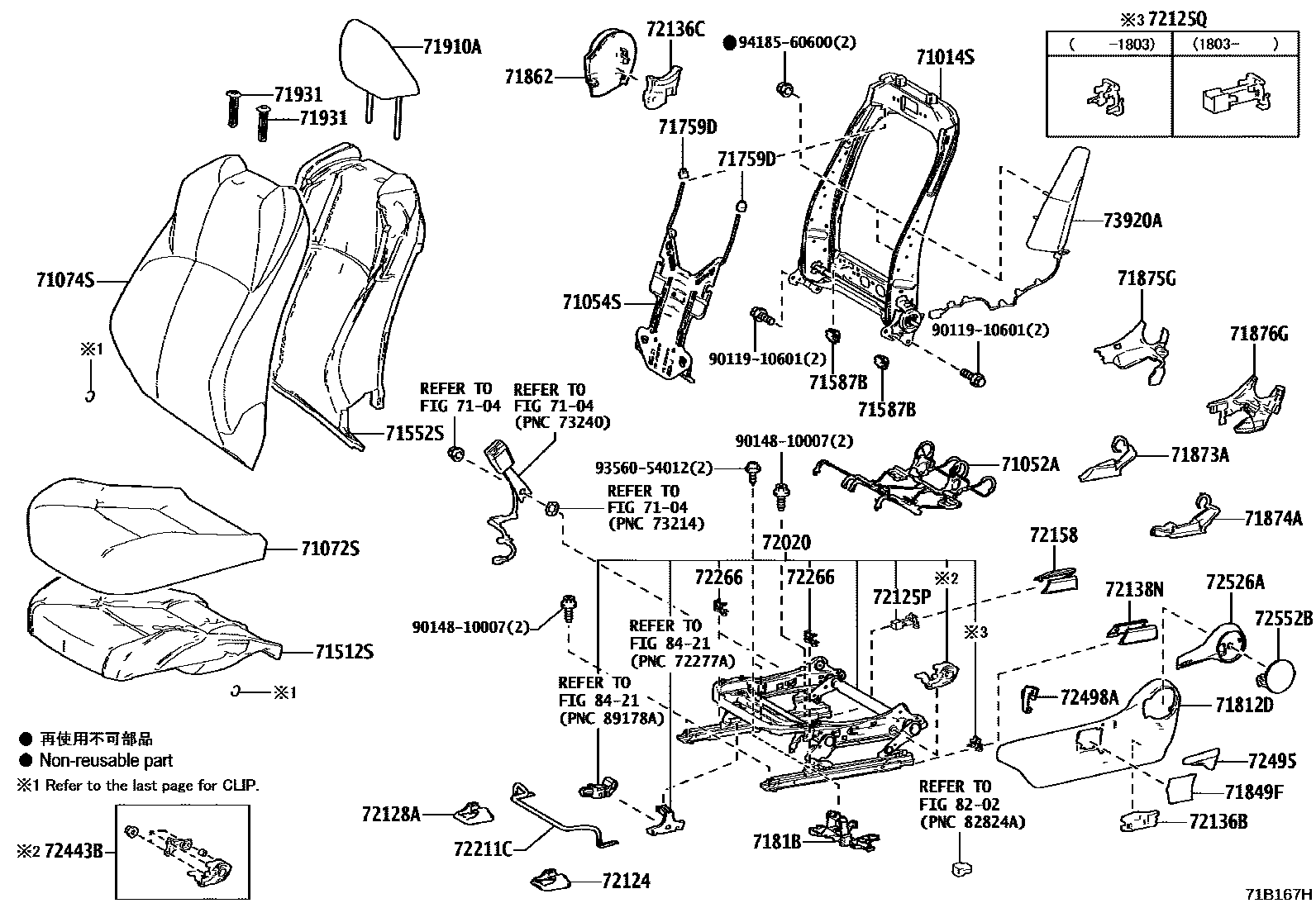

FRONT SEAT & SEAT TRACK

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-10200i202111-202212

main71014-10210i201910-202212

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090i201801-201805

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-47050i201910-202212

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-10B60-C4i201910-202004

BLACK,TRIM2#

main71072-10B60-C7i202004-202008

BLACK/DK.GRAY/DK.GRAY,TRIM2#

main71072-10B60-C8i202008-202212

BLACK/DK.GRAY/WATER WHITE,TRIM2#

main71072-10C10-C5i201910-202004

BLACK,TRIM2#

main71072-10C10-C6i202004-202212

BLACK/BLACK/DK.GRAY,TRIM2#

main71072-10A50-B0supersedes 71072-10A61-B3i201801-201805

SEAT HEATER-WITH,BLACK,TRIM2#

main71072-10A51-B3i201806-201910

CANADA SPEC&XLE PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71072-10A70-E2i201806-201910

LIMITED PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK) & LEATHER(BROWN)&SEAT HEATER-WITH,LICORICE,TRIM2#

main71072-10A80-C2i201806-201910

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH,BLACK,TRIM2#

main71072-10A90-C3i201806-201910

CANADA SPEC&XLE PREMIUM PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC)&SEAT HEATER-WITH,BLACK,TRIM2#

main71072-10B00-C3i201806-201910

XLE PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC),BLACK,TRIM2#

main71072-10B90-C4supersedes 71072-10B80-C5i201910-202004

CANADA SPEC&SEAT HEATER-WITH,BLACK,TRIM8#

main71072-10B90-C5supersedes 71072-10B80-C5i202004-202212

CANADA SPEC&SEAT HEATER-WITH,BLACK/BLUE/DK.GRAY,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-10B60-C5i201910-202212

BLACK,TRIM2#

main71074-10C20-C5i201910-202212

BLACK,TRIM2#

main71074-10A50-B0supersedes 71074-10A60-B3i201801-201805

SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10A50-B2i201806-201812

CANADA SPEC&XLE PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10A50-B3supersedes 71074-10A60-B3i201812-201910

CANADA SPEC&XLE PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10A70-E2i201806-201812

LIMITED PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK) & LEATHER(BROWN)&SEAT HEATER-WITH,LICORICE,TRIM2#

main71074-10A70-E3supersedes 71074-10A60-B3i201812-201910

LIMITED PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK) & LEATHER(BROWN)&SEAT HEATER-WITH,LICORICE,TRIM2#

main71074-10A80-C2i201806-201812

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10A80-C3supersedes 71074-10A60-B3i201812-201910

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10A90-C3i201806-201812

CANADA SPEC&XLE PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC)&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10A90-C4supersedes 71074-10A60-B3i201812-201910

CANADA SPEC&XLE PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC)&SEAT HEATER-WITH,BLACK,TRIM2#

main71074-10B00-C3i201806-201812

XLE PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC),BLACK,TRIM2#

main71074-10B00-C4supersedes 71074-10A60-B3i201812-201910

XLE PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC),BLACK,TRIM2#

main71074-10C00-C4supersedes 71074-10B90-C4i201910-202212

CANADA SPEC&SEAT HEATER-WITH,BLACK,TRIM8#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-10050i201801-201910

main71512-10051i202007-202212

main71512-10060i201910-202212

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-10090i201910-202212

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×2i202208-202212

71587BPROTECTOR, FRONT SEATBACK EDGE

main71587-47010×2i202111-202212

71759DHOOK, FRONT SEATBACK, NO.2

main71759-50040×2i201911-202212

main71759-52050×2i201910-201911

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-33400-C0i201910-202212

BLACK,TRIM2#,4#,8#

main71812-47130-C1i201910-202212

BLACK,TRIM2#,8#

main71812-47160-C1supersedes 71812-47130-C1i201806-201910

CANADA SPEC&XLE PACKAGE&SEAT HEATER-WITH,BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-33010i201910-202212

main7181B-47010i201910-202212

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-47010-C1i201801-201910

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1i201801-201910

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47070i201801-201910

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71874-47080i201801-201910

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-33140i201801-201910

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47070i201801-201910

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-47080-C1i201910-202212

BLACK,TRIM2#,8#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-47040-C1i201801-201910

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-10450-C0×2i201801-201805

BLACK,TRIM2#

main71910-10450-C4×2i201805-201906

BLACK,TRIM2#

main71910-10450-C6×2i201906-201910

BLACK,TRIM2#

main71910-10500-B5×2i201910-202212

DARK GREY/DARK GREY,TRIM2#

main71910-10510×2i202208-202212

main71910-10510-C3×2i201910-202004

BLACK,TRIM2#

main71910-10510-C4×2i202004-202208

BLACK/DK.GRAY,TRIM2#

main71910-10520-C2×2i201910-202001

BLACK,TRIM8#

main71910-10521×2i202002-202008

main71910-10521-C3×2i202008-202212

BLACK/DK.GRAY,TRIM8#

main71910-10461-C1×2i201806-201910

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER(BLACK)&SEAT HEATER-WITH,BLACK,TRIM2#

main71910-10461-E1×2i201806-201910

LIMITED PACKAGE&SEAT COVER MATERIAL-FABLIC(BLACK) & LEATHER(BROWN)&SEAT HEATER-WITH,LICORICE,TRIM2#

main71910-10470-B3×2i201806-201910

CANADA SPEC&XLE PACKAGE&SEAT COVER MATERIAL-FABRIC(DYNAMIC)&SEAT HEATER-WITH,GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5×2i201910-202212

W(LOCK),BLACK,TRIM2#

main71931-47030-C4×2i201910-202212

W/O(LOCK),BLACK,TRIM2#,8#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-10240i201806-201905

main72020-10241i201910-202212

main72020-33450i201910-202212

main72020-47370i201801-201806

sub72020-47371

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-10100i201801-201910

72125PCOVER, SEAT TRACK, UPPER REAR NO.3

main72125-47010i201910-202212

main72125-47020i201910-202212

72125QCOVER, SEAT TRACK, UPPER REAR NO.4

main72125-47010i201910-202212

main72125-47020i201801-201803

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-10100i201910-202212

72136SPACER, SEAT TRACK, LOWER NO.1

main72136-33250i201910-202212

72136BSPACER, SEAT TRACK, LOWER NO.3

main72136-12110i201910-202212

main72136-33290i201910-202212

72136CSPACER, SEAT TRACK, LOWER NO.4

main72136-33300i201910-202212

main72136-33340i201801-201910

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-47060i201801-201910

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-10040i201910-202212

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47050i201910-202212

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47050i201910-202212

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-47010×2i201906-201910

main72265-47020×2i201910-202212

72443BGEAR, VERTICAL ADJUSTER, LH

main72443-10020i201801-201903

main72443-10021i201904-201910

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-10010-C0i201910-202212

BLACK,TRIM2#,8#

sub72495-16010

main72495-47020-C1i201801-201910

BLACK,TRIM2#

72498ACOVER, VERTICAL ADJUSTER BRACKET, LH

main72498-47020i201910-202212

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-10060-C0i201910-202212

BLACK,TRIM2#,8#

main72526-33050-C0i201801-201910

BLACK,TRIM2#

72552BCOVER, RECLINING HINGE, LH

main72551-33010-C0i201801-201910

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-10030i201910-202212

8202

8421

9011910601

main90119-10601

9014810007

main90148-10007

9356054012

main93560-54012

9418560600

main94185-60600

48 parts on this diagram · 7 diagrams in section
