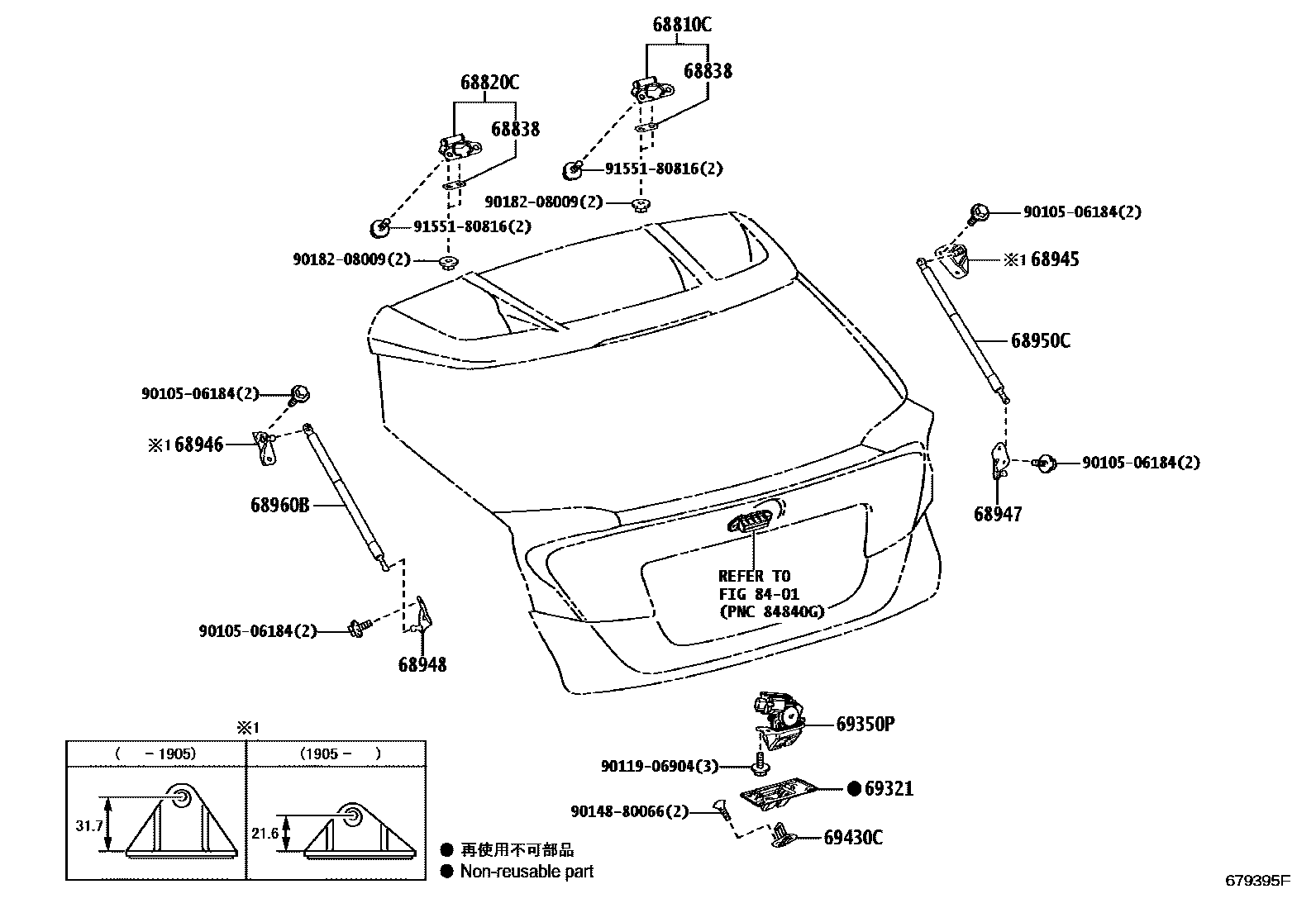

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-10030iZGX10201801-201809

sub68810-10031

main68810-10031iZGX10201810-202212

68820CHINGE ASSY, BACK DOOR, LH

main68810-10030iZGX10201801-201809

sub68810-10031

main68810-10031iZGX10201810-202212

68838PAD, BACK DOOR HINGE, NO.1

main68838-47010iZGX10201801-202212

T=1.0,PAD T=1.0

main68838-47020iZGX10201801-202212

T=1.5,PAD T=1.5

main68838-47030iZGX10201801-202212

T=2.0,PAD T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-10010iZGX10201801-201905

main68945-10020iZGX10201905-202212

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-10010iZGX10201801-201905

main68946-10010iZGX10201905-202212

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-10011iZGX10201801-202212

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-10011iZGX10201801-202212

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WF70iZGX10201801-201806

COLD SPEC

main68950-0WF71iZGX10201806-201905

COLD SPEC

main68950-0WF80iZGX10201801-201806

main68950-0WF81iZGX10201806-201905

main68950-0WJ20iZGX10201905-202212

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WF70iZGX10201801-201806

COLD SPEC

main68960-0WF71iZGX10201806-201905

COLD SPEC

main68960-0WF80iZGX10201801-201806

main68960-0WF81iZGX10201806-201905

main68960-0WJ20iZGX10201905-202212

69321COVER, BACK DOOR LOCK

main69321-10010iZGX10201801-202212

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-10140iZGX10201801-202212

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iZGX10201801-202212

8401

9010506184

main90105-06184

9011906904

main90119-06904

9014880066

main90148-80066

9018208009

main90182-08009

9155180816

main91551-80816

18 parts on this diagram · 1 diagram in section
