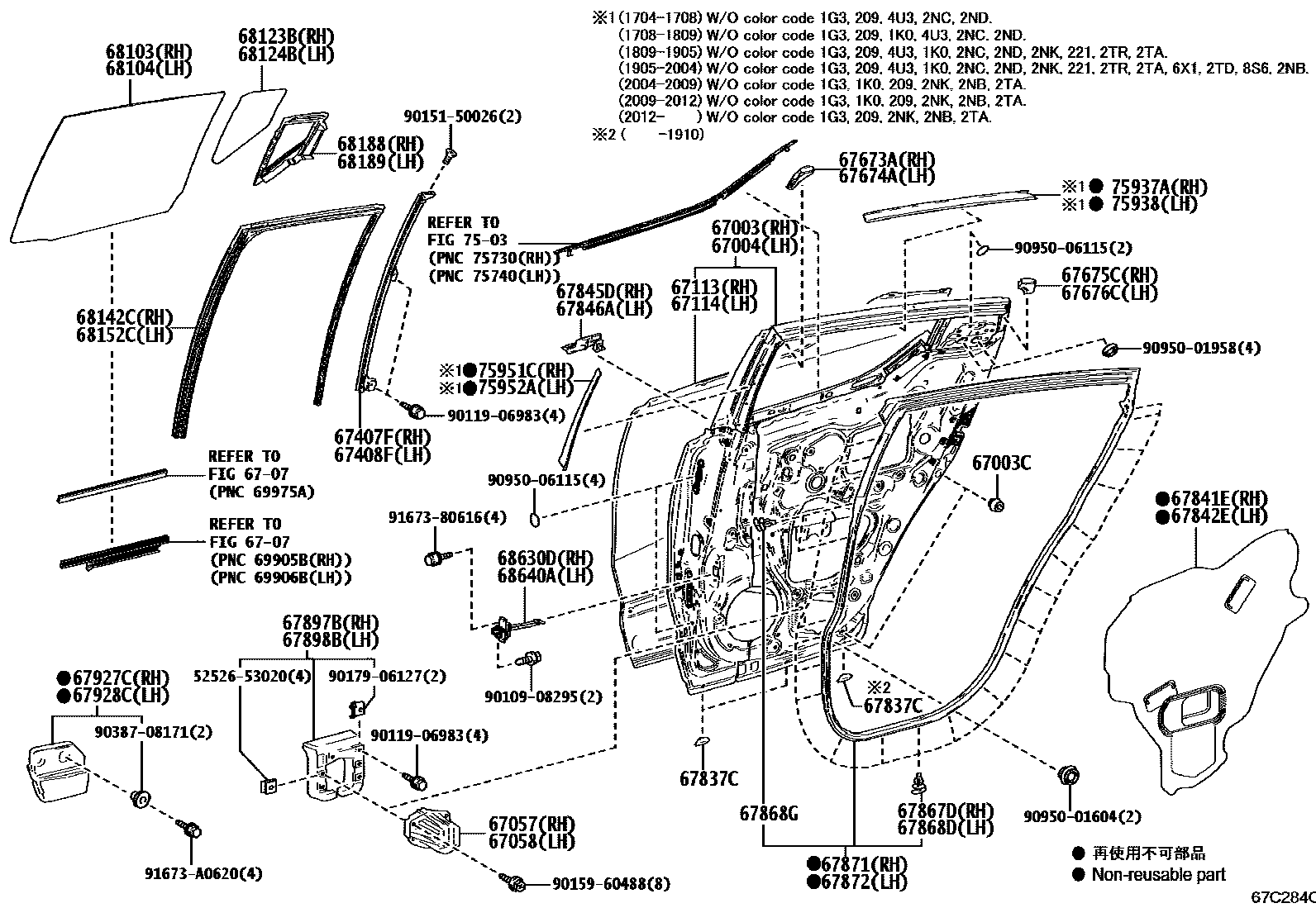

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
6707REAR DOOR WINDOW REGULATOR & HINGE
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67675CGARNISH, REAR DOOR FRAME, NO.2 RH
67676CGARNISH, REAR DOOR FRAME, NO.2 LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503SIDE MOULDING
75937ATAPE, BLACK OUT, INNER UPPER RH
0 OR 1PIECE,REF.ILL.
0 OR 1PIECE,REF.ILL.
75938TAPE, BLACK OUT, INNER UPPER LH
0 OR 1PIECE,REF.ILL.
0 OR 1PIECE,REF.ILL.
75951CTAPE, BLACK OUT, INNER FRONT RH
0 OR 1PIECE,REF.ILL.
75952ATAPE, BLACK OUT, INNER FRONT LH
0 OR 1PIECE,REF.ILL.
5252653020RETAINER, FRONT BUMPER, LOWER SIDE
main52526-53020
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9015960488
main90159-60488
9017906127
main90179-06127
9038708171
main90387-08171
9095001604
main90950-01604
9095001958
main90950-01958
9095006115
main90950-06115
9167380616
main91673-80616
91673A0620
main91673-A0620
55 parts on this diagram · 2 diagrams in section
