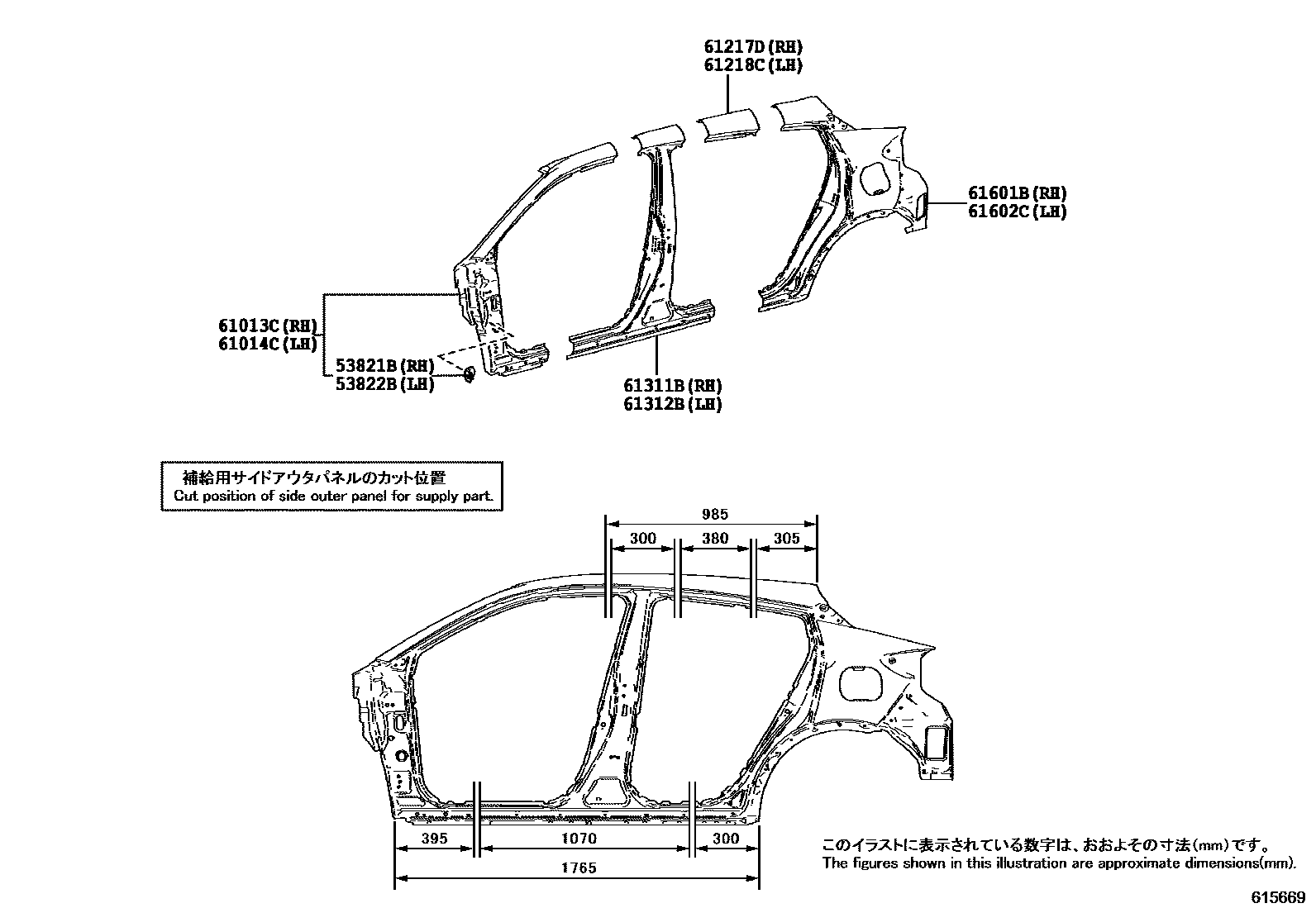

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-30150iZGX10201801-202212

53822BBRACKET, FRONT FENDER, REAR LH

main53821-30150iZGX10201801-202212

61013CPANEL SUB-ASSY, SIDE, INNER RH

main61013-10110iZGX10201801-201909

sub61013-10111

sub55131-76010

main61013-10111iZGX10201909-202212

61014CPANEL SUB-ASSY, SIDE, INNER LH

main61014-10100iZGX10201801-201909

sub61014-10101

sub55132-76010

main61014-10101iZGX10201909-202212

61217DRAIL, ROOF SIDE, OUTER NO.4 RH

main61217-10010iZGX10201801-202212

61218CRAIL, ROOF SIDE, OUTER NO.4 LH

main61218-10010iZGX10201801-202212

61311BPILLAR, CENTER BODY, OUTER RH

main61311-10060iZGX10201801-202212

61312BPILLAR, CENTER BODY, OUTER LH

main61312-10060iZGX10201801-202212

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-10A00iZGX10201910-202212

main61601-10A10iZGX10201801-201910

sub61601-10A00

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-10A00iZGX10201910-202212

main61602-10A10iZGX10201801-201910

sub61602-10A00

10 parts on this diagram · 3 diagrams in section
