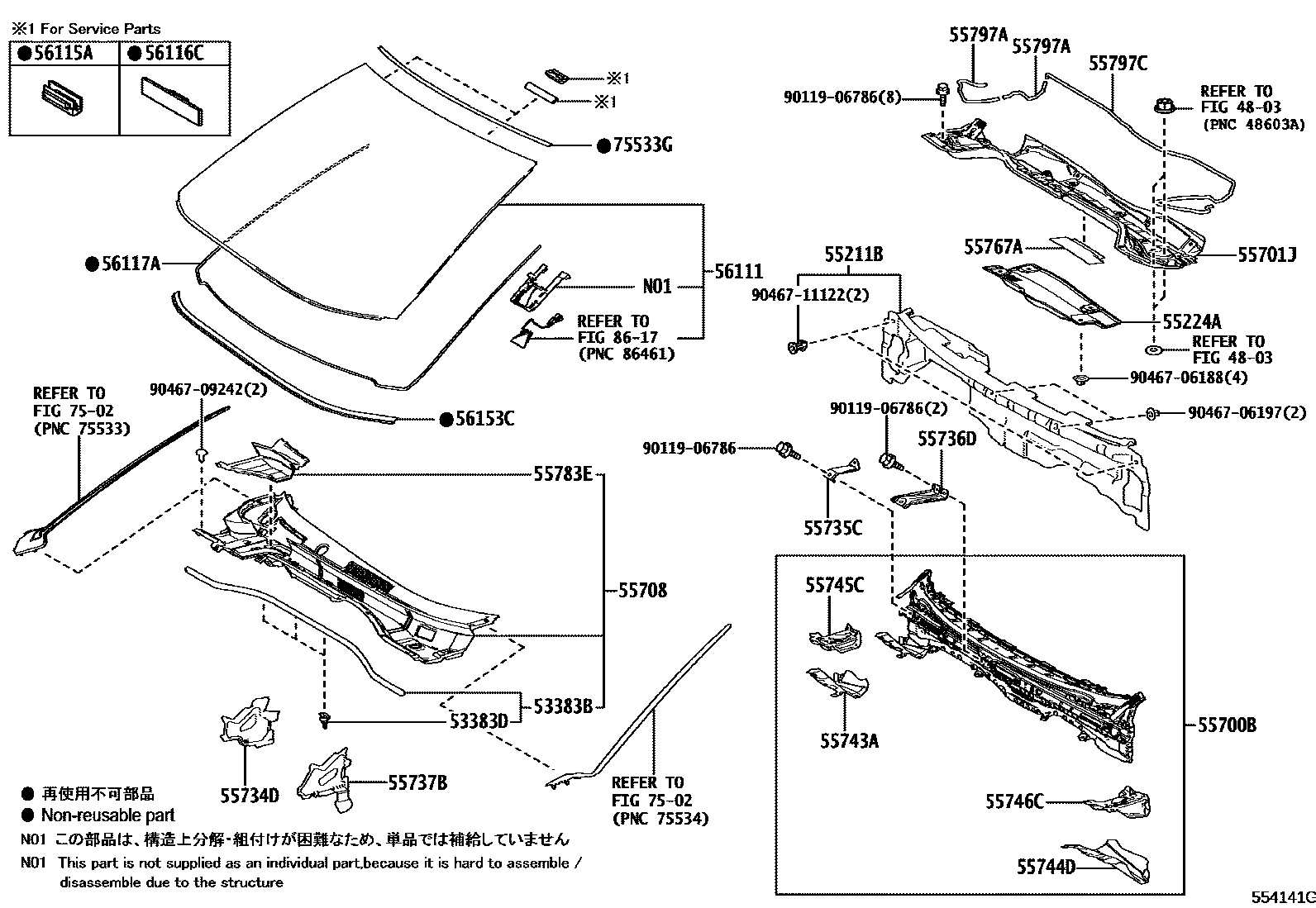

COWL PANEL & WINDSHIELD GLASS
4803
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55734DPLATE, WATER GUARD
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745CREINFORCEMENT, COWL TOP, INNER RH
55746CREINFORCEMENT, COWL TOP, INNER LH
55767ASHEET, COWL TOP INSULATOR, NO.5
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55797ASEAL, COWL WATER EXTRACT
55797CSEAL, COWL WATER EXTRACT, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=2979
L=2979,CANADA SPEC
56153CMOULDING, FRONT WINDOW, INNER CENTER
7502
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
9046706188
main90467-06188
9046706197
main90467-06197
9046709242
main90467-09242
9046711122
main90467-11122
33 parts on this diagram · 2 diagrams in section
