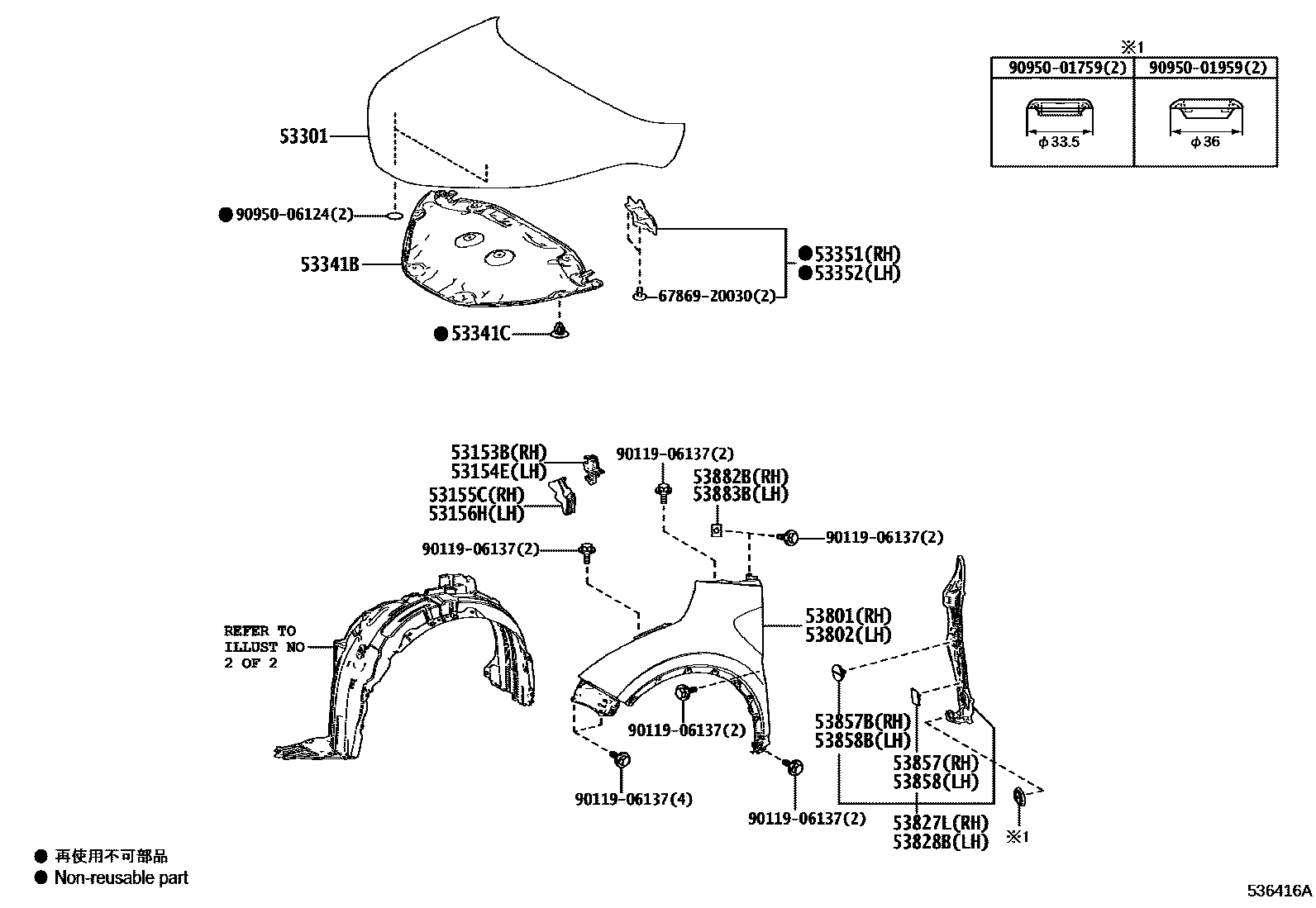

HOOD & FRONT FENDER

0001 1 0002 1RH 0003 1LH

53153BGUIDE, FRONT SIDE AIR

main53153-10020iZGX10201801-202212

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-10010iZGX10201801-202212

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-10100iZGX10201801-202212

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-10020iZGX10201801-202212

53301HOOD SUB-ASSY

main53301-10380iZGX10201910-202212

main53301-10390iZGX10201801-201910

sub53301-10380

53341BINSULATOR, HOOD

main53341-10060iZGX10201801-202212

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZGX10201801-202212

53351PANEL, HOOD SIDE, RH

main53351-10010iZGX10201801-202212

53352PANEL, HOOD SIDE, LH

main53352-10010iZGX10201801-202212

53801FENDER SUB-ASSY, FRONT RH

main53801-10600iZGX10201910-202212

main53801-10610iZGX10201801-201910

sub53801-10600

53802FENDER SUB-ASSY, FRONT LH

main53802-10700iZGX10201910-202212

main53802-10710iZGX10201801-201910

sub53802-10700

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-10050iZGX10201801-202212

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-10050iZGX10201801-202212

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iZGX10201801-202212

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZGX10201801-202212

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iZGX10201801-202212

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZGX10201801-202212

53882BSEAL, FRONT FENDER, RH

main53882-16030iZGX10201801-202212

53883BSEAL, FRONT FENDER, LH

main53882-16030iZGX10201801-202212

6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-20030

9011906137

main90119-06137

9095001759

main90950-01759

9095001959

main90950-01959

9095006124

main90950-06124

24 parts on this diagram · 3 diagrams in section
