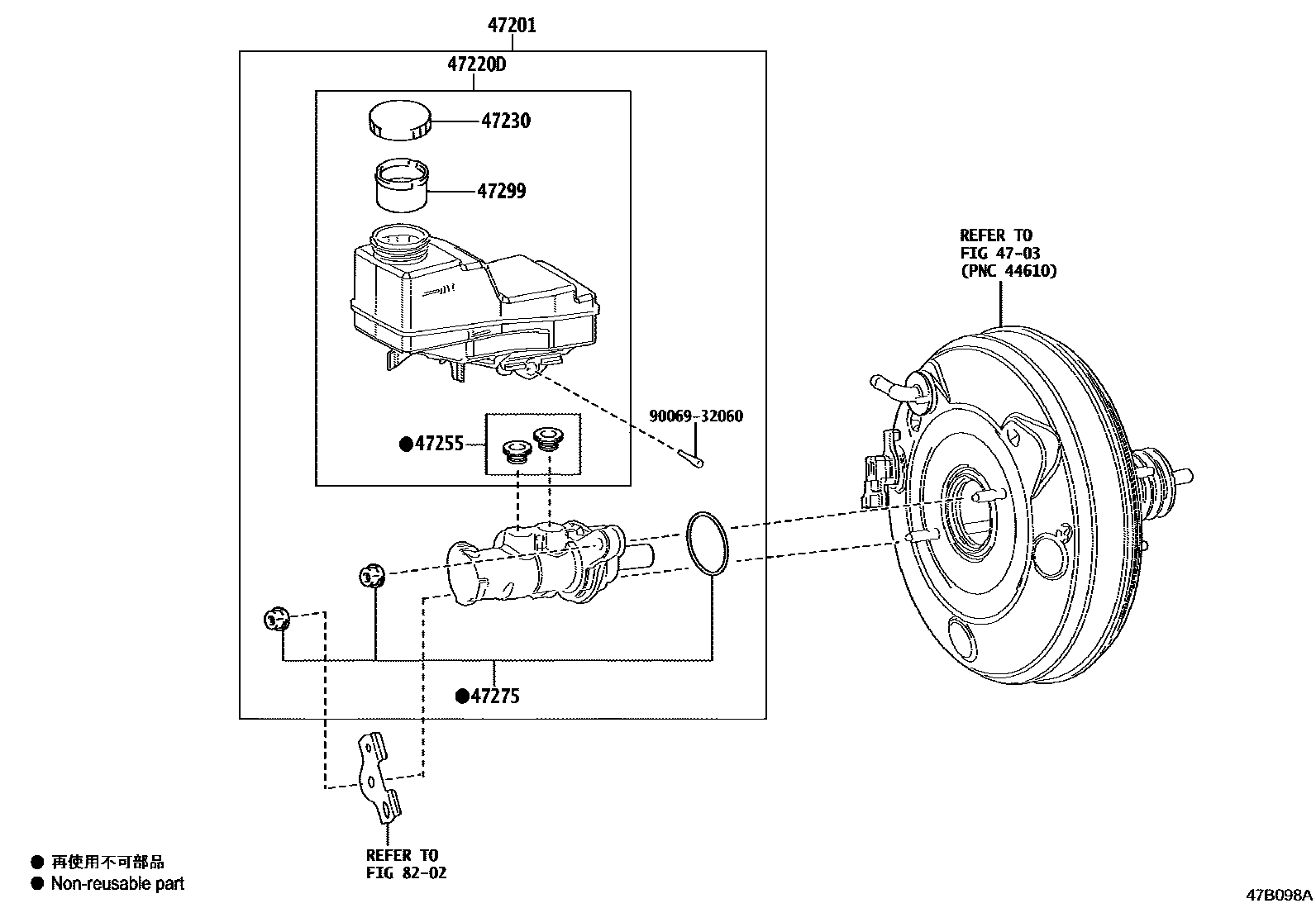

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-76020iZGX10201910-202212

main47201-F9020iZGX10201801-201910

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-76040iZGX10201910-202212

main47220-F9020iZGX10201801-201910

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33072iZGX10201910-202212

main47230-F4010iZGX10201801-201910

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZGX10201801-201910

main90015-AT001iZGX10201910-202212

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZGX10201801-201910

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZGX10201801-201910

main47299-52110iZGX10201910-202212

8202

9006932060

main90069-32060

9 parts on this diagram · 2 diagrams in section
