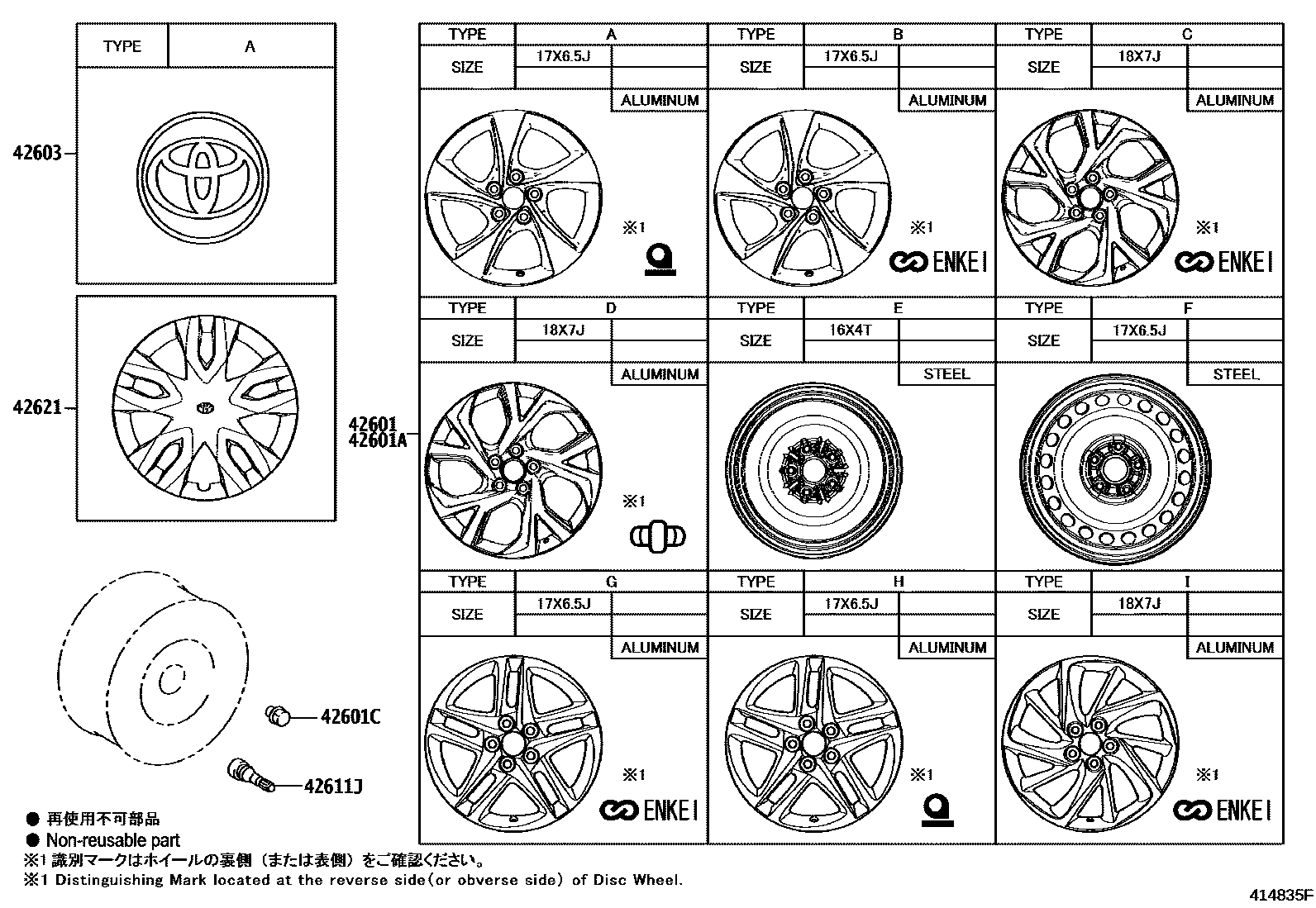

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-10360i201910-202212

18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASONTIRE,TYPE C:REFER ILLUST.

main42611-10360i201801-202212

18X7J,#,TYPE C:REFER ILLUST.

main42611-10371i201801-202212

18X7J,#,TYPE D:REFER ILLUST.

main42611-10371i201910-202212

18X7J,#,USA POSSESSIONS SPEC&TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASONTIRE,TYPE D:REFER ILLUST.

main42611-10440i201903-202212

17X6.5J,#,TYPE F:REFER ILLUST.

main42611-F4010i201806-201902

17X6.5J,#,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-21280i201801-202212

16X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007i201806-202212

main90942-01033i201910-202212

TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE

main90942-01033i201910-202212

TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE

main90942-01033i201910-202212

TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE

main90942-01033i201801-201806

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130i201910-202212

*ALU

main42603-42130i201910-202212

*ALU,TIRE & DISC WHEEL-215/60R17 ALUMINUM ALL SEASON TIRE

main42603-42130i201910-202212

*ALU,TIRE & DISC WHEEL-225/50R18 ALUMINUM BLACK ALL SEASON TIRE

main42603-42130i201910-202212

*ALU,TIRE & DISC WHEEL-225/50R18 ALUMINUM GRAY ALL SEASON TIRE

main42603-48140i201801-201806

*ALU

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201801-202212

42621CAP, WHEEL

main42602-10180i201808-201910

main42602-10180i201910-202212

TYPE A:REFER ILLUST.

main42602-F4010i201806-201807

6 parts on this diagram · 3 diagrams in section
