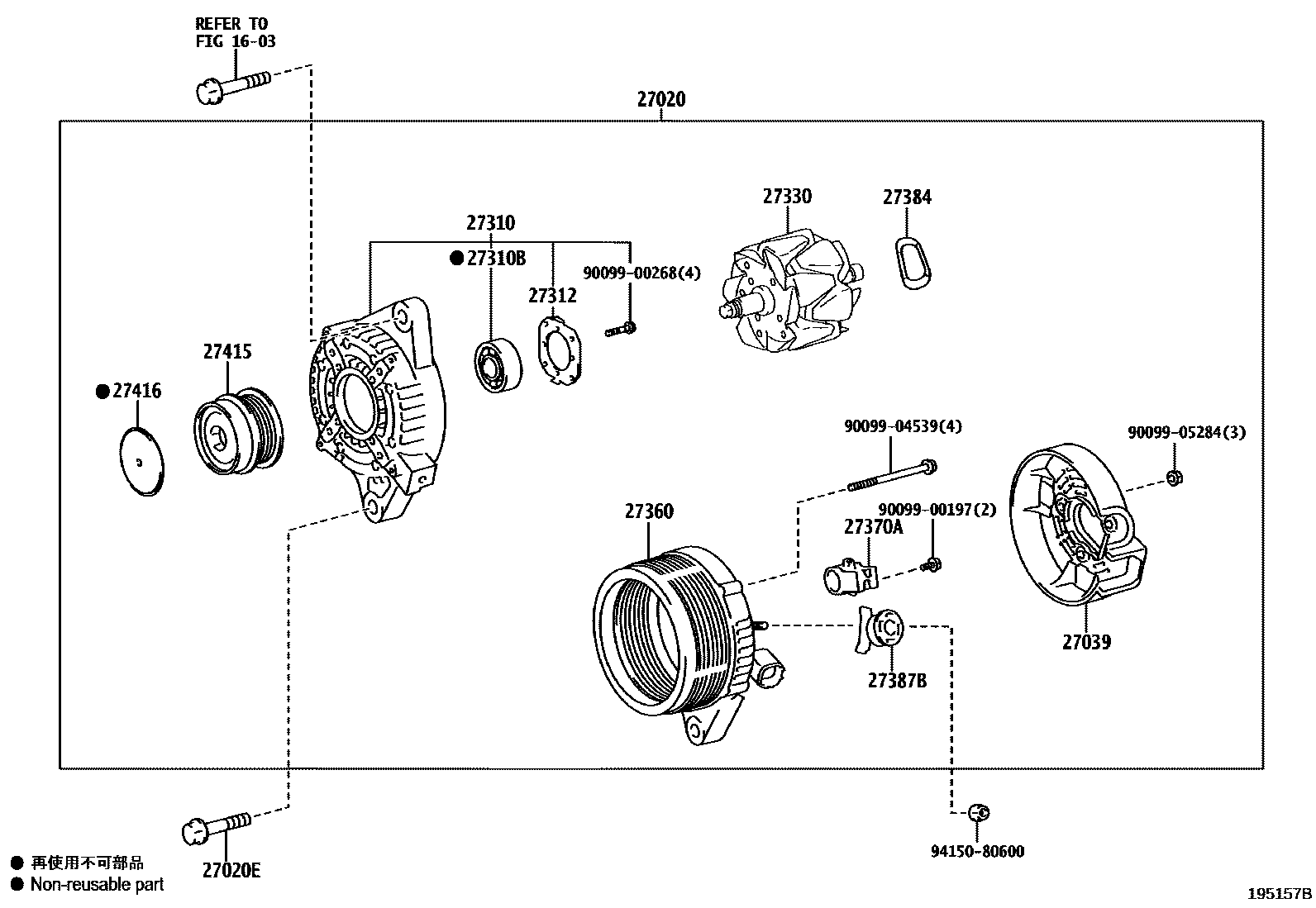

ALTERNATOR

1603

27020ALTERNATOR ASSY

main27060-37250i3ZRFAE..ZGX10201801-202212

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i3ZRFAE..ZGX10201801-202212

27039COVER, ALTERNATOR REAR END

main27039-31390i3ZRFAE..ZGX10201801-202212

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-37100i3ZRFAE..ZGX10201801-202212

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i3ZRFAE..ZGX10201801-202212

27312PLATE, RETAINER

main27312-72100i3ZRFAE..ZGX10201801-202212

27330ROTOR ASSY, ALTERNATOR

main27330-33090i3ZRFAE..ZGX10201801-202212

27360COIL ASSY, ALTERNATOR

main27360-37280i3ZRFAE..ZGX10201801-202212

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i3ZRFAE..ZGX10201801-202212

27384WASHER

main27384-50030i3ZRFAE..ZGX10201801-202212

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i3ZRFAE..ZGX10201801-202212

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i3ZRFAE..ZGX10201801-202212

27416CAP, ALTERNATOR PULLEY

main27416-0W050i3ZRFAE..ZGX10201801-202212

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415080600

main94150-80600

19 parts on this diagram · 1 diagram in section
