HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

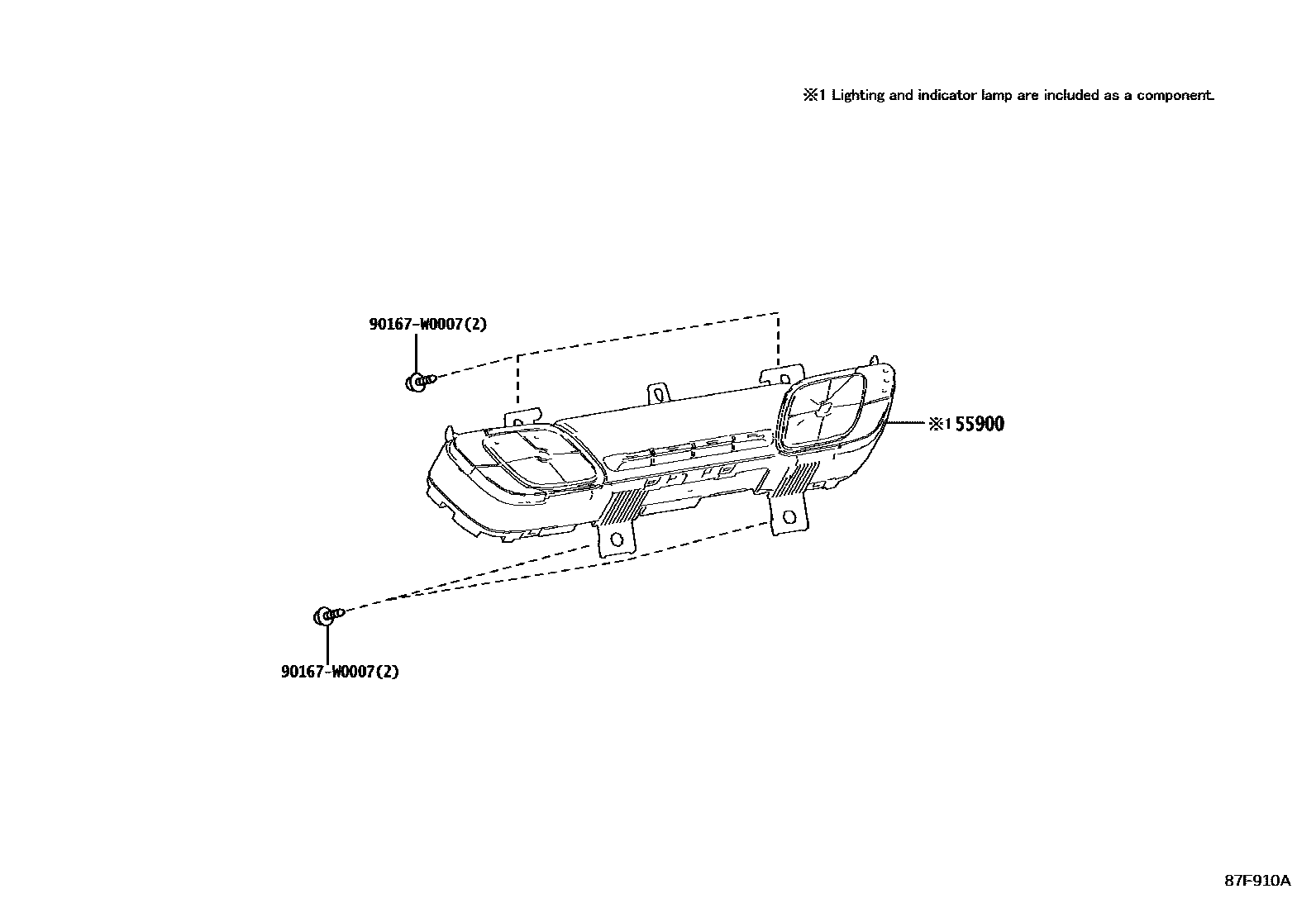

55900CONTROL ASSY, AIR CONDITIONER

main55900-F4010iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201610-201705

COLD AREA SPEC&SEAT HEATER-WITH

sub55900-F4011

main55900-F4010iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201610-201705

SEAT HEATER-WITH

sub55900-F4011

main55900-F4010iNGX10,50,ZYX10..LHD..(E,G)..EUR201610-201705

COLD AREA SPEC

sub55900-F4011

main55900-F4011iNGX10,ZGX10..N..RUS201706-201909

SEAT HEATER-WITH

main55900-F4011iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201706-201909

COLD AREA SPEC

main55900-F4011iNGX50..RUS;NGX10,ZGX10..(E,G)..RUS201706-201909

COLD AREA SPEC&SEAT HEATER-WITH

main55900-F4020iNGX10,ZGX10..N..RUS201610-201705

COLD AREA SPEC

sub55900-F4021

main55900-F4021iZGX10..G201805-201909

WITHOUT(COLD AREA SPEC)&SEAT HEATER-WITHOUT

main55900-F4021iNGX10,ZGX10..N..RUS201706-201909

COLD AREA SPEC

main55900-F4030iNGX10,50,ZYX10..LHD..N..EUR201610-201705

SEAT HEATER-WITH

sub55900-F4031

main55900-F4031iNGX10,50,ZYX10..LHD..N..EUR201706-201909

SEAT HEATER-WITH

main55900-F4040iNGX10,50,ZYX10..LHD..N..EUR201610-201705

sub55900-F4041

main55900-F4041iNGX10,50,ZYX10..LHD..N..EUR201706-201909

main55900-F4110iNGX10,50,ZYX10..RHD..N201610-201705

sub55900-F4111

main55900-F4111iNGX10,50,ZYX10..RHD..N201706-201909

main55900-F4160iNGX10..RHD..D201610-201705

sub55900-F4161

main55900-F4161iNGX10..RHD..D201706-201909

main55900-F4170iNGX10..LHD..D201610-201705

sub55900-F4171

main55900-F4171iNGX10..LHD..D201706-201909

main55900-F4180iNGX10,50,ZYX10..RHD..(E,G)201610-201705

sub55900-F4181

main55900-F4181iNGX10,50,ZYX10..RHD..(E,G)201706-201909

main55900-F4380iNGX10..LHD..N..EUR;NGX10..LHD..6F..K..EUR;MAXH10,ZYX1#..LHD..(K,N)201909-202010

COLD AREA SPEC

main55900-F4380iNGX10..(E,G,K)..RUS201909-202112

SEAT HEATER-WITH

main55900-F4380iNGX10..LHD..CVT..K201909-202201

COLD AREA SPEC&SEAT HEATER-WITH

main55900-F4390iZGX10..N201909-202201

COLD AREA SPEC

main55900-F4390iNGX10..N..RUS201909-202112

main55900-F4390iMAXH10,ZYX11..LHD..G202010

COLD AREA SPEC&SEAT HEATER-WITHOUT

main55900-F4400iNGX10..LHD..CVT..K201909-202201

SEAT HEATER-WITH

main55900-F4400iNGX10..K..EUR202201

main55900-F4410iNGX10..LHD..CVT..K201909-202201

main55900-F4410iMAXH10,ZYX11..LHD..G202010

SEAT HEATER-WITHOUT

main55900-F4440iMAXH10,NGX10,ZYX1#..RHD..(E,G,K)201909

main55900-F4450iMAXH10,NGX10,ZYX1#..RHD..N201909

90167W0007

main90167-W0007

2 parts on this diagram · 5 diagrams in section
