ELECTRONIC FUEL INJECTION SYSTEM

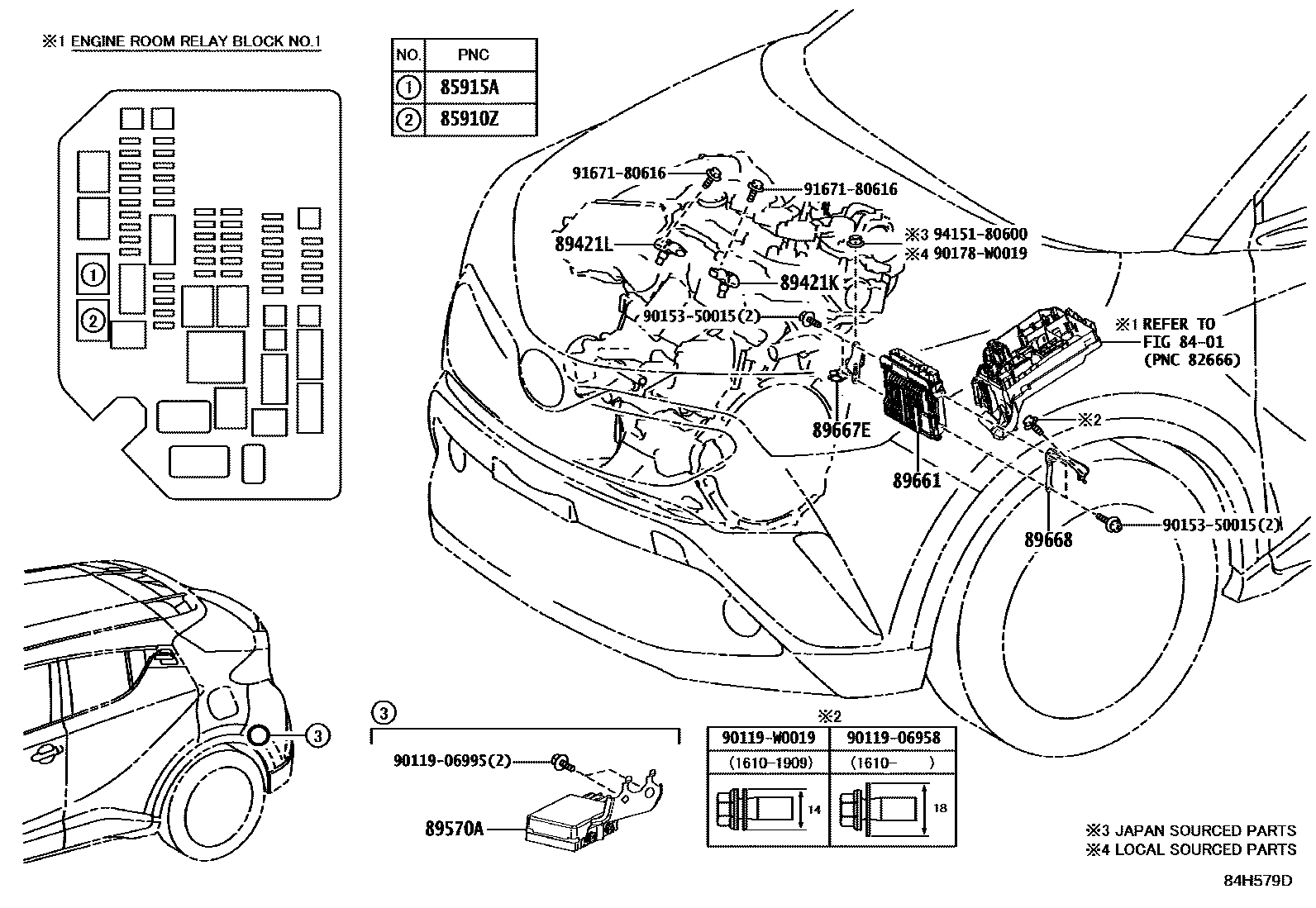

Parts diagram
8401
85910ZRELAY, INJECTION (FOR EFI)
main90080-87021i201610-202105
sub90987-02027
main90987-02027i202105-202112
85915ARELAY, MAIN
main90080-87021i201610-202105
sub90987-02027
main90987-02027i202105-202112
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-26030i201610-201909
main89421-33010i201909
89421KSENSOR, TURBO PRESSURE, NO.1
main89421-78010i201610-202112
89421LSENSOR, TURBO PRESSURE, NO.2
main89421-78010i201610-202112
89570ACOMPUTER ASSY, FUEL PUMP CONTROL
main89570-10040i201610-202112
89661COMPUTER, ENGINE CONTROL
main89661-F4030i201610-201909
DENSO
main89661-F4050i201610-201801
DENSO
sub89661-F4051
main89661-F4051i201802-201805
DENSO
main89661-F4070i201610-201805
ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89661-F4070i201610-201805
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4070i201610-201805
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89661-F4070i201610-201805
TRANSMISSION-EC69
main89661-F4070i201610-201805
DENSO
main89661-F4070i201610-201805
NEW CALEDONIA SPEC
main89661-F4070i201610-201805
ECO PACKAGE
main89661-F4070i201610-201805
ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4080i201610-201909
DENSO
main89661-F4080i201610-201909
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4100i201610-201805
DENSO
main89661-F4100i201610-201805
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4130i201610-201805
DENSO
main89661-F4130i201610-201805
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4140i201610-201909
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4140i201610-201909
DENSO
main89661-F4250i201805-201909
DENSO
main89661-F4280i201805-201909
DENSO,ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89661-F4280i201805-201909
DENSO
main89661-F4280i201805-201909
DENSO,NEW CALEDONIA SPEC
main89661-F4280i201805-201909
DENSO,ECO PACKAGE
main89661-F4280i201805-201909
DENSO,ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4280i201805-201909
DENSO,EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4280i201805-201909
DENSO,EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89661-F4280i201805-201909
DENSO,TRANSMISSION-EC69
main89661-F4290i201805-201909
DENSO,EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4290i201805-201909
DENSO
main89661-F4300i201805-201909
DENSO
main89661-F4300i201805-201909
DENSO,EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-F4320i201909-202010
DENSO
main89661-F4350i201909
DENSO
main89661-F4390i201909
DENSO
main89661-F4400i201909-202009
DENSO
main89661-F4410i201909-202112
DENSO
main89661-F4430i201909-202010
DENSO
main89661-F4460i201909-202010
DENSO
main89661-F4470i201909
DENSO
main89661-F4550i202010
DENSO
main89661-F4570i202010
DENSO
main89661-F4600i202010
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-02500i201805-201909
main89667-02520i201909
main89667-F4010i201610-201909
main89667-F4020i201610-201804
sub89667-02500
main89667-F4030i201610-201909
ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89667-F4030i201610-201909
ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89667-F4030i201610-201909
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89667-F4030i201610-201909
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89667-F4030i201610-201909
TRANSMISSION-EC69
main89667-F4030i201909-202112
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-02500i201805-201909
TRANSMISSION-EC69
main89668-02500i201805-201909
NEW CALEDONIA SPEC
main89668-02500i201805-201909
ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89668-02500i201805-201909
ECO PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89668-02500i201805-201909
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89668-02500i201805-201909
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)&TRANSMISSION-EC69
main89668-02500i201909-202112
main89668-02510i201909
main89668-02530i201805-201909
main89668-F4010i201610-201804
sub89668-02530
main89668-F4020i201610-201909
main89668-F4030i201610-201804
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
sub89668-02500
9011906958
main90119-06958
9011906995
main90119-06995
90119W0019
main90119-W0019
9015350015
main90153-50015
90178W0019
main90178-W0019
9167180616
main91671-80616
9415180600
main94151-80600

17 parts on this diagram · 6 diagrams in section
