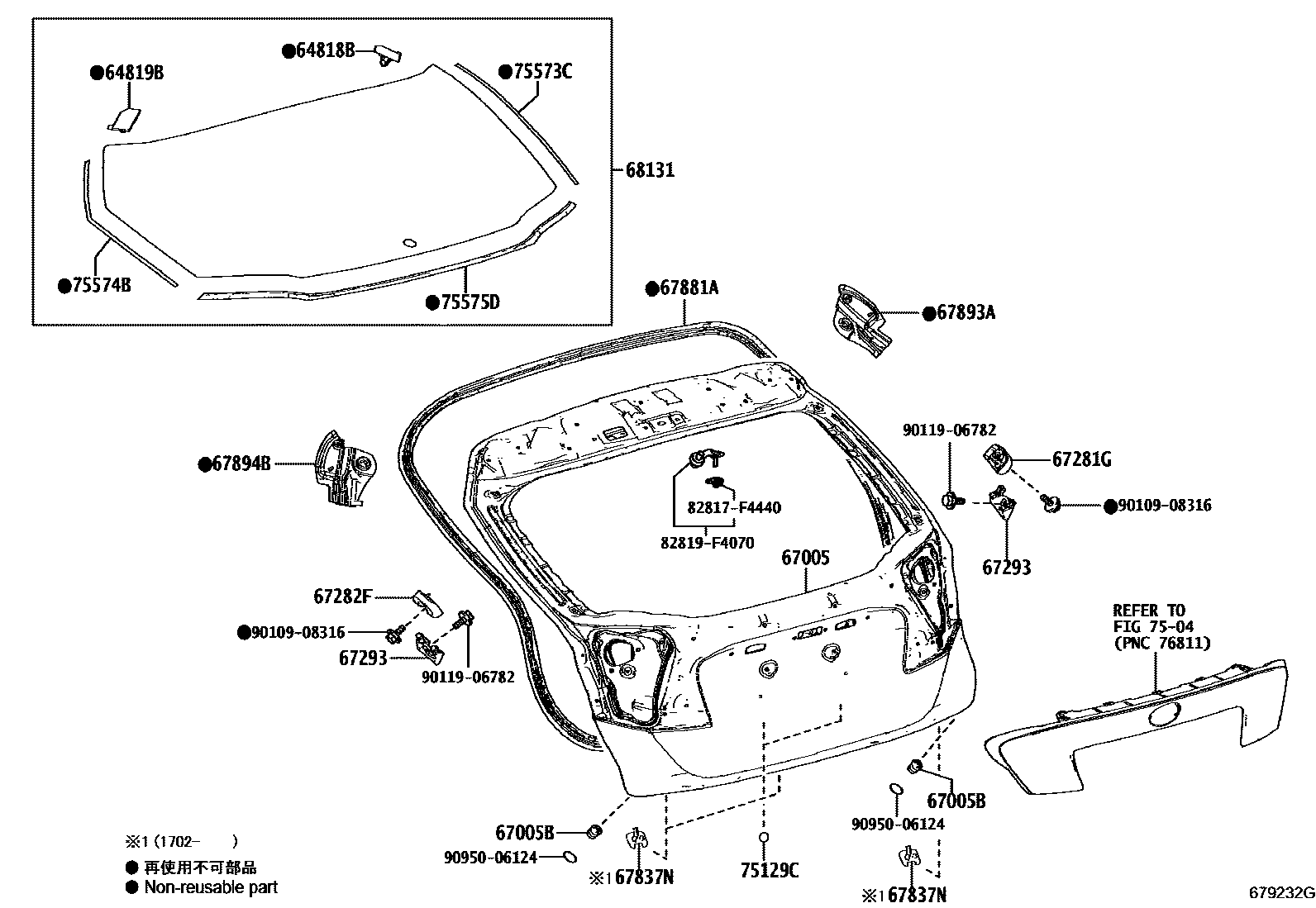

BACK DOOR PANEL & GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
AUDIO-RADIO LESS & 6SPEAKER
AUDIO-RADIO LESS & 2SPEAKER
AUDIO-CD & 6SPEAKER & USB & *BT,FOR GENERAL
AUDIO-CD & 6SPEAKER & USB & *BT,LATIN AMERICA
AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO
AUDIO-RADIO LESS
AUDIO-CD & USB & *BT, FOR LATIN AMERICA
main67005-F4020iZGX10;NGX50..G,K,N;ZYX10..E,G,K;NGX50..E..RUS;ZYX10..LHD..N;MAXH10,NGX10,ZYX11..EUR201909
AUDIO-*DA, FOR AFRICA
67005BCUSHION(FOR BACK DOOR PANEL)
67281GSTOPPER, BACK DOOR, LOWER RH
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
RH
LH
67837NSEAL, BACK DOOR DUST PROOF
67893APROTECTOR, BACK DOOR PANEL, NO.1
67894BPROTECTOR, BACK DOOR PANEL, NO.2
68131GLASS, BACK DOOR
MEXICO SPEC&BACK DOOR GLASS-PRIVACY&AUDIO-CD & 6SPEAKER & USB & *BT,FOR MEXICO
BACK DOOR GLASS-PRIVACY
ANTENNA-AM & FM & GPS & TELEPHONE
ANTENNA-AM & FM & GPS
HONG KONG, MACAU SPEC&REAR SIDE GLASS-GREEN&AUDIO-RADIO LESS
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&REAR SIDE GLASS-GREEN&ANTENNA-AM & FM &GPS
ANTENNA-AM & FM
ANTENNA-AM & FM & GPS & TELEPHONE
ANTENNA-AM & FM & GPS
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&ANTENNA-AM & FM
REAR SIDE GLASS-PRIVACY
REAR SIDE GLASS-PRIVACY&ANTENNA-AM & FM & GPS & TELEPHONE
REAR SIDE GLASS-PRIVACY&ANTENNA-AM & FM & GPS
ANTENNA-AM & FM
REAR SIDE GLASS-PRIVACY
7504
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75575DMOULDING, BACK WINDOW, LOWER
82817F4440PROTECTOR, WIRING HARNESS, NO.1
main82817-F4440
82819F4070GROMMET, WIRING HARNESS
main82819-F4070
9010908316
main90109-08316
9011906782
main90119-06782
9095006124
main90950-06124
22 parts on this diagram · 2 diagrams in section
