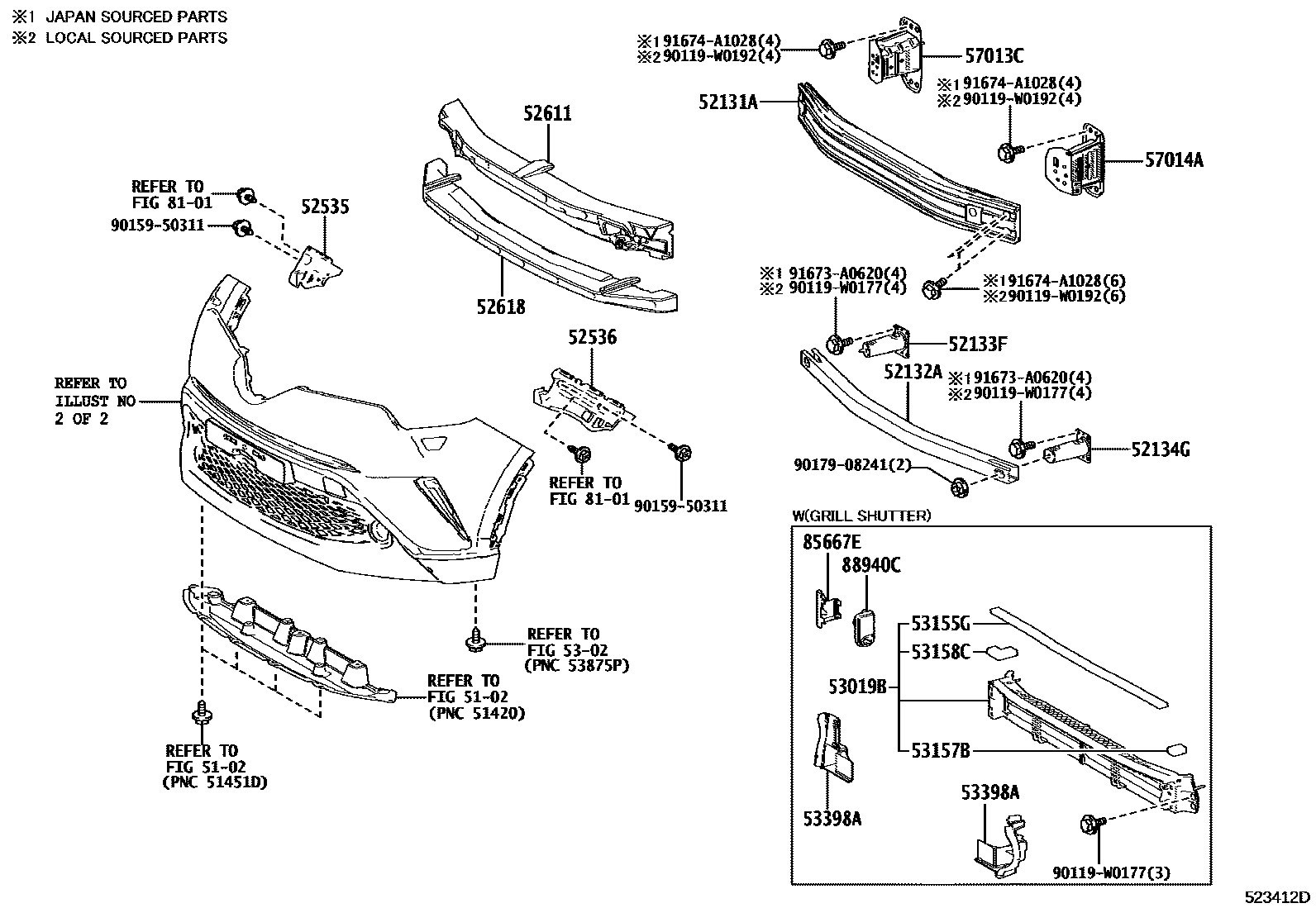

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1GR SPORT

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-F4020iNGX10,50,ZGX10,ZYX10201610-201909

main52131-F4090iNGX10..RUS201909-202112

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-F4010iNGX10..RUS201610-202112

52133FBRACKET, FRONT BUMPER, RH

main52133-F4010iNGX10..RUS201610-202112

52134GBRACKET, FRONT BUMPER, LH

main52133-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-F4010iNGX10,50,ZGX10,ZYX10201610-202112

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-F4010iNGX10,50,ZGX10,ZYX10201610-202112

52611ABSORBER, FRONT BUMPER ENERGY

main52611-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main52611-F4080iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201909-202112

52618ABSORBER, FRONT BUMPER, LOWER

main52618-F4010iNGX10,50,ZGX10,ZYX10201610-201909

main52618-F4080iNGX10..RUS201909-202112

53019BSHUTTER SUB-ASSY, RADIATOR

5302

53155GSEAL, RADIATOR GRILLE

53157BSEAL, RADIATOR GRILLE, NO.3

53158CSEAL, RADIATOR GRILLE, NO.4

53398ASEAL, RADIATOR, LOWER

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-F4020iNGX10,50,ZGX10,ZYX10201610-202112

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-F4020iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

8101

85667ECOVER, MOTOR

88940CACTUATOR ASSY, SWING GRILLE

90119W0177

main90119-W0177

90119W0192

main90119-W0192

9015950311

main90159-50311

9017908241

main90179-08241

91673A0620

main91673-A0620

91674A1028

main91674-A1028

26 parts on this diagram · 5 diagrams in section
