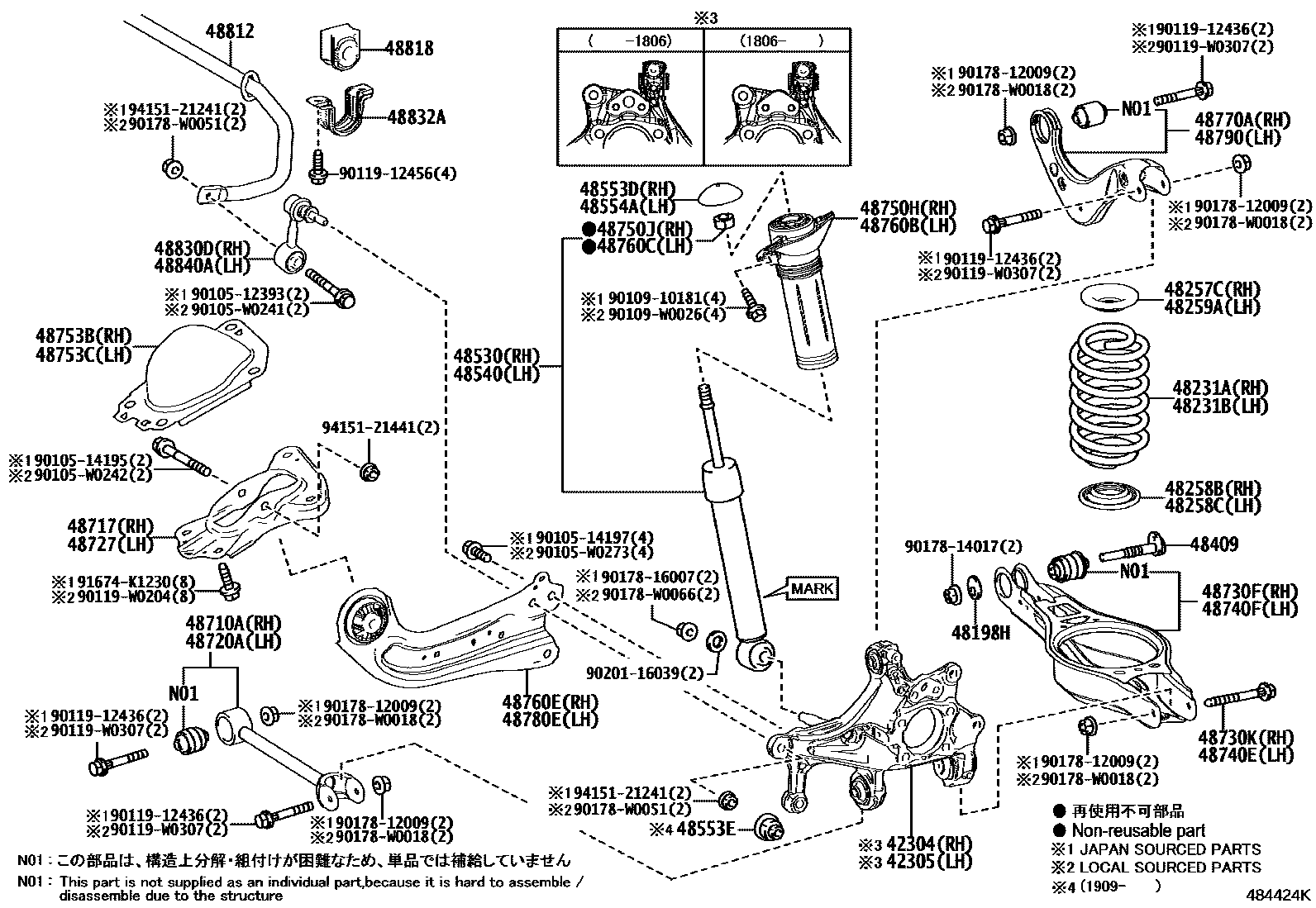

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-F4030iNGX10,50,ZGX10,ZYX10201610-201806

sub42304-F4031

main42304-F4031iNGX10,50,ZGX10,ZYX10201806-202112

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-F4030iNGX10,50,ZGX10,ZYX10201610-201806

sub42305-F4031

main42305-F4031iNGX10,50,ZGX10,ZYX10201806-202112

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010iNGX10,50,ZGX10,ZYX10201610-202112

48231ASPRING, COIL, REAR RH

main48231-F4010iNGX10..EUR201610-201802

main48231-F4030iNGX10..RUS201610-201708

sub48231-F4031

main48231-F4031iNGX10..RUS201709-202112

main48231-F4040iZGX10201610-201708

sub48231-F4041

main48231-F4041iZYX10..LHD..(E,G,N)201909

ARGENTINA SPEC

main48231-F4041iZGX10201909

SOUTH & CENTRAL AMERICA SPEC

main48231-F4041iZYX10..LHD..(E,G,N)201909

PERU SPEC

main48231-F4041iZYX10..LHD..(E,G,N)201909

CHILE SPEC

main48231-F4041iZGX10201709-201909

main48231-F4060iNGX50201610-201708

sub48231-F4061

main48231-F4061iNGX50..RUS201709-201909

main48231-F4070iZYX10201610-201801

sub48231-F4071

main48231-F4071iMAXH10,ZYX1#201802-201909

main48231-F4160iNGX10..EUR201802-201909

main48231-F4180iNGX50..EUR201802-201909

48231BSPRING, COIL, REAR LH

main48231-F4010iNGX10..EUR201610-201802

main48231-F4030iNGX10..RUS201610-201708

sub48231-F4031

main48231-F4031iNGX10..RUS201709-202112

main48231-F4040iZGX10201610-201708

sub48231-F4041

main48231-F4041iZYX10..LHD..(E,G,N)201909

ARGENTINA SPEC

main48231-F4041iZGX10201709-201909

main48231-F4041iZGX10201909

PERU SPEC

main48231-F4041iZGX10201909

CHILE SPEC

main48231-F4041iZGX10201909

SOUTH & CENTRAL AMERICA SPEC

main48231-F4060iNGX50201610-201708

sub48231-F4061

main48231-F4061iNGX50..RUS201709-201909

main48231-F4070iZYX10201610-201801

sub48231-F4071

main48231-F4071iZYX10201802-201909

main48231-F4160iNGX10..EUR201802-201909

main48231-F4180iNGX50..EUR201802-201909

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-F4010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-F4010iNGX10..RUS201610-202112

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011iNGX10,50,ZGX10,ZYX10201610-202112

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-F9010iNGX10..RUS201610-202112

MARK 48530-F4010

main48530-F9020iZYX1#201610-201909

MARK 48530-F4020

main48530-F9030iZYX10..E,G,N201909

MARK 48530-F4030,CHILE SPEC

main48530-F9030iNGX50201610-201909

MARK 48530-F4030

main48530-F9030iNGX50201909

MARK 48530-F4030,ARGENTINA SPEC

main48530-F9030iNGX50201909

MARK 48530-F4030,PERU SPEC

main48530-F9030iNGX50201909

MARK 48530-F4030,SOUTH & CENTRAL AMERICA SPEC

main48530-F9040iZGX10201610-201909

MARK 48530-F4040

main48530-F9080iMAXH10201909

MARK 48530-F4130

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-F9010iNGX10..EUR201610-202112

MARK 48530-F4010

main48530-F9020iZYX1#201610-201909

MARK 48530-F4020

main48530-F9030iZYX10..LHD..(E,G,N)201909

MARK 48530-F4030,ARGENTINA SPEC

main48530-F9030iZYX10..LHD..(E,G,N)201909

MARK 48530-F4030,PERU SPEC

main48530-F9030iZYX10..LHD..(E,G,N)201909

MARK 48530-F4030,CHILE SPEC

main48530-F9030iZYX10..LHD..(E,G,N)201909

MARK 48530-F4030,SOUTH & CENTRAL AMERICA SPEC

main48530-F9030iZYX10..LHD..(E,G,N)201610-201909

MARK 48530-F4030

main48530-F9040iZGX10201610-201909

MARK 48530-F4040

main48530-F9080iMAXH10201909

MARK 48530-F4130

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48553ECAP

main48553-52030iNGX10..RUS201909-202112

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-02090iNGX10..RUS201811-202112

main48710-47010iNGX10,50,ZGX10,ZYX10201610-201811

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-F4010iNGX10..RUS201610-202112

sub48717-F4090

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-02090iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201811-202112

main48710-47010iNGX10,50,ZGX10,ZYX10201610-201811

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-F4010iNGX10..RUS201610-202112

sub48727-F4050

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4010iNGX10..RUS201610-202112

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

(J)

main90119-W0278iNGX10..RUS201610-202112

(L)

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iNGX10,50,ZGX10,ZYX10201610-202112

(J)

main90119-W0278iNGX10,50,ZGX10,ZYX10201610-202112

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4010iNGX10..RUS201610-202112

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iNGX10,50,ZGX10,ZYX10201610-202112

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-F4020iNGX10,50,ZGX10,ZYX10201610-202112

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iNGX10,50,ZGX10,ZYX10201610-202112

48760EARM ASSY, TRAILING, REAR RH

main48760-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-F4010iNGX10..RUS201610-202112

48780EARM ASSY, TRAILING, REAR LH

main48780-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-F4010iNGX10,50,ZGX10,ZYX10201610-202112

48812BAR, STABILIZER, REAR

main48812-F4010iNGX10,ZGX10,ZYX10201610-202112

main48812-F4020iNGX50201610-201909

main48812-F4070iMAXH10201909

48818BUSH, STABILIZER, REAR

main48818-10022iNGX50201904-201909

main48818-F4010iZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

main48818-F4020iNGX50201610-201903

sub48818-10022

48830DLINK ASSY, REAR STABILIZER, RH

main48830-47010iNGX10..RUS201610-202112

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-F4010iNGX10..RUS201610-202112

main48832-F4020iNGX50201610-201909

48840ALINK ASSY, REAR STABILIZER, LH

main48830-47010iNGX50,ZGX10;MAXH10,NGX10,ZYX1#..EUR201610-202112

9010512393

main90105-12393

9010514195

main90105-14195

9010514197

main90105-14197

90105W0241

main90105-W0241

90105W0242

main90105-W0242

90105W0273

main90105-W0273

9010910181

main90109-10181

90109W0026

main90109-W0026

9011912436

main90119-12436

9011912456

main90119-12456

90119W0204

main90119-W0204

90119W0307

main90119-W0307

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

90178W0018

main90178-W0018

90178W0051

main90178-W0051

90178W0066

main90178-W0066

9020116039

main90201-16039

91674K1230

main91674-K1230

9415121241

main94151-21241

9415121441

main94151-21441

60 parts on this diagram · 2 diagrams in section
