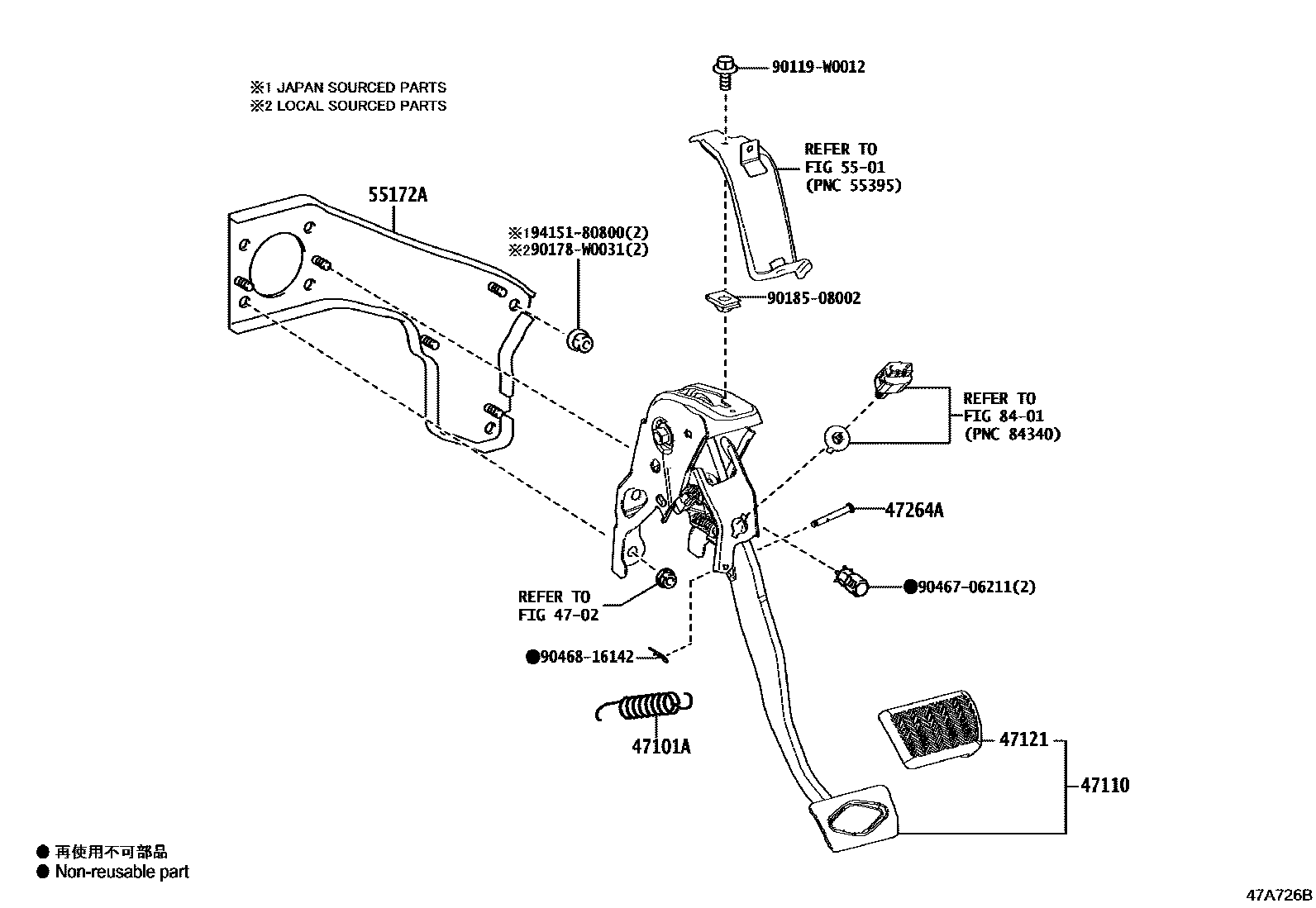

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iNGX10,50,ZGX10201610-202112

main90507-16030iZYX10201610-201909

47110SUPPORT ASSY, BRAKE PEDAL

main47110-F4010iNGX50,ZGX10..RUS201909

TAIWAN SPEC

main47110-F4010iNGX50,ZGX10..RUS201610-201909

main47110-F4020iNGX10..LHD..CVT;NGX50..(G,K,N)..EUR201610-202008

main47110-F4030iNGX10..RUS201610-202112

main47110-F4040iNGX10..LHD..6F..EUR201610-202009

main47110-F4060iNGX10,50..RHD..CVT201610-202009

main47110-F4080iNGX10..RHD..6F201610-202009

main47110-F4090iMAXH10,ZYX1#..LHD201610-201909

main47110-F4100iZYX10..RHD201610-201909

47121PAD, BRAKE PEDAL

main47121-F4010iNGX10,50,ZGX10,ZYX10..CVT201610-201909

main47121-F4020iNGX10..6F201610-202112

47264APIN(FOR PUSH ROD)

main90249-06187iNGX50,ZGX10..RUS201909

TAIWAN SPEC

main90249-06187iNGX10,50,ZGX10..RUS201610-202112

main90249-08221iNGX50..(G,K,N)..EUR;MAXH10,NGX10,ZYX1#..EUR201610-202008

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-F4010iMAXH10,NGX10,50,ZGX10,ZYX1#..LHD201610-201910

main55172-F4011iNGX10..LHD..EUR;MAXH10,NGX50,ZGX10,ZYX1#..LHD201911-202112

main55172-F4020iMAXH10,NGX10,ZYX1#..RHD201610-201910

main55172-F4021iMAXH10,NGX10,ZYX1#..RHD201911

8401

90119W0012

main90119-W0012

90178W0031

main90178-W0031

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

14 parts on this diagram · 4 diagrams in section
