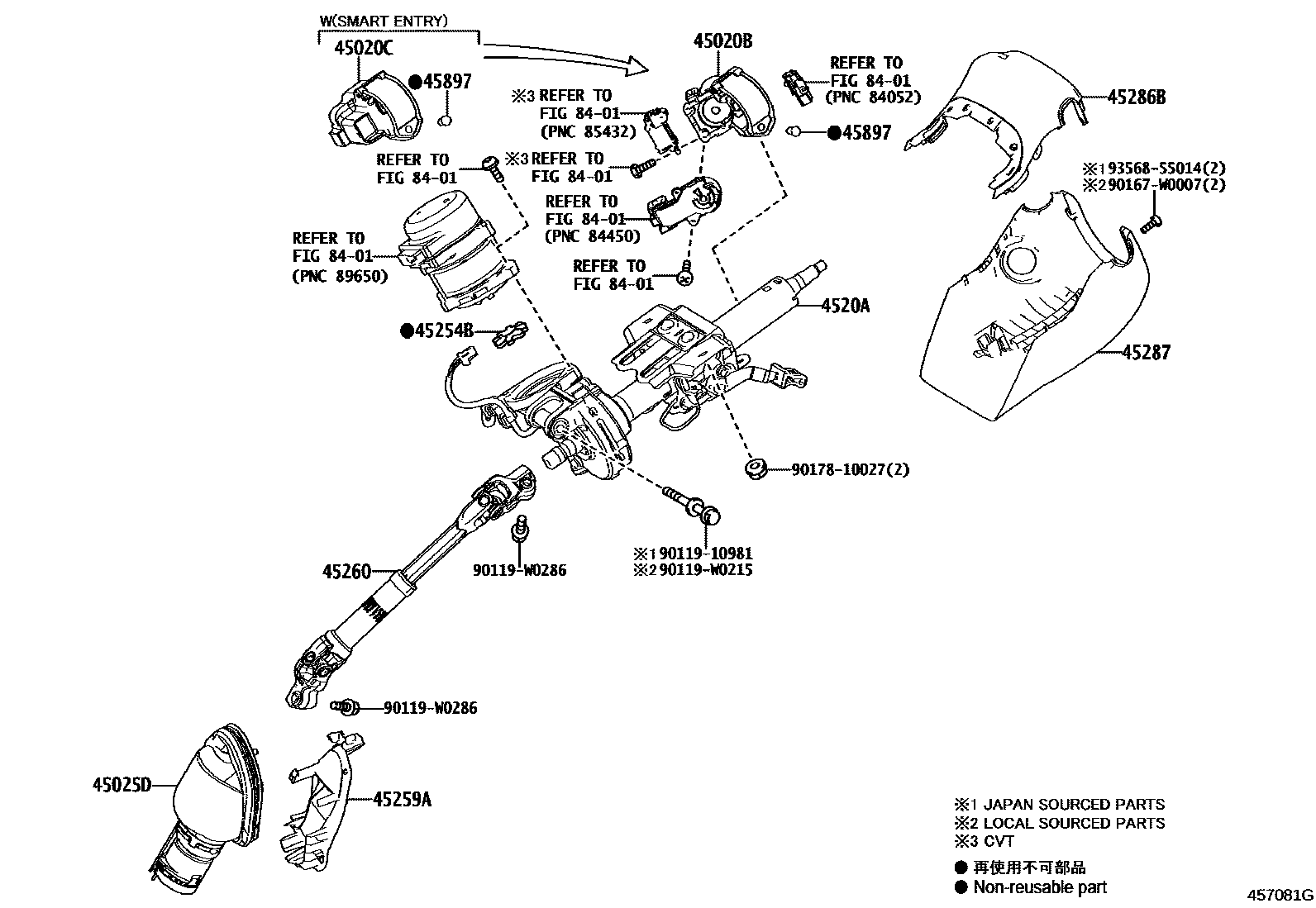

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
LIGHT GRADE
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)
MEXICO SPEC
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
LIGHT GRADE
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
MEXICO SPEC
MEXICO SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#,8#
sub45286-F4010
main45286-F4010-C2iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201909-202112
BLACK,TRIM2#,4#,8#
sub45286-F4010
main45286-F4010-C2iNGX10..(E,G,K)..EUR;ZYX10..LHD..(E,G,K);MAXH10,NGX50,ZGX10,ZYX11..E,G,K201805-202112
BLACK,TRIM2#
sub45286-F4010
45287COVER, STEERING COLUMN, LWR
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)),EU BLACK,TRIM2#
sub45287-F4020
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)),BLACK,TRIM2#
sub45287-F4020
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR)),BLACK,TRIM2#,4#,8#
sub45287-F4020
45897BOLT, STEERING LOCK SET
main45897-12020iNGX10..(E,G)..EUR;NGX50,ZGX10..E..RUS;NGX10..LHD..(K,N)..EUR;MAXH10,NGX50,ZYX1#..EUR201909
LIGHT GRADE
WIRELESS DOOR LOCK-WITH(SMART ENTRY(*DRP DOOR & BACK DOOR))
MEXICO SPEC
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & HORN)
8401
9011910981
main90119-10981
90119W0215
main90119-W0215
90119W0286
main90119-W0286
90167W0007
main90167-W0007
9017810027
main90178-10027
9356855014
main93568-55014
17 parts on this diagram · 2 diagrams in section
