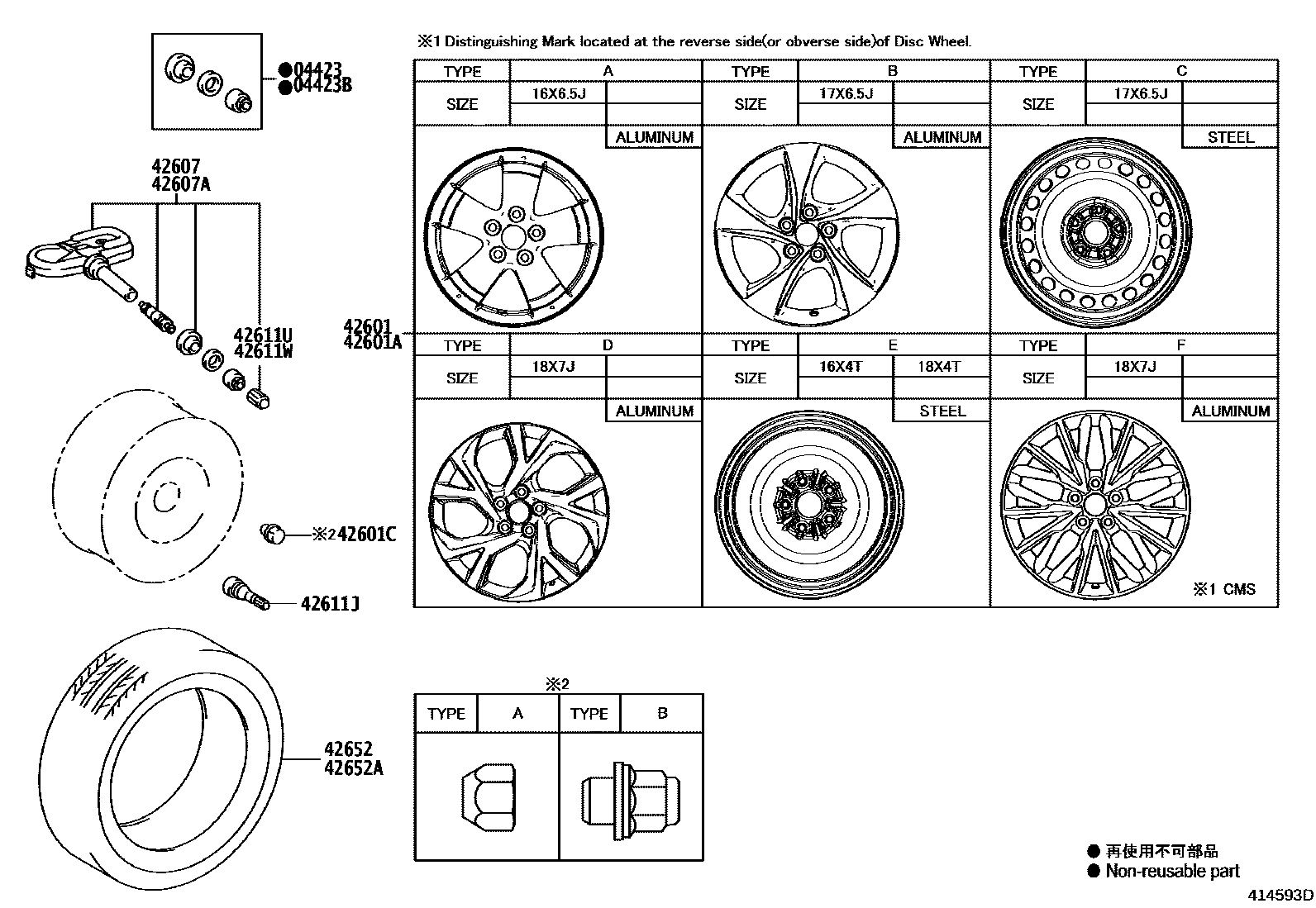

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
42601WHEEL, DISC
17X6.5J,#,TYPE C:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE B:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
17X6.5J, #,TYPE B:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM,TYPE B:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R/17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
18X7J, #,TYPE D:REFER ILLUST.
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,BLACK,TYPE D:REFER ILLUST.
main42611-F4140iNGX50..(G,K)..EUR;NGX10..RHD..(E,G,K);MAXH10,ZYX11..E,G,K;ZYX10..LHD..(E,G,K);NGX10..LHD..6F..(E,G,K)..EUR201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
17X6.5J, #,TYPE G:REFER ILLUST.
main42611-F4140iZGX10;ZYX10..RHD;NGX50..(E,G,K)..RUS;NGX50,ZYX10..LHD..N;MAXH10,NGX10,ZYX11..N..EUR201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES,TYPE G:REFER ILLUST.
main42611-F4140iZGX10;ZYX10..RHD;NGX50..(E,G,K)..RUS;NGX50,ZYX10..LHD..N;MAXH10,NGX10,ZYX11..N..EUR201909
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE G:REFER ILLUST.
17X6.5J, #,CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARETIRE-GROUND TIRE,TYPE G:REFER ILLUST.
17X6.5J, #,CHILE SPEC&TIRE & DISC WHEEL-215/60R17,ALUMINUM,GENERAL COUNTRIES&SPARETIRE-TEMPORARY(T145/70D18),TYPE G:REFER ILLUST.
17X6.5J, #,TIRE & DISC WHEEL-215/60R17,ALUMINUM,TYPE G:REFER ILLUST.
18X7J, #,TIRE & DISC WHEEL-225/50R18,ALUMINUM,GRAY,TYPE H:REFER ILLUST.
main42611-F4150iNGX50..K..EUR;NGX10..RHD..(E,K);MAXH10,ZYX1#..E,K;NGX10..LHD..6F..(E,K)..EUR201909-202010
18X7J, #,TYPE H:REFER ILLUST.
18X7J,#,TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE O:REFER ILLUST.
18X7J,#,TYPE O:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-30F31
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
sub42611-30F31
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
sub42611-30F32
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-30F32
18X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
18X4T,TYPE E:REFER ILLUST.
18X4T,CHILE SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
18X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE E:REFER ILLUST.
18X4T,TYPE K:REFER ILLUST.
18X4T,SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
18X4T,SPARE TIRE-GROUND TIRE,TYPE K:REFER ILLUST.
18X4T,MEXICO SPEC&SPARE TIRE-GROUND TIRE,TYPE K:REFER ILLUST.
18X4T,CHILE SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
18X4T,ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
18X4T,TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/70D18),TYPE K:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-215/60R/17 ALUMINUM GENERAL COUNTRIES,TYPE B:REFER ILLUST.
TIRE & DISC WHEEL-225/50R18,ALUMINUM,ACCESSORY,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
TAIWAN SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
CHILE SPEC&SPARE TIRE-TEMPORARY(T145/70D18)
SPARE TIRE-TEMPORARY(T145/70D18)
ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
ISRAEL SPEC&SPARE TIRE-TEMPORARY(T145/70D18)
TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
TURKEY SPEC&SPARE TIRE-TEMPORARY(T145/70D18)
SPARE TIRE-TEMPORARY(T145/90D16)
MEXICO SPEC&SPARE TIRE-GROUND TIRE
SPARE TIRE-GROUND TIRE
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
42652TIRE
215/60R17,MICHELIN
215/60R17
215/60R17,*D/L
215/60R17,*D/L
42652ATIRE (FOR SPARE)
T145/70D18,*Y/H,SPARE TIRE-TEMPORARY(T145/70D18)
sub4265A-30012
T145/70D18,*Y/H,MEXICO SPEC&SPARE TIRE-GROUND TIRE
sub4265A-30012
T145/70D18,*Y/H,SPARE TIRE-GROUND TIRE
sub4265A-30012
T145/70D18,*Y/H,SPARE TIRE-GROUND TIRE
T145/70D18,*Y/H,MEXICO SPEC&SPARE TIRE-GROUND TIRE
T145/70D18,*Y/H
T145/70D18,*Y/H,SPARE TIRE-TEMPORARY(T145/70D18)
12 parts on this diagram · 4 diagrams in section
