TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

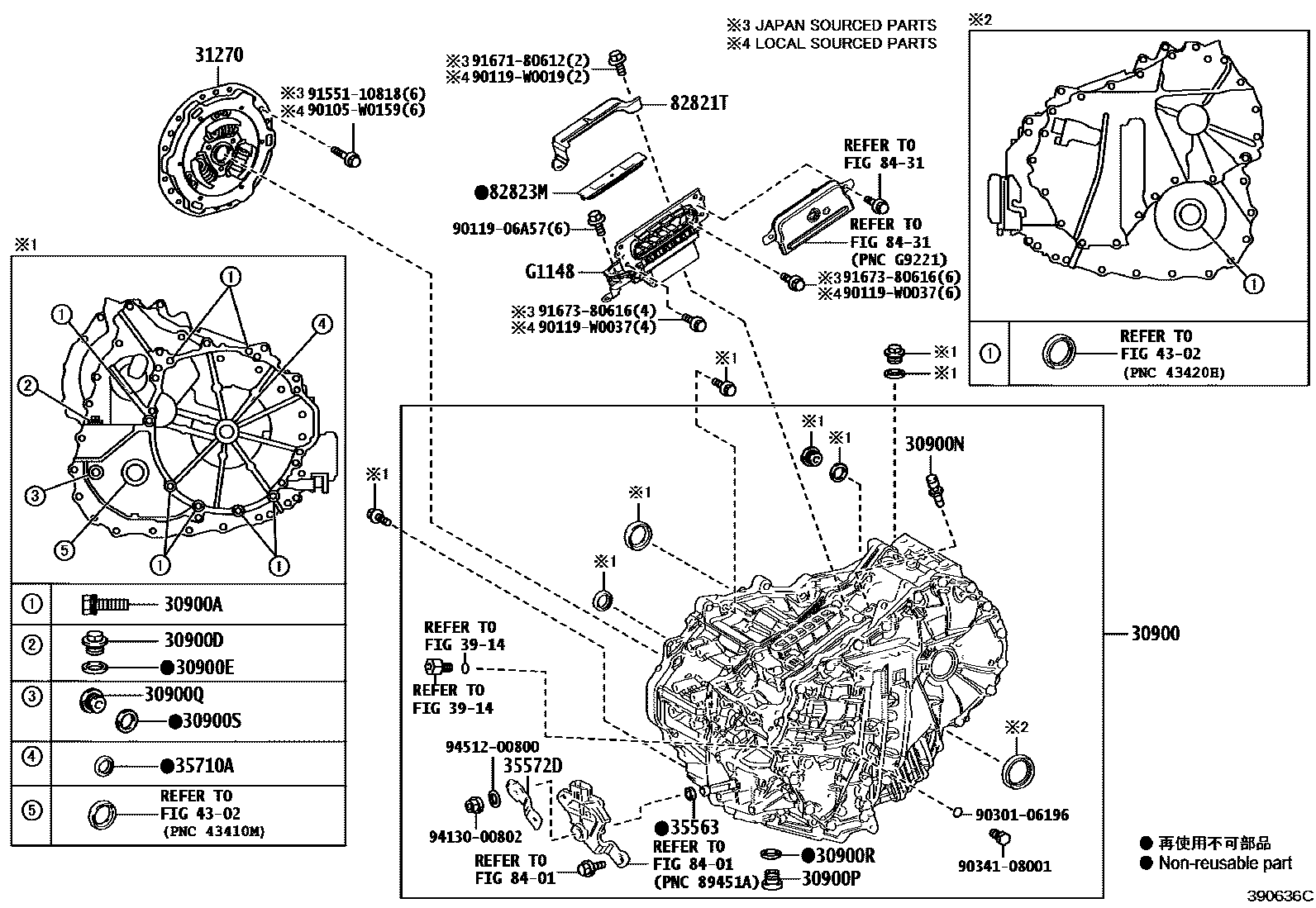

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47110iZYX10201610-201909

(J)

sub30900-47150

main30900-76010iMAXH10201909

main30900-F4010iZYX10201903-202211

(L)

sub30900-47110

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main90119-W0155iZYX10201610-201909

*10-1.25PX45-30,(L)

main90119-W0155iZYX1#201909

*10-1.25PX45-30

main91612-61045iZYX10201610-201909

*10-1.25PX45-30,(J)

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMAXH10,ZYX1#201610-201909

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZYX10201610-201909

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZYX10201610-201909

30900PPLUG, DRAIN(HEV)

main90341-18016iZYX10201610-201909

30900QPLUG, FILLER(HEV)

main90341-18016iZYX10201610-201909

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZYX10201610-201909

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZYX10201610-201909

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-12010iMAXH10201909

main31270-47070iZYX10201610-201909

35563SEAL, SHIFT CONTROL ACTUATOR

main90311-12016iZYX10201610-201909

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-10040iZYX10201610-201909

main35572-33070iMAXH10201909

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZYX10201610-201909

main90311-27011iMAXH10201909

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZYX10201610-201909

82823MCAP, TERMINAL

main82823-47040iMAXH10,ZYX1#201610-201909

8401

8431

G1148CABLE, MOTOR

mainG114833050iMAXH10201909

mainG114847070iZYX10201610-201909

90105W0159

main90105-W0159

9011906A57

main90119-06A57

90119W0019

main90119-W0019

90119W0037

main90119-W0037

9030106196

main90301-06196

9034108001

main90341-08001

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

9413000802

main94130-00802

9451200800

main94512-00800

31 parts on this diagram · 2 diagrams in section
