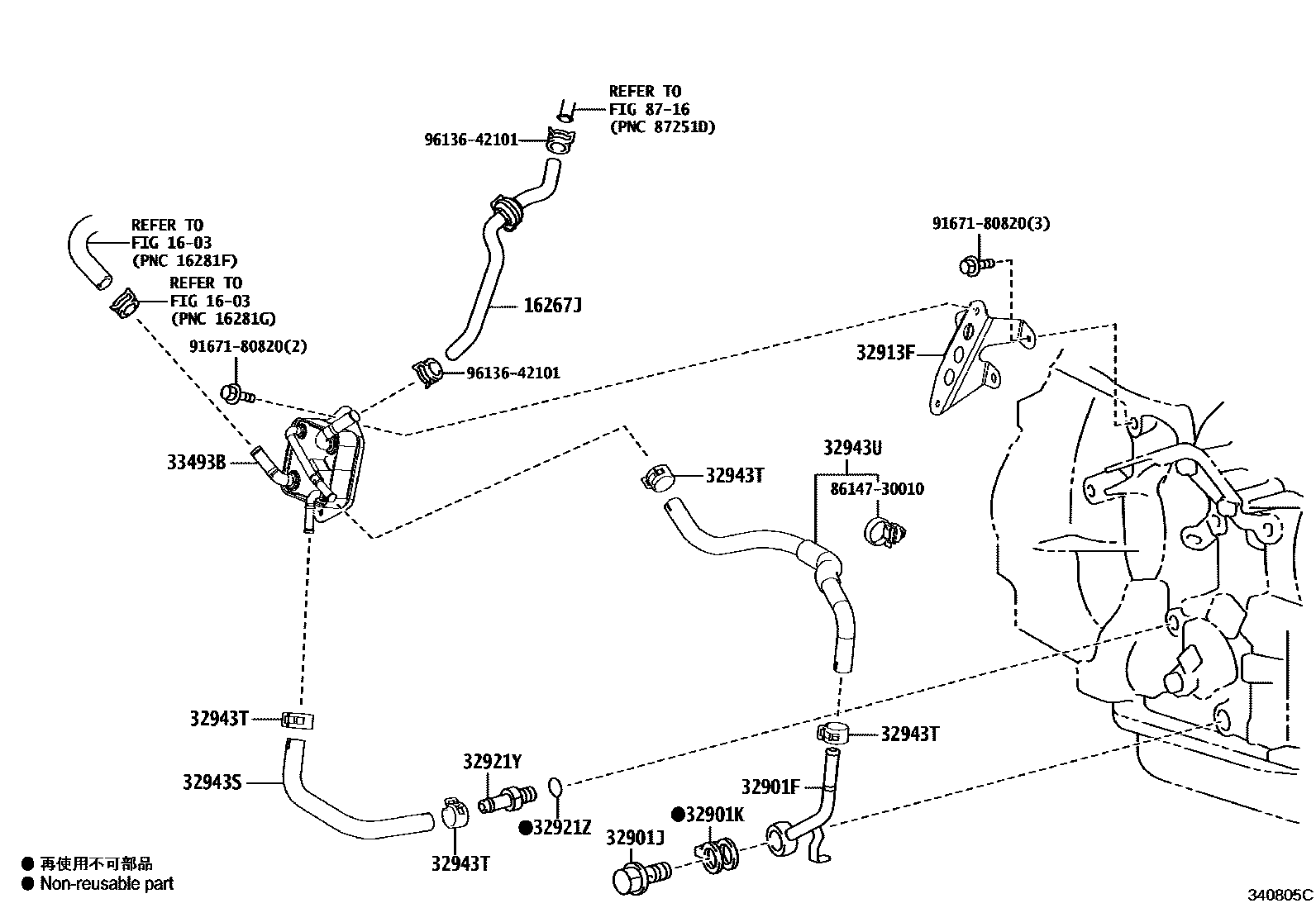

OIL COOLER & TUBE(CVT)

1603

16267JHOSE, WATER BY-PASS, NO.3

main16267-0T180i3ZRFAE..ZGX10201610-201909

32901FELBOW SUB-ASSY, OIL COOLER

main32901-28010iZGX10201610-201909

32901JBOLT, UNION(FOR OIL COOLER)

main90401-14003iZGX10201610-201909

32901KGASKET(FOR OIL COOLER UNION)

main90430-14012iZGX10201610-201909

32913FBRACKET, TRANSMISSION OIL COOLER

main32913-F4010iZGX10201610-201909

32921YCONNECTOR, TUBE

main90404-13009iZGX10201610-201909

32921ZRING, O(FOR TUBE CONNECTOR)

main90301-10018iZGX10201610-201909

32943SHOSE, TRANSMISSION OIL COOLER, NO.1

main32943-10010iZGX10201610-201909

32943TCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iZGX10201610-201909

32943UHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-10020iZGX10201610-201909

33493BCOOLER, OIL

main33493-F4010iZGX10201610-201909

8716

8614730010

main86147-30010

9167180820

main91671-80820

9613642101

main96136-42101

16 parts on this diagram · 1 diagram in section
