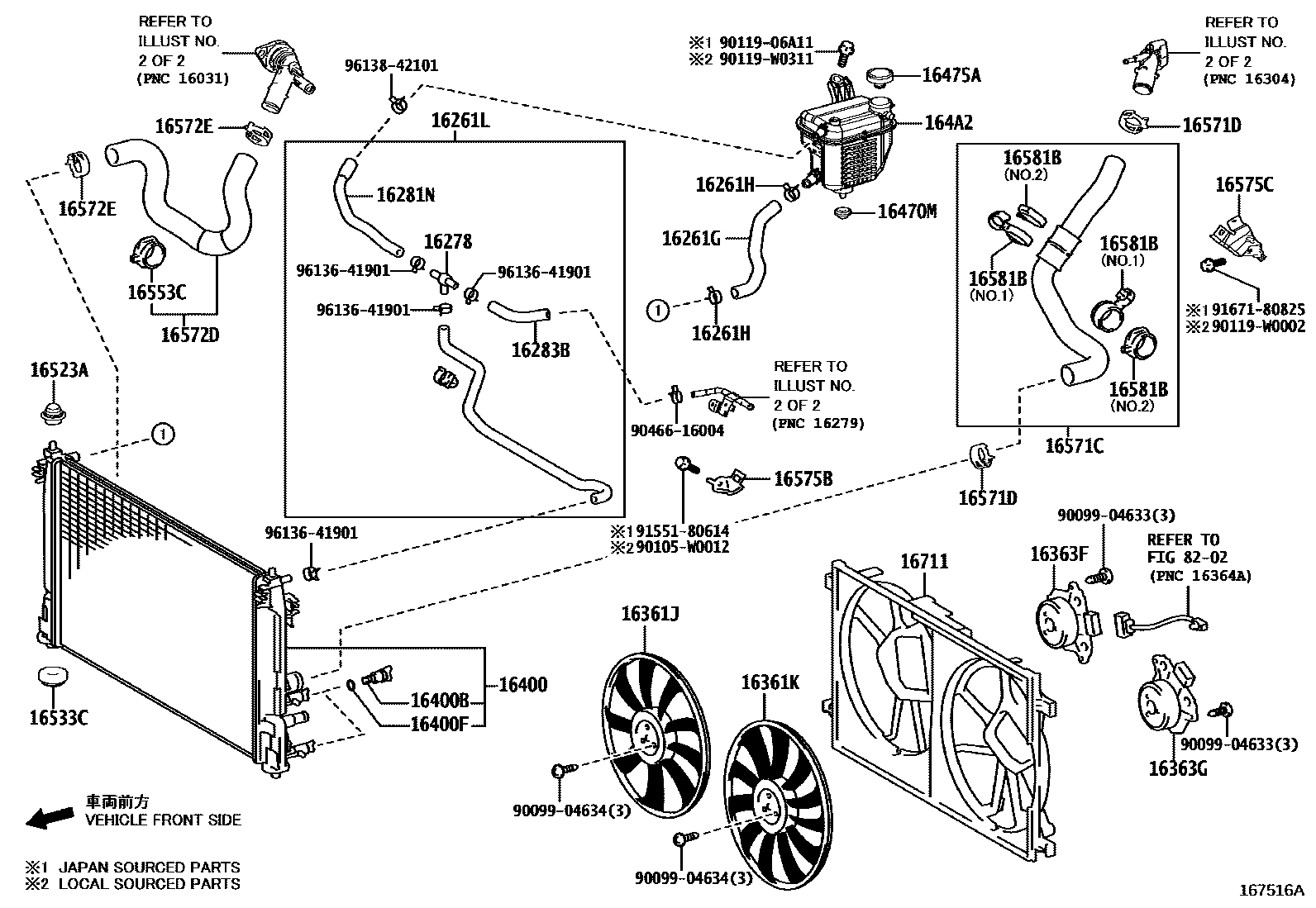

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
(L)
(J)
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
(L),TYPE B:REF ILL.
(J),TYPE B:REF ILL.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
(J)
16261LHOSE, WATER BY-PASS
16278PIPE, WATER BY-PASS, NO.2
16281HOSE, WATER BY-PASS, NO.4
*132
*613
16281NHOSE, WATER BY-PASS, NO.4
16283HOSE, WATER BY-PASS, NO.6
(L)
GUADELOUPE SPEC,(L)
MARTINIQUE SPEC,(L)
GREENLAND SPEC,(L)
FRENCH GUIANA SPEC,(L)
*132
GREENLAND SPEC,(J)
(J)
FRENCH GUIANA SPEC,(J)
GUADELOUPE SPEC,(J)
MARTINIQUE SPEC,(J)
*613
16283BHOSE, WATER BY-PASS
16361FAN
16361JFAN, RH
16361KFAN, LH
16363MOTOR, COOLING FAN
16363FMOTOR, COOLING FAN, RH
16363GMOTOR, COOLING FAN, LH
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16553CCLAMP, HOSE
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
(L)
NO.2
(L),NO.1
(L),NO.2
NO.2
NO.1
(J),NO.2
(J),NO.1
(J)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.2
(L)
(L),NO.2
NO.1
(J),NO.2
(J)
16575BBRACKET, WATER HOSE CLAMP, NO.2
16575CBRACKET, WATER HOSE CLAMP, NO.1
16581CLAMP, HOSE(FOR WATER HOSE)
NO.2
NO.1
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16711SHROUD, FAN
8202
9009904633
main90099-04633
9009904634
main90099-04634
90105W0012
main90105-W0012
9011906A11
main90119-06A11
90119W0002
main90119-W0002
90119W0311
main90119-W0311
9046616004
main90466-16004
9155180614
main91551-80614
9167180825
main91671-80825
9613641901
main96136-41901
9613842101
main96138-42101
45 parts on this diagram · 12 diagrams in section
