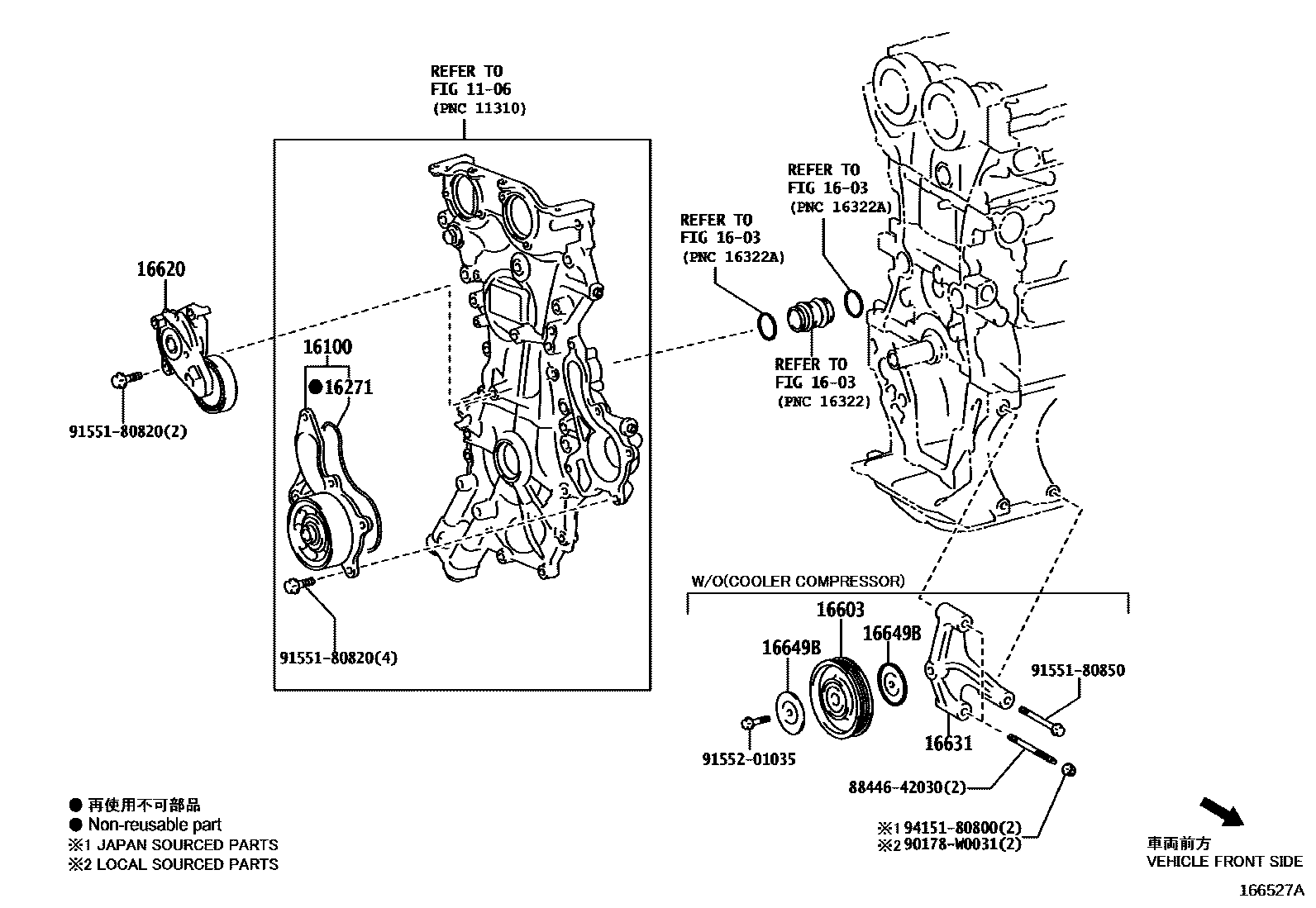

WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-39565i3ZRFAE..ZGX10201610-201909

main16100-80014i8NRFTS..NGX50;8NRFTS..NGX10..EUR201610-202112

main161A0-39035i2ZRFXE..ZYX1#201610-201909

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZYX1#201610-201909

main16271-37030i3ZRFAE..ZGX10201610-201909

main16271-47060i8NRFTS..NGX10..RUS201610-202112

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-50030

16620TENSIONER ASSY, V-RIBBED BELT

main16620-37030i3ZRFAE..ZGX10201610-201909

main16620-47060i8NRFTS..NGX10,50201610-201612

sub16620-47061

main16620-47061i8NRFTS..NGX10,50201701-202112

16631BRACKET, IDLER PULLEY

main16631-47010

16649BPLATE, IDLER PULLEY COVER

8844642030BOLT, IDLE PULLEY

main88446-42030

90178W0031

main90178-W0031

9155180820

main91551-80820

9155180850

main91551-80850

9155201035

main91552-01035

9415180800

main94151-80800

14 parts on this diagram · 3 diagrams in section
