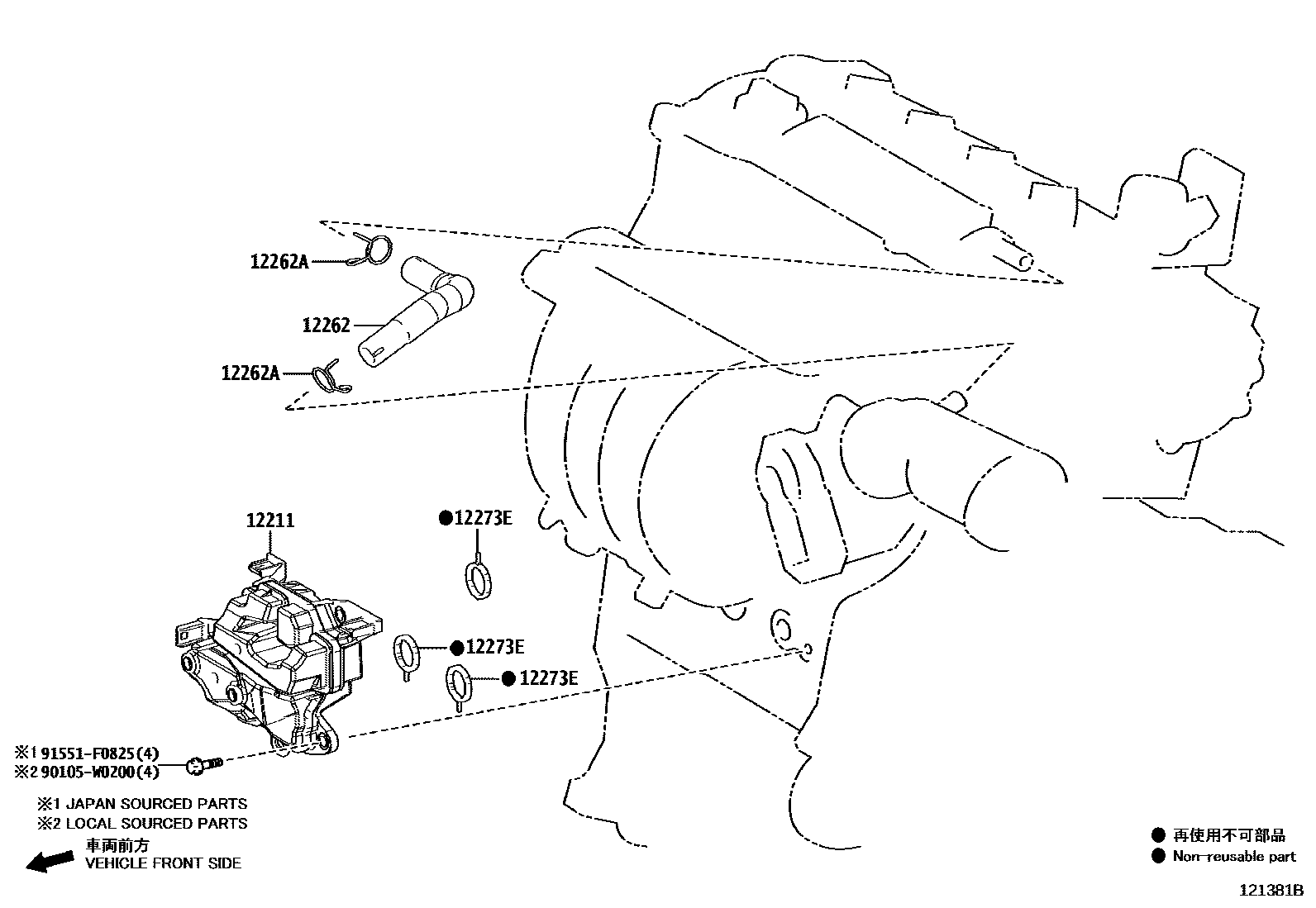

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12211CASE, VENTILATION, NO.1

main12211-0T010i2ZRFXE..ZYX1#201610-201909

(L)

main12211-24010iM20AFXS..MAXH10201909-202208

*132

main12211-24020iM20AFXS..MAXH10202208-202304

*132

main12211-37010i2ZRFXE..ZYX1#201610-201909

(J)

main12211-F2020iM20AFXS..MAXH10201909

*613

12262HOSE, VENTILATION, NO.2

main12262-0T080i2ZRFXE..ZYX1#202007

*545

main12262-24030iM20AFXS..MAXH10201909

main12262-37020i3ZRFAE..ZGX10201610-201909

main12262-37060i2ZRFXE..ZYX10201801-201909

*544

main12262-37060i2ZRFXE..ZYX10201610-201701

main12262-37110i2ZRFXE..ZYX10201702-202006

*545

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i2ZRFXE,3ZRFAE..ZGX10,ZYX10201610-201909

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iM20AFXS..MAXH10201909

*613

main12273-24010iM20AFXS..MAXH10201909-202304

*132

90105W0200

main90105-W0200

91551F0825

main91551-F0825

6 parts on this diagram · 4 diagrams in section
