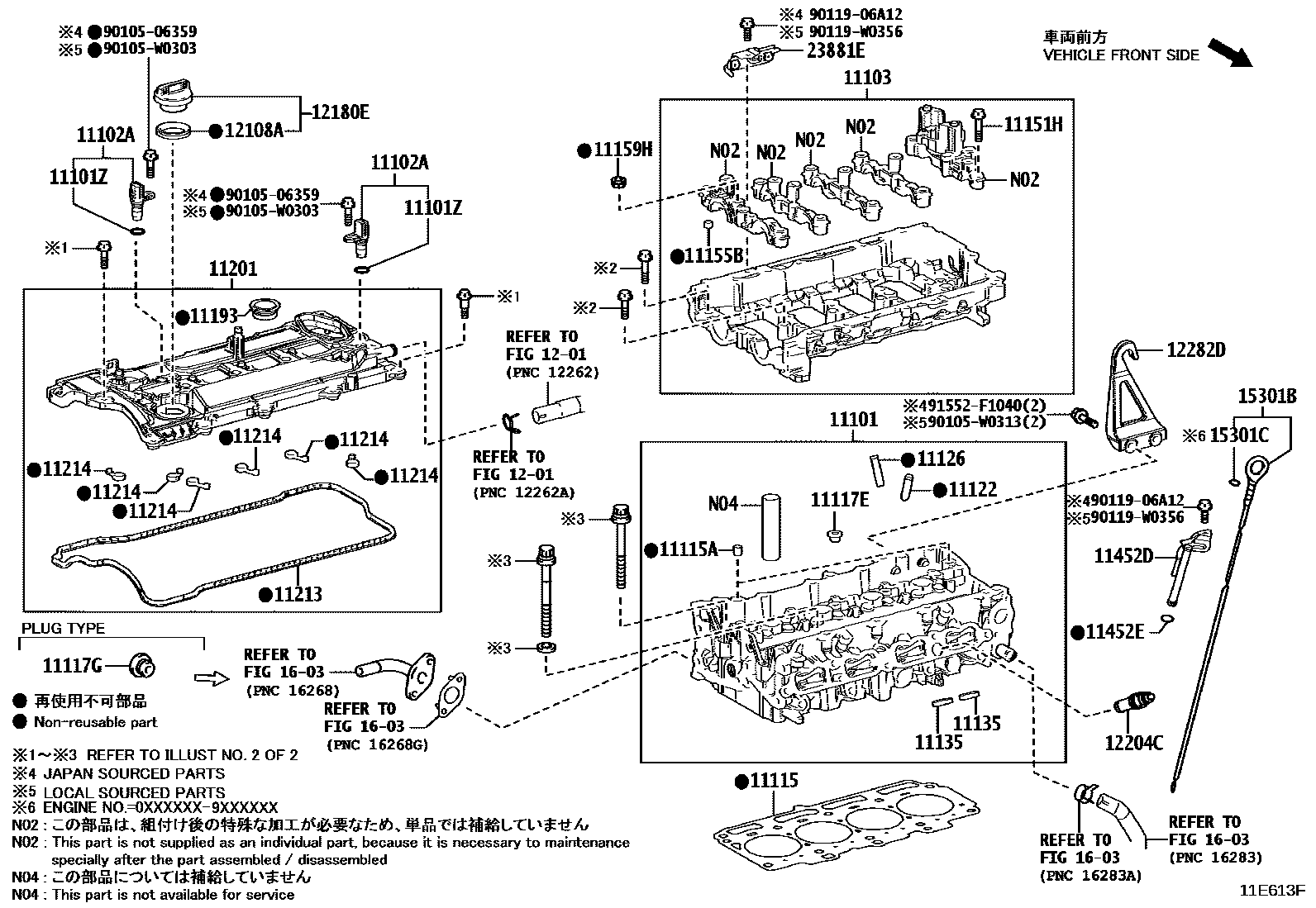

CYLINDER HEAD
11101ZO RING, CAM POSITION SENSOR
*132
*613
11102ASENSOR, CAMSHAFT POSITION
*132
*613
11115APIN, RING
*132
*613
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*132
*613
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD,*613
STD
STD,*132
STD
O/S 0.05
O/S 0.05,*613
O/S 0.05
O/S 0.05,*132
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD,*613
STD
O/S 0.05
O/S 0.05,*613
STD
O/S 0.05
11135SEAT, EXHAUST VALVE
STD,*132
STD
STD
STD
STD
STD,*613
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*613
*132
11155BPIN, RING
*613
*132
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*613
*132
11193GASKET, SPARK PLUG TUBE
*132
*613
11201COVER SUB-ASSY, CYLINDER HEAD
MADE IN EUROPE
*132
*613
*132
MADE IN JAPAN
11213GASKET, CYLINDER HEAD COVER
*613
*132
11214GASKET, CYLINDER HEAD COVER, NO.2
*613
*132,*613
*132
11452DGUIDE, OIL LEVEL GAGE
*132
*613
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
*132
*613
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
*613
*132
12180ECAP ASSY, OIL FILLER
*132
*613
12204CVALVE SUB-ASSY, VENTILATION
*613
(J),*613
*132
(L),*613
12282DHANGER, ENGINE, NO.2
(L),NO PAINTED
(L)
*613
*132
NO PAINTED
(J)
(J),NO PAINTED
PAINTED=WHITE
15301BGAGE SUB-ASSY, OIL LEVEL
*132
*613
15301CRING, O(FOR OIL LEVEL GAGE)
*132
1603
23881EBRACKET, FUEL HOSE
*132,*613
9010506359
main90105-06359
90105W0303
main90105-W0303
90105W0313
main90105-W0313
9011906A12
main90119-06A12
90119W0356
main90119-W0356
91552F1040
main91552-F1040
36 parts on this diagram · 8 diagrams in section
