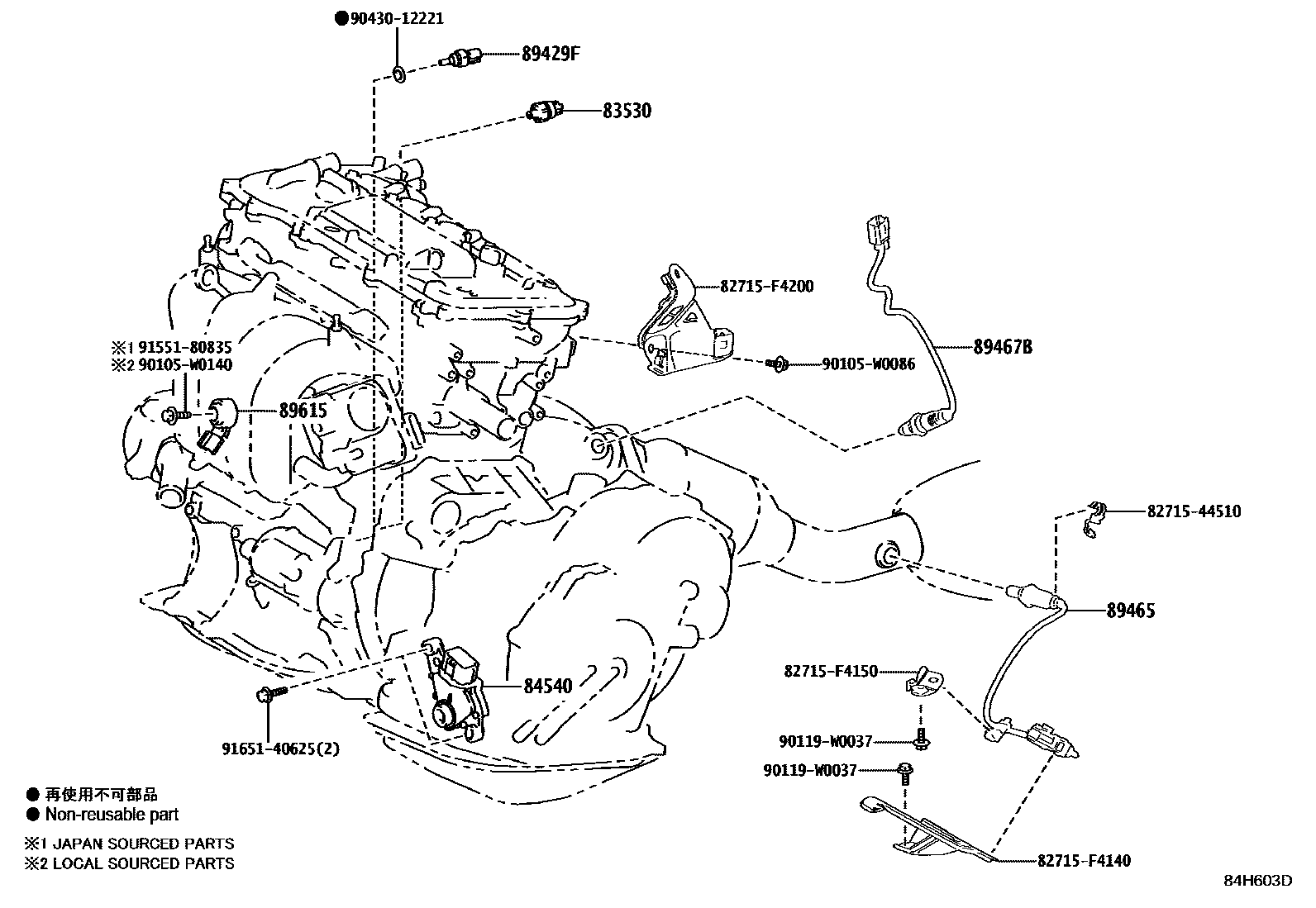

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1STEERING 0007 1SEAT 0008 1DOOR & ROOF 0009 1FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZGX10201702-202210

DENSO

main83530-60020iZGX10201702-202210

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-28030iZGX10201702-202210

89429FSENSOR, TEMPERATURE

main89429-12010iZGX10201702-202210

89465SENSOR, OXYGEN

main89465-10080iZGX10201702-202210

89467BSENSOR, AIR FUEL RATIO

main89467-12260iZGX10201702-202210

89615SENSOR, KNOCK CONTROL

main89615-02020iZGX10201909-202210

MARK 89615-02020

main89615-20090iZGX10201702-201909

main89615-20090iZGX10201909-202210

MARK 89615-20090

8271544510BRACKET,WIRING HARNESS CLAMP

main82715-44510

82715F4140BRACKET,WIRING HARNESS CLAMP

main82715-F4140

82715F4150BRACKET,WIRING HARNESS CLAMP

main82715-F4150

82715F4200BRACKET,WIRING HARNESS CLAMP

main82715-F4200

90105W0086

main90105-W0086

90105W0140

main90105-W0140

90119W0037

main90119-W0037

9043012221

main90430-12221

9155180835

main91551-80835

9165140625

main91651-40625

16 parts on this diagram · 9 diagrams in section
