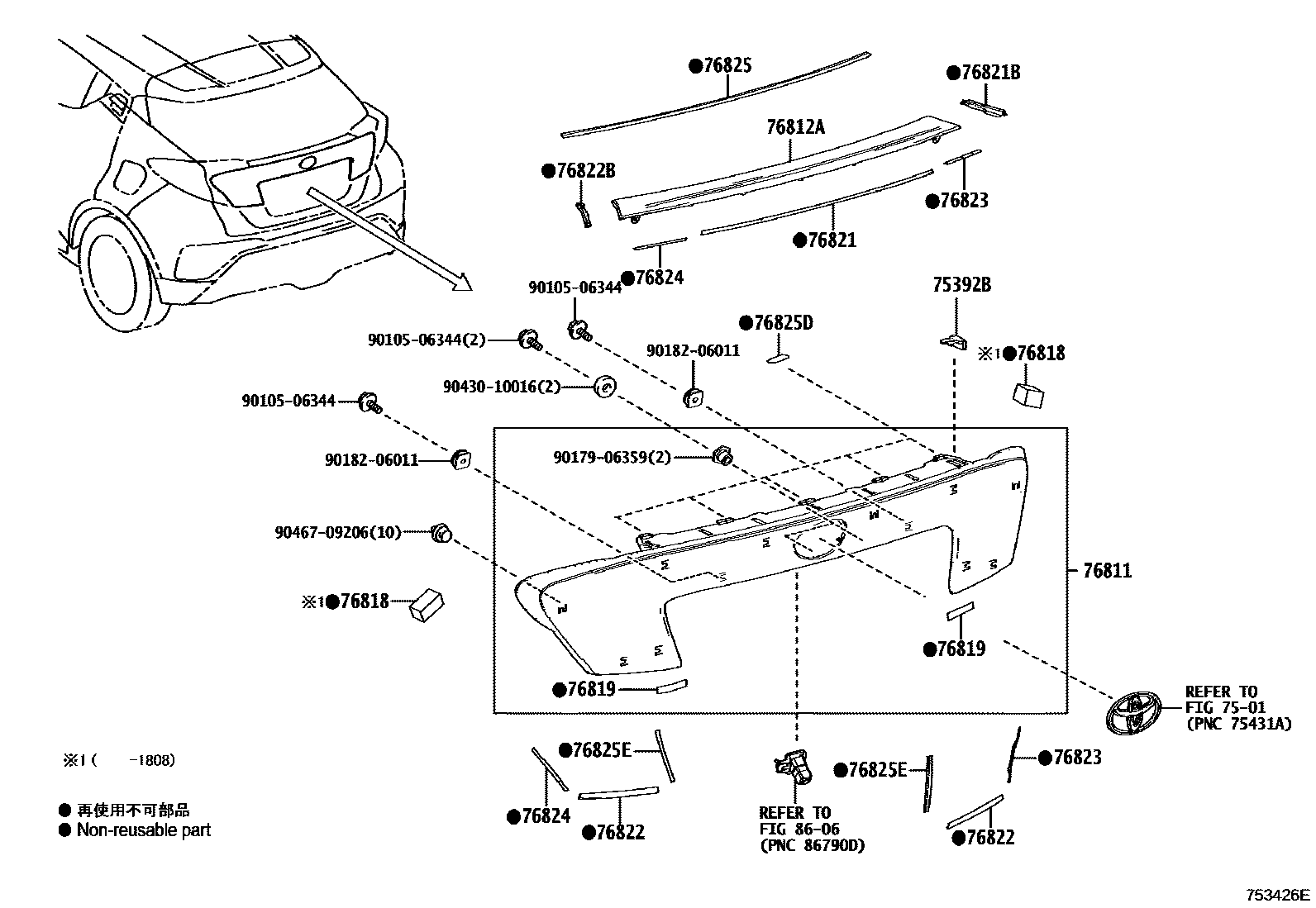

REAR MOULDING

7501

75392BRETEINER, OUTSIDE MOULDING, NO.1

main75392-35200×7iZGX10201702-201909

76811GARNISH, BACK DOOR, OUTSIDE

main76811-F4901iZGX10201702-201909

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-F4901iZGX10201702-201909

76818PAD, BACK DOOR OUTSIDE GARNISH

main52462-F4010×2iZGX10201702-201808

76819SEAL, BACK DOOR OUTSIDE GARNISH

main76819-F4020×2iZGX10201702-201909

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76823-F4010iZGX10201702-201909

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76841-F4010iZGX10201702-201909

76822PROTECTOR, BACK DOOR GARNISH MOULDING, LOWER

main76821-F4010×2iZGX10201702-201909

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76842-F4010iZGX10201702-201909

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76824-F4010×2iZGX10201702-201909

76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH

main76824-F4010×2iZGX10201702-201909

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-F4010iZGX10201702-201909

76825DPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1

main76835-F4010×5iZGX10201702-201909

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76822-F4010×2iZGX10201702-201909

8606

9010506344

main90105-06344

9017906359

main90179-06359

9018206011

main90182-06011

9043010016

main90430-10016

9046709206

main90467-09206

21 parts on this diagram · 1 diagram in section
