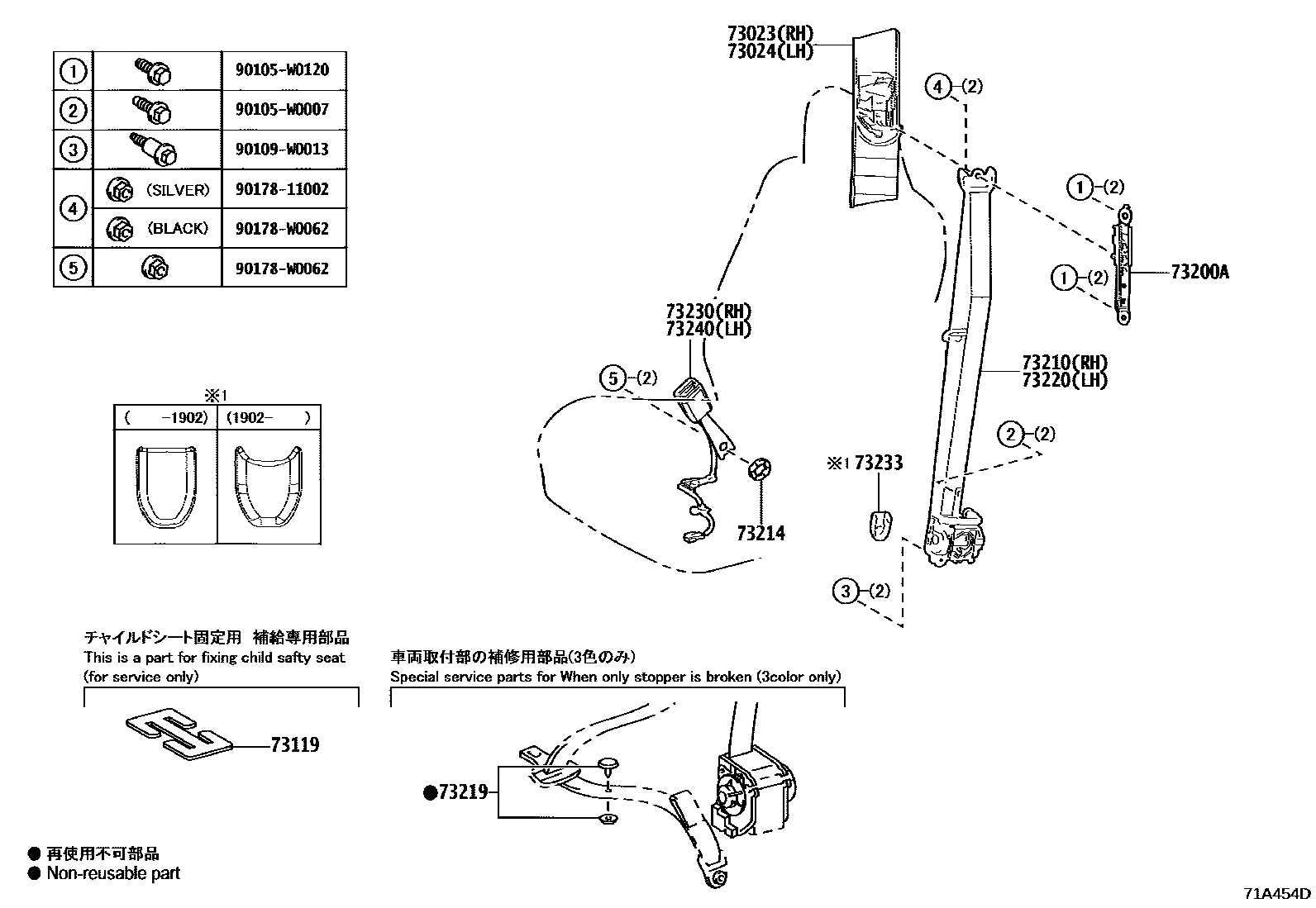

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73119PLATE, SEAT BELT WEBBING CLIP
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73214PLATE, FRONT SEAT BELT ANCHOR
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM8#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,4#,8#
90105W0007
main90105-W0007
90105W0120
main90105-W0120
90109W0013
main90109-W0013
9017811002
main90178-11002
90178W0062
main90178-W0062
16 parts on this diagram · 2 diagrams in section
