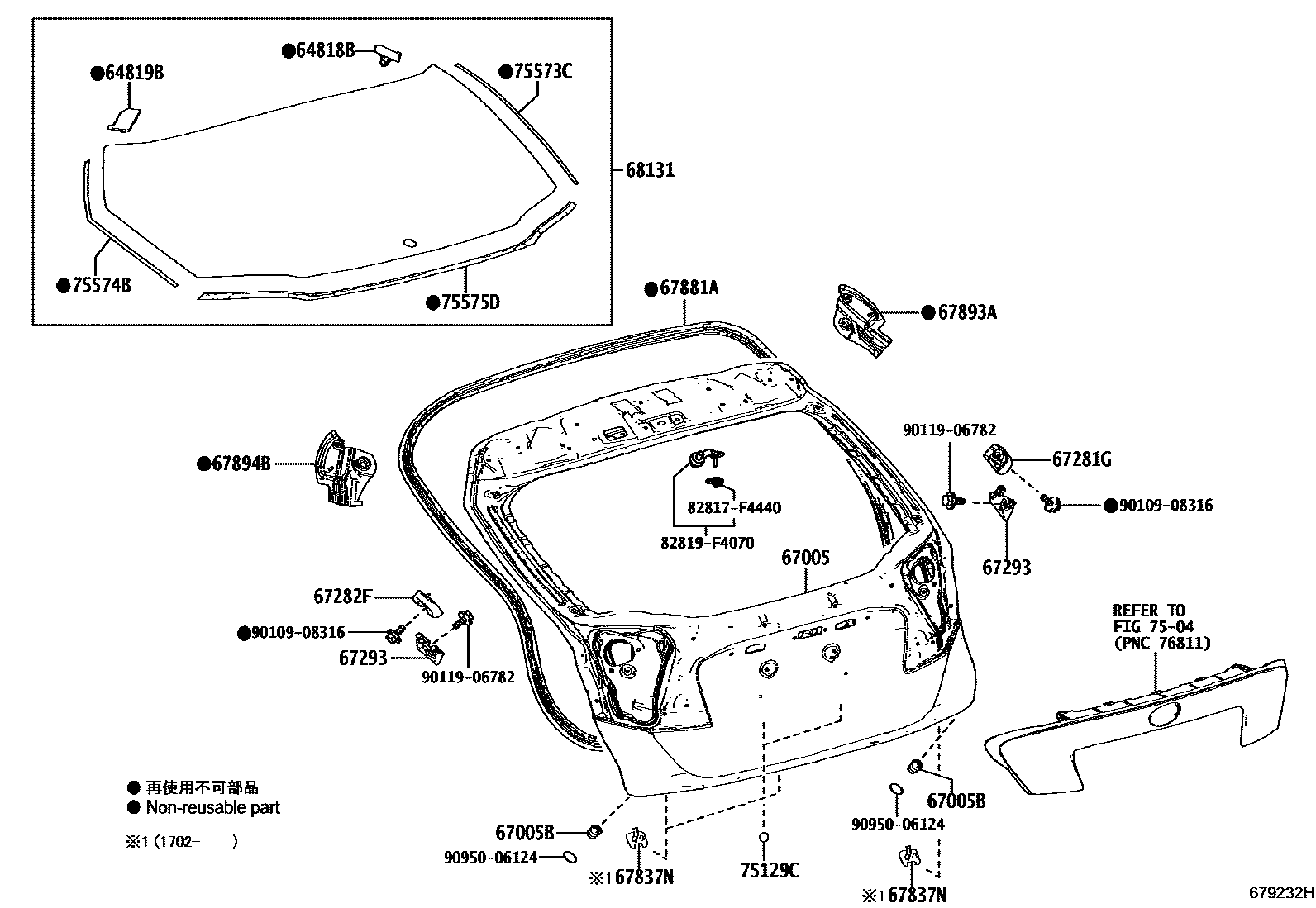

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-F4010iZGX10201702-202210

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-F4010iZGX10201702-202210

67005PANEL SUB-ASSY, BACK DOOR

main67005-F4030iZGX10201909-202210

main67005-F4070iZGX10201702-201909

sub67005-F4030

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iZGX10201702-202210

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-F4010iZGX10201702-202210

67282FSTOPPER, BACK DOOR, LWR LH

main67281-F4010iZGX10201702-202210

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-F4010iZGX10201702-202210

RH

main67294-F4010iZGX10201702-202210

LH

67837NSEAL, BACK DOOR DUST PROOF

main67837-F4070iZGX10201702-202210

67881AWEATHERSTRIP, BACK DOOR

main67881-F4010iZGX10201702-201703

sub67881-F4011

main67881-F4011iZGX10201703-202210

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-F4010iZGX10201702-202210

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-F4010iZGX10201702-202210

68131GLASS, BACK DOOR

main68105-F4011iZGX10201702-202210

7504

75129CCUSHION, REAR LICENCE PLATE

main75129-40010iZGX10201702-202210

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-F4010iZGX10201702-202210

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-F4010iZGX10201702-202210

75575DMOULDING, BACK WINDOW, LOWER

main75575-F4010iZGX10201702-202210

82817F4440PROTECTOR, WIRING HARNESS, NO.1

main82817-F4440

82819F4070GROMMET, WIRING HARNESS

main82819-F4070

9010908316

main90109-08316

9011906782

main90119-06782

9095006124

main90950-06124

22 parts on this diagram · 2 diagrams in section
