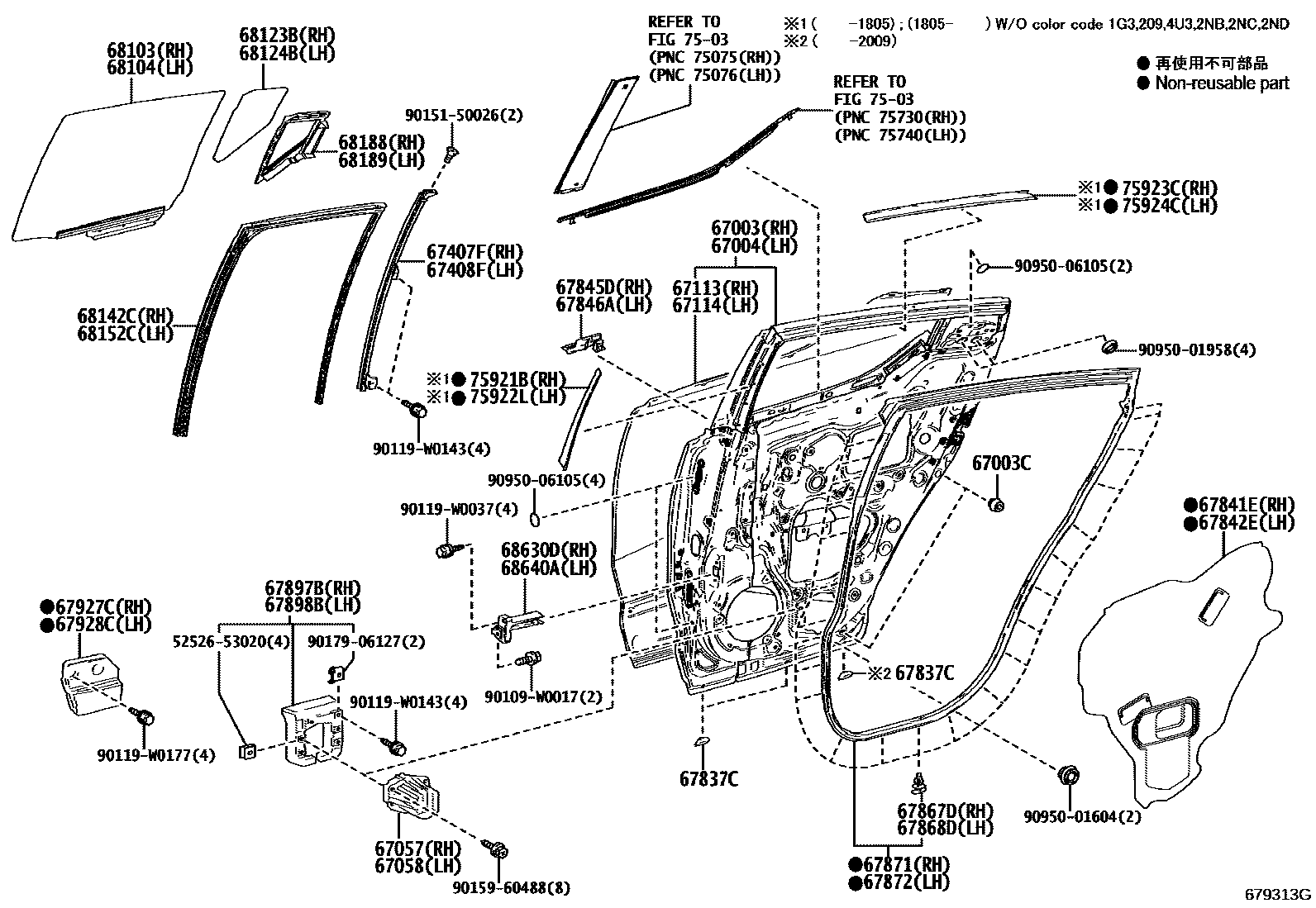

REAR DOOR PANEL & GLASS
67003CCUSHION, REAR DOOR PANEL
67057REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, RH
67058REINFORCE SUB-ASSY, REAR DOOR INSIDE PANEL, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75921BTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922LTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
75923CTAPE, BLACK OUT, NO.2 RH
0 OR 1PIECE,REF.ILL.
75924CTAPE, BLACK OUT, NO.2 LH
0 OR 1PIECE,REF.ILL.
5252653020RETAINER, FRONT BUMPER, LOWER SIDE
main52526-53020
90109W0017
main90109-W0017
90119W0037
main90119-W0037
90119W0143
main90119-W0143
90119W0177
main90119-W0177
9015150026
main90151-50026
9015960488
main90159-60488
9017906127
main90179-06127
9095001604
main90950-01604
9095001958
main90950-01958
9095006105
main90950-06105
48 parts on this diagram · 2 diagrams in section
