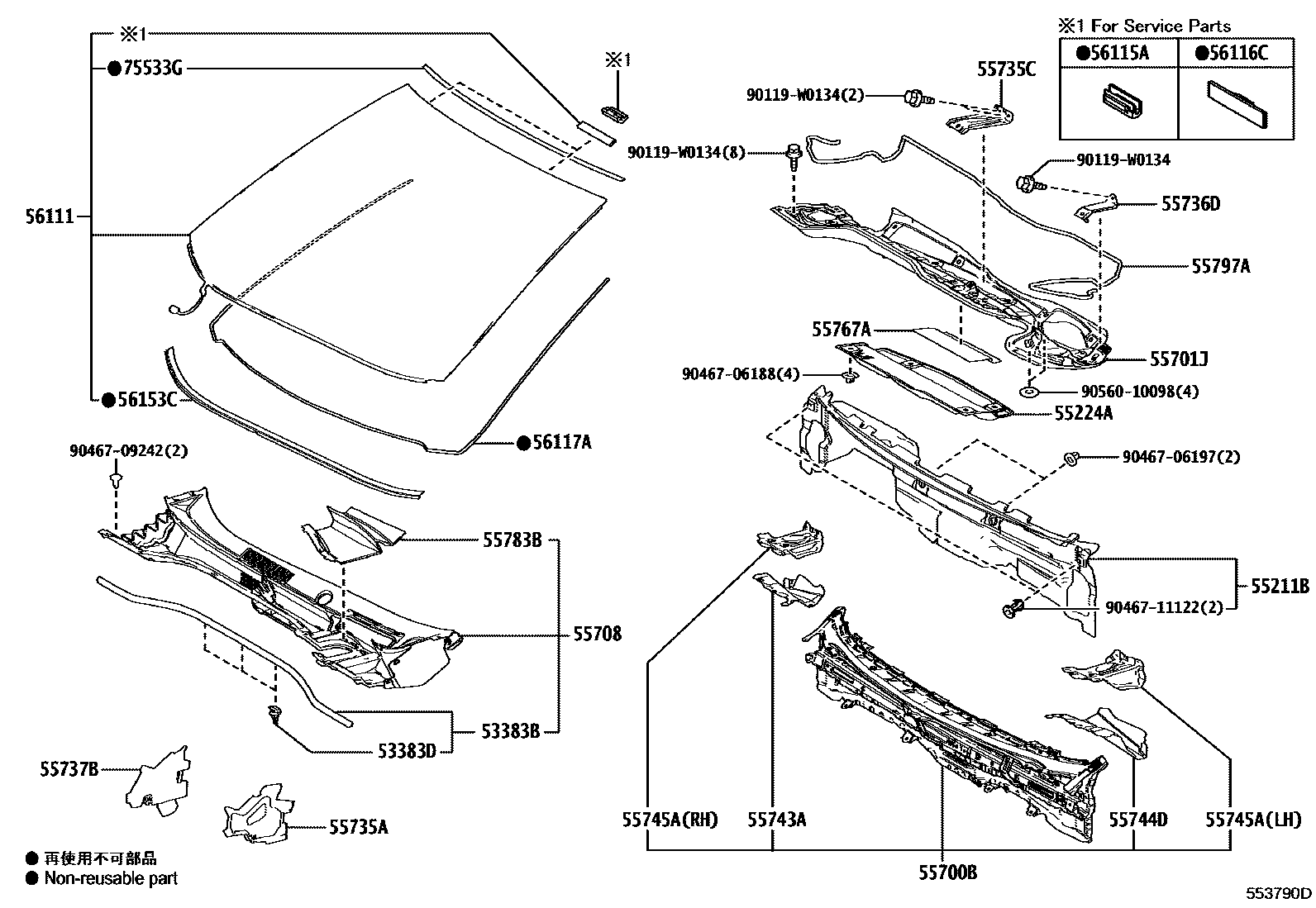

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55735APLATE, WATER GUARD, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745AREINFORCEMENT, COWL TOP, INNER
RH
LH
55767ASHEET, COWL TOP INSULATOR, NO.5
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2979
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
90119W0134
main90119-W0134
9046706188
main90467-06188
9046706197
main90467-06197
9046709242
main90467-09242
9046711122
main90467-11122
9056010098
main90560-10098
29 parts on this diagram · 1 diagram in section
